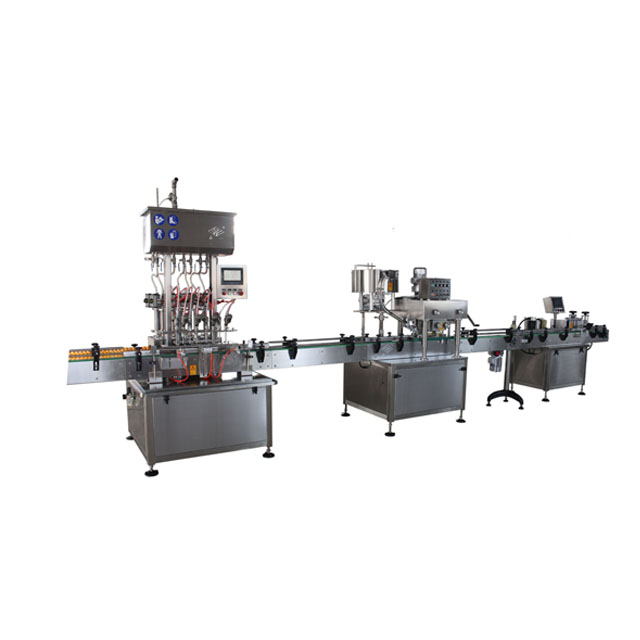

YQGZ-1000
YQ
Specifications:
1.Offer2/4/6/8 filling heads
2.Filling liquid
3.PLC control system
2.4.stainless steel

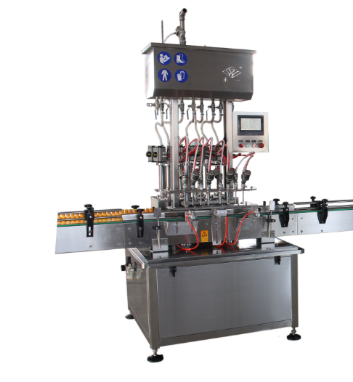

Description:
This machine is high-tech filling machine.It is an ideal equipment.It is suitable for the filling of various liquids, like washing liquids,detergent, oil, milk,juice,ect, widely used in food fields
Main performance and structure features:
1.Control system - with Mitsubishi PLC control system, filling dose of random tuning
2.Operation interface - colorful screen interface, human-machine interface is simple, safe and reliable
3.Feature Enhancements - Cutting with anti-drip device, it can dive to fill with materials. (This feature can be optional)
4.Electrical components - using internationally renowned brands to ensure the equipment is reliable and of high accuracy.
5.Mechanical components - the main parts is made of high quality stainless steel frame, contact part is made of stainless steel 316.
6.Extensions - can be customized for specific configuration requirements, such as: material sealed, heating, sterilization, etc..
7.Count testing - real-time count, reflecting on the work output directly.
8.Filling Detection - No bottle, or when bottle filling number is not enough, no filling
Technical Parameters:
| Applicable specifications | 100-1000ml |
| Production capacity | 1000-4000 bottles /hour(2/4/6/8 filling heads ) |
| Filling accuracy | ±1% |
| Capping rate | ≥99% |
| Power supply | 380V / 50Hz |
| Power | 2kW |
| Total dimension | 2500 * 900 * 2500MM |
Introduction:

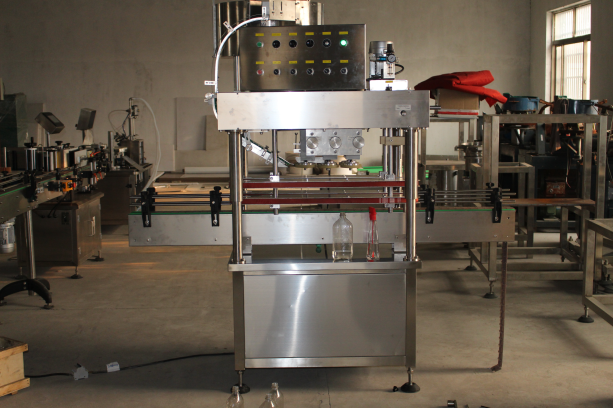

Our new Automatic Capping Machine lid-revolver style has been improved recently by our company. The machine’s
appearance is artistic and scholar. It's quick lid-revolving speed, high conformity rate makes it suitable for different bottle
shapes. The Lid-revolving is suitable for bottles and caps of the foodstuff, pharmacy, daily chemical industry, pesticide,
cosmetics, etc. The four units of speed-adjustable motors are separately used in lid-feeding, bottle-clamping, conveying and
lid-revolving, the machine has a high automation degree, good steadiness, convenient adjustment, changing bottle sizes or lid,
needn't any parts, only need some adjustments (for example, link with the lid-feeder, may automatically feed lids)
Features:
1. Capping speed up to 150 CPM
2. One button to adjust height
3. Wide applicability for various caps and bottles
4. Auto stop and alarm when lack of cap
5. Stainless steel frame
6. No-tool adjustment
7. Choice of various types of cap feeders
Characters:
This versatile in-line capper handles a wide range of containers at speed to 150bpm and offers a quick and easy change over
routine that maximizes production flexibility.
The tightening discs are gentle which will not damage caps but with an excellent capping performance.
1.Adopt agile module combination, new ideal design, suit to various bottle and cap-rotating.
2.Needn't change parts, easily adjust.
3.Easy operation and convenient for maintenance.
4. Capping system is consist of first rotating and re-rotating the degree of moment which can adjusted. Ensure that will be
tight. The screw capper has clutch to avoid the cap over-rotating.
5.Bottle nipping and annular belt structure, Good effect for some bottles erecting unsteadily.
6.Cap arranging part, conveying part, cap-rotating, belt for bottle, nipping, all of speed can be governing separately, which is
more utility.
7.Choosing automatic cap-sender and cap hopper
8.The plastic bottle cap sealing machine is designed according to requirements of GMP.
Advantages:
Fast speed capping
Single or production line adapted
Tight cap fix
Long run capability
Horizontal prodcution line
Bottle flexibility capping
Main technical parameters:
Production Capacity 30-150 bottles/min
lid sizes 15-70mm
bottle diameter Φ 35-140mm
bottle height 30-380mm
working air pressure 3-5kg/m3
contour sizes 2000*870*1500mm
Production Capacity 150 bottles/min
Specifications:
1.Easy operation, Easy printing.
2.High accuracy,high quality and high speed
3.Low price
Application:
Suitable for round objects.
Features:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
Characters:

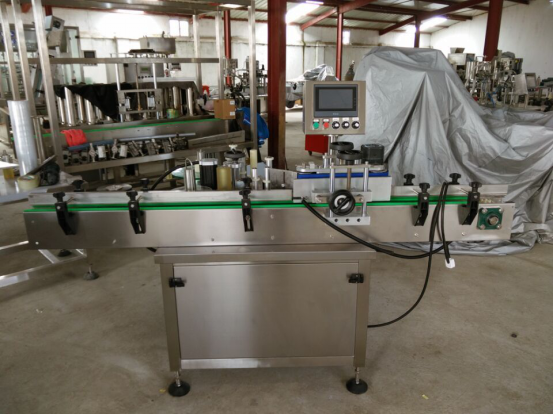

Automatic labeling machine, easy to operate, just turn the power switch one click operation on the entire device to enter production status of products are to be off the label> get items> induction start signal> a standard> label, on the whole production process to complete, simple, accurate and fast are the advantages of this product.
Main technical parameters:
| Operating direction | Left or Right |
| Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
| Production(bottle/min) | 60-150(according to the size of bottle and label) |
| Labeling Speed(m/min) | ≤40 |
| Label Specifications | adhesive sticker,transparent or opaque |
| The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
| The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
| The inner diameter of label roll | 76mm |
| The outer diameter of label roll | 350mm (max) |
| The power of motor(w) | 550W |
| Voltage | AC220V 50/60HZ Single phase |
| Size appearance(mm) | 2200(L) 700(W) 1270(H)mm |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
