Introduction:

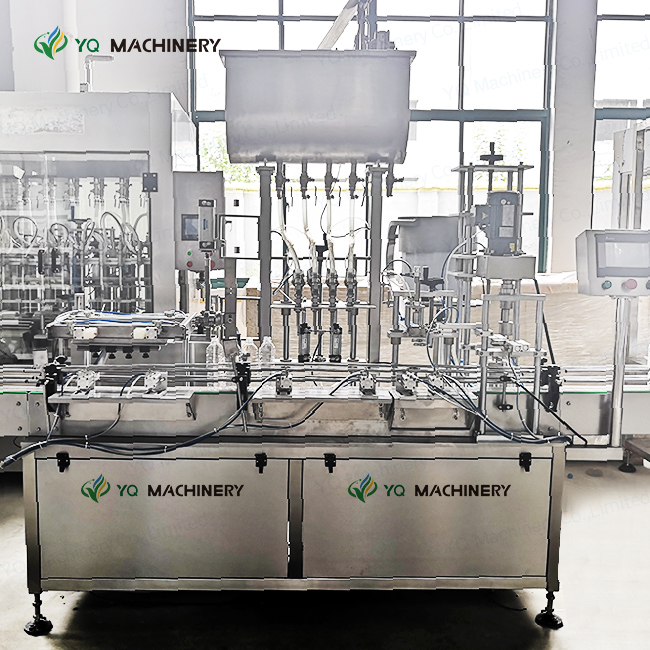

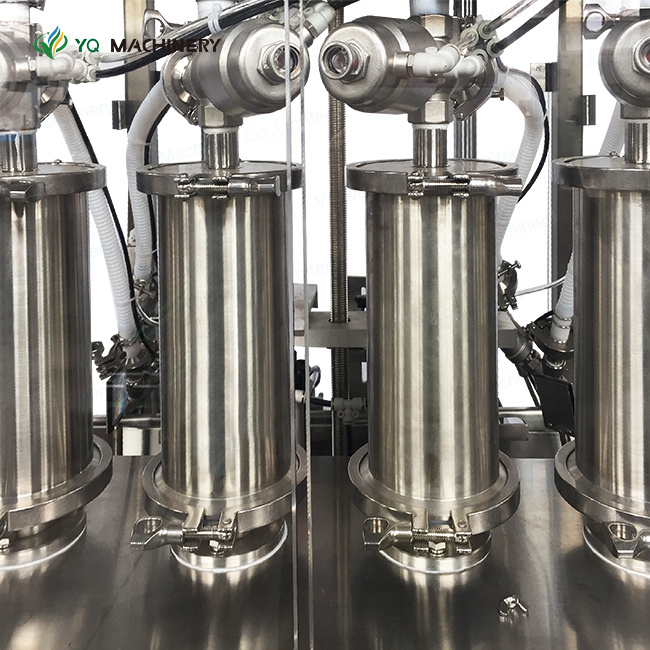

Our 4 Nozzles filling capping machine is suitable for thin or viscous products ,this machine manufactured for food and daliy chemical industries.The machine is designed to widely types of containers such as round and flat bottles.It adopts stainless steel piston metering pump.
Features:
1. Use servo filling system to ensure high accuracy.
2. Use PLC and touch screen control system, famous brand electronics.
3. Use Stainless Steel 304 or 316, GMP standard.
4. Replaceable filler head.
5. Accurate measurement, stable screwing and easy operation.
Indusry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy Chemical : shampoo, body wash, liquid detergent.
Technical Parametes:
Filling nozzle | 4 (can be customized to be 6/8/12) |
| Filling volume | 50-1000ml (can be customized) |
| Production capacity | 30-50 bottles/min ( Water as medium) |
| Filling accuracy | ≤±1% |
| Capping rate | ≥99% |
| Air supply | 1.5m3/h 0.4-0.7 MPA |
| Voltage | 1Ph. 220V, 50Hz |
| Power supply | 1.8KW |
| Machine net weight | 750kg |
| Machine dimension | 2200x1500x1900mm |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Introduction:
Our 4 Nozzles filling capping machine is suitable for thin or viscous products ,this machine manufactured for food and daliy chemical industries.The machine is designed to widely types of containers such as round and flat bottles.It adopts stainless steel piston metering pump.
Features:
1. Use servo filling system to ensure high accuracy.
2. Use PLC and touch screen control system, famous brand electronics.
3. Use Stainless Steel 304 or 316, GMP standard.
4. Replaceable filler head.
5. Accurate measurement, stable screwing and easy operation.
Indusry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy Chemical : shampoo, body wash, liquid detergent.
Technical Parametes:
Filling nozzle | 4 (can be customized to be 6/8/12) |
| Filling volume | 50-1000ml (can be customized) |
| Production capacity | 30-50 bottles/min ( Water as medium) |
| Filling accuracy | ≤±1% |
| Capping rate | ≥99% |
| Air supply | 1.5m3/h 0.4-0.7 MPA |
| Voltage | 1Ph. 220V, 50Hz |
| Power supply | 1.8KW |
| Machine net weight | 750kg |
| Machine dimension | 2200x1500x1900mm |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
