Introduction:
Essential oil bottle filling capping machine is applicable to different kinds of bottles, including plastic bottles, glass bottles, tubular bottles and electronic cigarettes dropper bottle, suitable for liquid, oil and various kinds of fluid filling with the range from 10 ml-120 ml.

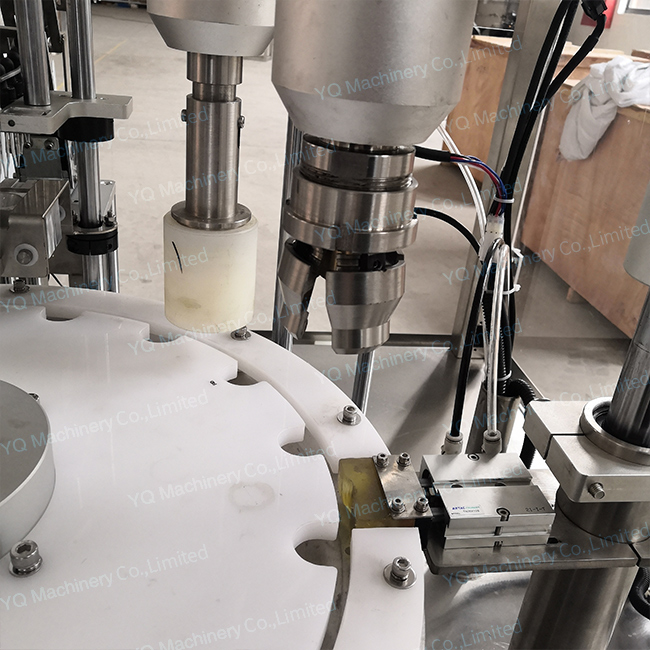

The 3 in 1 machine design of filling , cap placing and cap screwing not only shorten the process time but also saving the space in production area.
Features:
1.The speed of feeding turntable is adjustable according to requirements.
2.Entire star wheel can be replaced easily for different sizes of bottles.
3. Capping height can be adjusted by numeric hand wheel.
4. Pneumatic bottle positioning system for precise bottle position.
5. Microcomputer setting, PLC control, touch screen operation, it is high automated, easy to operate with stable performance.
6. Memory function makes it easy to save and load parameter settings, simple product conversion.

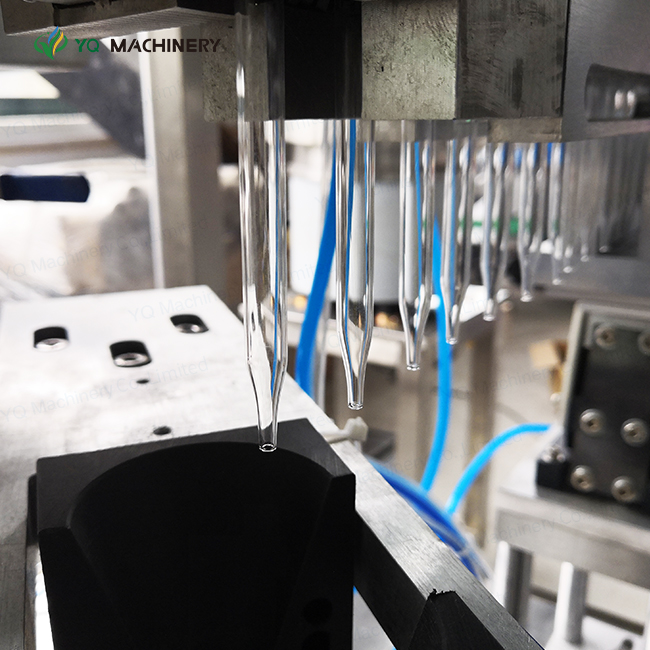

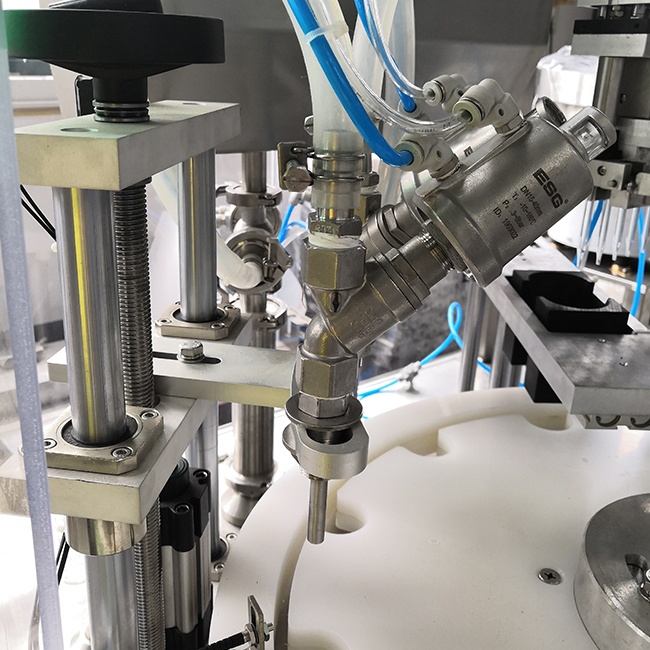

7. The filling nozzle is made of 304 or 316 stainless steel and equipped with a special ball valve to prevent liquid dripping.
Indusry Applications:
E-liquid Bottle, Nail Polish, Vial Bottle, Essential Oil Bottle
Technical Parameters:
Applicable specifications | 10-120ml |
| Production capacity | 25-35 bottle /min |
| Filling accuracy | ±1% |
| Capping rate | ≥99% |
| Power supply | 220V / 50Hz 60Hz |
| Power | 2kW |
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Introduction:
Essential oil bottle filling capping machine is applicable to different kinds of bottles, including plastic bottles, glass bottles, tubular bottles and electronic cigarettes dropper bottle, suitable for liquid, oil and various kinds of fluid filling with the range from 10 ml-120 ml.
The 3 in 1 machine design of filling , cap placing and cap screwing not only shorten the process time but also saving the space in production area.
Features:
1.The speed of feeding turntable is adjustable according to requirements.
2.Entire star wheel can be replaced easily for different sizes of bottles.
3. Capping height can be adjusted by numeric hand wheel.
4. Pneumatic bottle positioning system for precise bottle position.
5. Microcomputer setting, PLC control, touch screen operation, it is high automated, easy to operate with stable performance.
6. Memory function makes it easy to save and load parameter settings, simple product conversion.
7. The filling nozzle is made of 304 or 316 stainless steel and equipped with a special ball valve to prevent liquid dripping.
Indusry Applications:
E-liquid Bottle, Nail Polish, Vial Bottle, Essential Oil Bottle
Technical Parameters:
Applicable specifications | 10-120ml |
| Production capacity | 25-35 bottle /min |
| Filling accuracy | ±1% |
| Capping rate | ≥99% |
| Power supply | 220V / 50Hz 60Hz |
| Power | 2kW |
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
