Features of vertical packaging machine
a. Equipped with security protection, in line with corporate security management requirements;
b. Intelligent temperature controller is adopted for accurate temperature control; the seal is beautiful and flat;
c.Adopt PLC servo system, pneumatic control system and display touch screen to form the drive control core;
d. Improve the control accuracy, reliability and intelligence of the whole machine;
e. The pouch packaging machine and measurement configuration can automatically complete the entire packaging process of measurement, feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, and automatically complete the counting;
f. The touch screen can store a variety of packaging process parameters of different products, which can be used at any time when changing products without resetting;
g. A fault display system is provided to help troubleshoot in a timely manner;
h. Pillow bags can be made according to customer needs
i. There are all stainless steel models and carbon steel spray models;
j. Single-belt transport film, fast and stable, low friction, low loss;
k. There are stainless steel models and carbon steel models.
VFFS packing machine production process:
Turn on the power and set the temperature to constant temperature → set parameters (bag size and packaging weight) → manually load to the storage hopper to vibrate and load to the lifting conveyor → the lifter starts to convey the material → electronic combination weighing → code printing → Bag making → Filling material → Inflatable → Sealed bag → Cut-off → Finished packaging output
1.20*1.3L weighting machine
Main performance and structural features:
1. Packing Range:10-100g
2. Single bucket volume：1.3 L
3. Packing accuracy：±0.1-1.0g
4. Packing Speed：90-100 bags/min
5. Drive method: Stepping motor
6. Power : 220V/50HZ 2000W
7.Surface: Mirror
2.Stainless steel Z-type Elevator
Technical Parameters：
Hopper food grade PP
Such as the replacement of carbon steel equipment cheaper
(Including silo vibration)
1.Lifting capacity： 7200L/h
2. Single bucket volume：1.8 L
3. Power Supply: 3 phase 380V,50-60 Hz 750W
3.Stainless steel working platform
Technical Parameters：
Machine Size :2200*2200*1800mm
Material: SS304
4.Vertical Packing Machine
The machine can combine with weighing system, such as :
1.multi-head weigher device (granule)
2.measuring cups(granule)
3.auger filler device(powder)
4.piston filling device(liquid,paste)
5.feeding conveyor device
The machine suitable to use in packing many kinds material which the shape is powder ,liquid , granule, bar, roll ,slice .such as :rice sugar, chocolate, nuts, potato chips, shrimp, dumplings, candy, flour, milk powder, fruit jam ,Shampoo ,shower gel ,skin lotion, small wares etc.
Technical Parameters：
Type | 420Model | 520Model | 620Model |
Bag length | 80-300mm(L) | 80-350mm(L) | 100-450mm(L) |
| Bag width | 60-200mm(W) | 80-250mm(W) | 100-300mm(W) |
Max width of roll film | 420mm | 520mm | 620mm |
Packing speed | 5-60bags/min | 15-70bags/min | 25-80bags/min |
Air consumption | 0.65mpa | 0.65mpa | 0.65mpa |
Gas consumption | 0.3m⊃3;/min | 0.3m⊃3;/min | 0.3m⊃3;/min |
Power voltage | 220V | 220V | 220V |
Power | 2.2KW | 3KW | 3.4KW |
Dimension | (L)1320mm×(W)950mm×(H)1360mm | (L)1350mm×(W)1000mm×(H)1380mm | (L)1380mm×(W)1050mm×(H)1400mm |
| weight of machine | 540Kg | 580kg | 600kg |
5.Stainless steel product conveyor ( Net belt type )
Technical Parameters：
Machine Speed :100bag/min
Power:220V/50HZ,60w
Width: 300mm
Weight: 60kg
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Features of vertical packaging machine
a. Equipped with security protection, in line with corporate security management requirements;
b. Intelligent temperature controller is adopted for accurate temperature control; the seal is beautiful and flat;
c.Adopt PLC servo system, pneumatic control system and display touch screen to form the drive control core;
d. Improve the control accuracy, reliability and intelligence of the whole machine;
e. The pouch packaging machine and measurement configuration can automatically complete the entire packaging process of measurement, feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, and automatically complete the counting;
f. The touch screen can store a variety of packaging process parameters of different products, which can be used at any time when changing products without resetting;
g. A fault display system is provided to help troubleshoot in a timely manner;
h. Pillow bags can be made according to customer needs
i. There are all stainless steel models and carbon steel spray models;
j. Single-belt transport film, fast and stable, low friction, low loss;
k. There are stainless steel models and carbon steel models.
VFFS packing machine production process:
Turn on the power and set the temperature to constant temperature → set parameters (bag size and packaging weight) → manually load to the storage hopper to vibrate and load to the lifting conveyor → the lifter starts to convey the material → electronic combination weighing → code printing → Bag making → Filling material → Inflatable → Sealed bag → Cut-off → Finished packaging output
1.20*1.3L weighting machine
Main performance and structural features:
1. Packing Range:10-100g
2. Single bucket volume：1.3 L
3. Packing accuracy：±0.1-1.0g
4. Packing Speed：90-100 bags/min
5. Drive method: Stepping motor
6. Power : 220V/50HZ 2000W
7.Surface: Mirror
2.Stainless steel Z-type Elevator
Technical Parameters：
Hopper food grade PP
Such as the replacement of carbon steel equipment cheaper
(Including silo vibration)
1.Lifting capacity： 7200L/h
2. Single bucket volume：1.8 L
3. Power Supply: 3 phase 380V,50-60 Hz 750W
3.Stainless steel working platform
Technical Parameters：
Machine Size :2200*2200*1800mm
Material: SS304

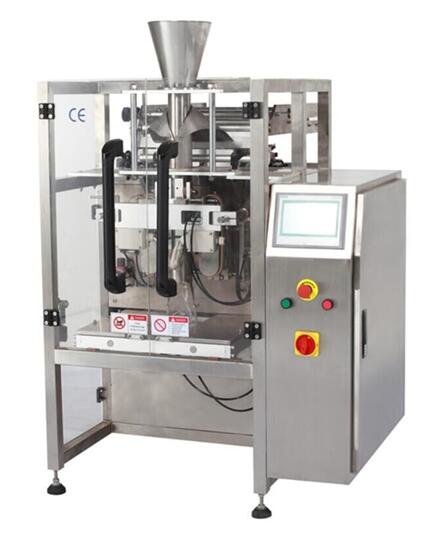

4.Vertical Packing Machine
The machine can combine with weighing system, such as :
1.multi-head weigher device (granule)
2.measuring cups(granule)
3.auger filler device(powder)
4.piston filling device(liquid,paste)
5.feeding conveyor device
The machine suitable to use in packing many kinds material which the shape is powder ,liquid , granule, bar, roll ,slice .such as :rice sugar, chocolate, nuts, potato chips, shrimp, dumplings, candy, flour, milk powder, fruit jam ,Shampoo ,shower gel ,skin lotion, small wares etc.
Technical Parameters：
Type | 420Model | 520Model | 620Model |
Bag length | 80-300mm(L) | 80-350mm(L) | 100-450mm(L) |
| Bag width | 60-200mm(W) | 80-250mm(W) | 100-300mm(W) |
Max width of roll film | 420mm | 520mm | 620mm |
Packing speed | 5-60bags/min | 15-70bags/min | 25-80bags/min |
Air consumption | 0.65mpa | 0.65mpa | 0.65mpa |
Gas consumption | 0.3m⊃3;/min | 0.3m⊃3;/min | 0.3m⊃3;/min |
Power voltage | 220V | 220V | 220V |
Power | 2.2KW | 3KW | 3.4KW |
Dimension | (L)1320mm×(W)950mm×(H)1360mm | (L)1350mm×(W)1000mm×(H)1380mm | (L)1380mm×(W)1050mm×(H)1400mm |
| weight of machine | 540Kg | 580kg | 600kg |

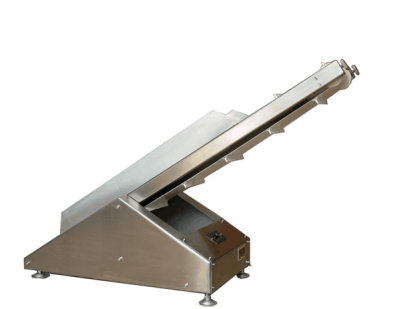

5.Stainless steel product conveyor ( Net belt type )
Technical Parameters：
Machine Speed :100bag/min
Power:220V/50HZ,60w
Width: 300mm
Weight: 60kg
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
