Introduction:

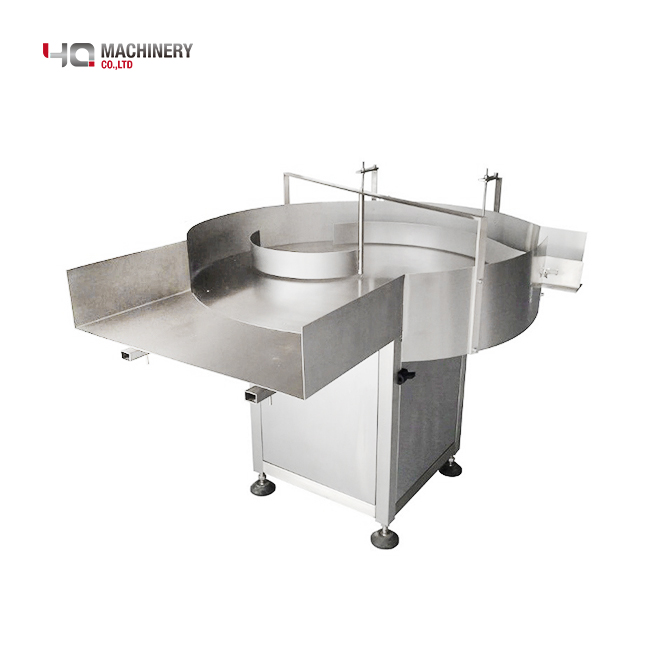

It is suitable for the automatic separation and transmission of round bottles,square or different shape bottles. It is compatible with plastic bottles and glass bottles.This bottle feeder can be connected to the filling machine,capping machine and labeling machine. Bottle turntable can be applied to the intermediate connection of the assembly line as a buffer platform to reduce the length of the conveyor belt.
Applicable bottle diameter can be adjusted freely, compatible with glass bottle, plastic bottle, bottle conveying speed is 20 ~ 100 bottles / min, the speed can be adjusted steplessly, which is convenient for production arrangement.
Working Principle:

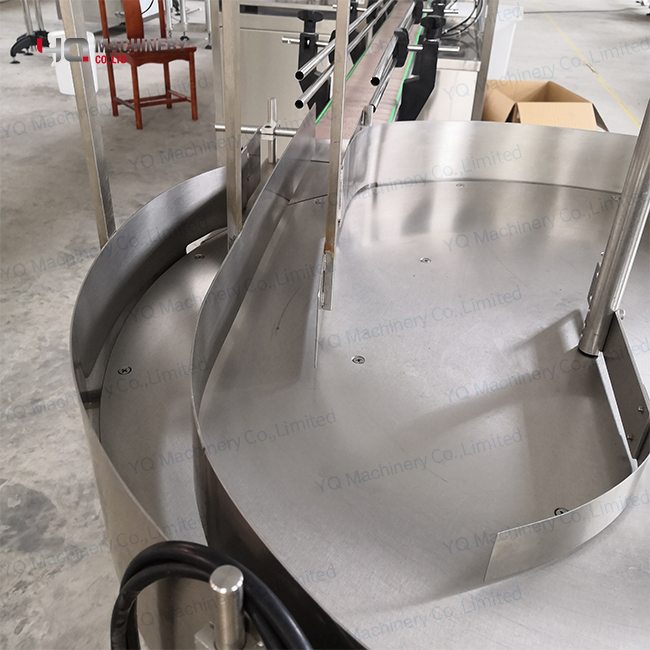

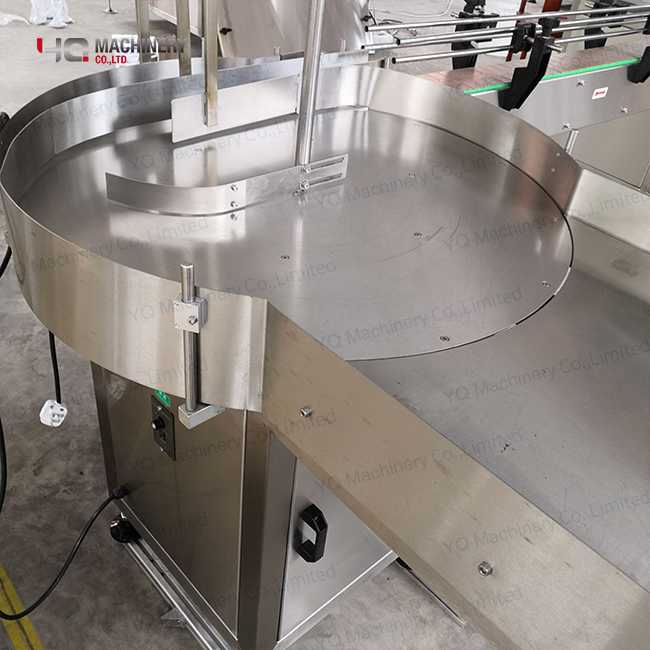

The bottle feeding machine drives the product to automatically rotate, and the product is close to the edge of the turntable under the fluctuation of the dial plate, and the product is led out along the bottle sorting slot in an orderly manner.
Features:
All-in-one versatility： Different table diameters with variable speed control.

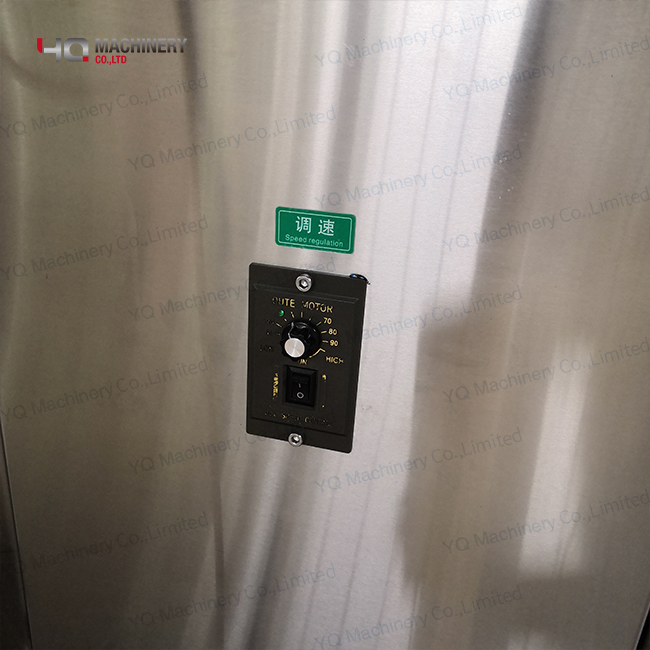

AC variable speed drive: speed can be adjusted precisely.
Two-way control: Allows turntables to transport or collect products in the packaging line.
Durable structure: The stainless steel SUS 304 structure means that the unit can handle the harshest environments.
Height adjustable feet: Allows the turntable to match the conveyor height for a seamless transition. They are also vibration-resistant and can run smoothly.
Industry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy Chemical:shampoo,body wash,liquid detergent.
Technical Parameters：
Applicable specifications | 10-2000 ml |
| Bottle diameter | 10-80 mm |
| Bottle height | 85-300 mm |
| Production capacity | 30-120 BPM (speed adjustable) |
| Voltage | 110v/220v;50hz/60hz |
| Power | 0.5 kw |
| Weight | 95kg |
| Machine size | 1000*800*1000mm |
| Stainless steel | SUS304 material |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
