Application:

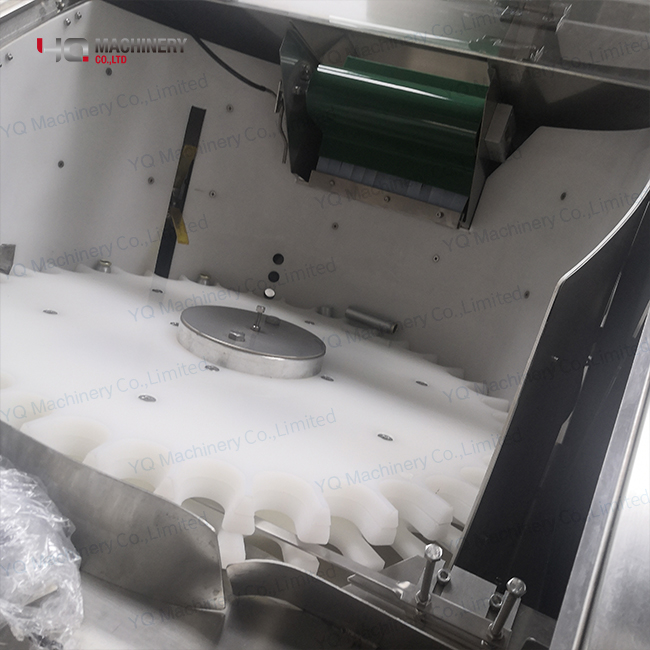

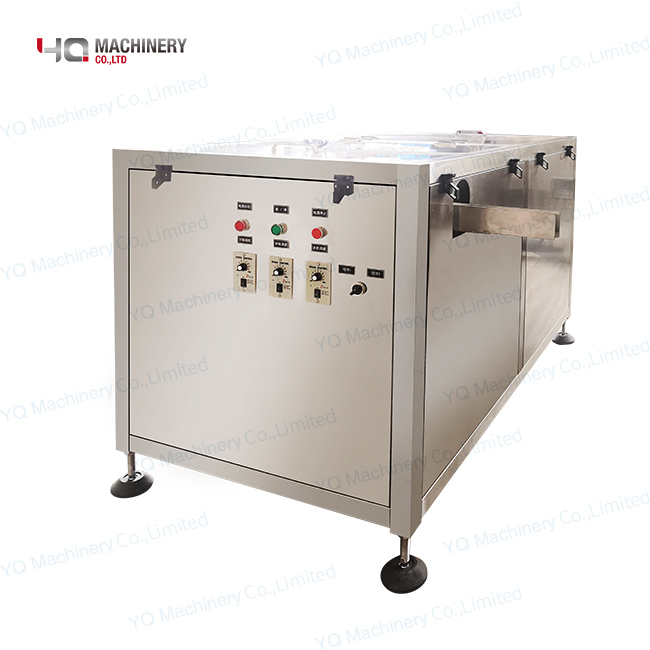

Automatic empty bottles unscrambler is special designed for plastic empty bottles. empty bottles will be sent to the storage tank, then the bottles are put in order automatically and mouth upward into the production line. It adopts advanced overload safety production devices. This machine is used in pharmaceutical factory, health care products. the suitable bottles include round bottles, special shaped bottles.
Structure and features:
Adopt PLC control,it will stop automatic when the bottles is enough.
It will correct the bottle direction automtically.
It have a large space for store bottles.

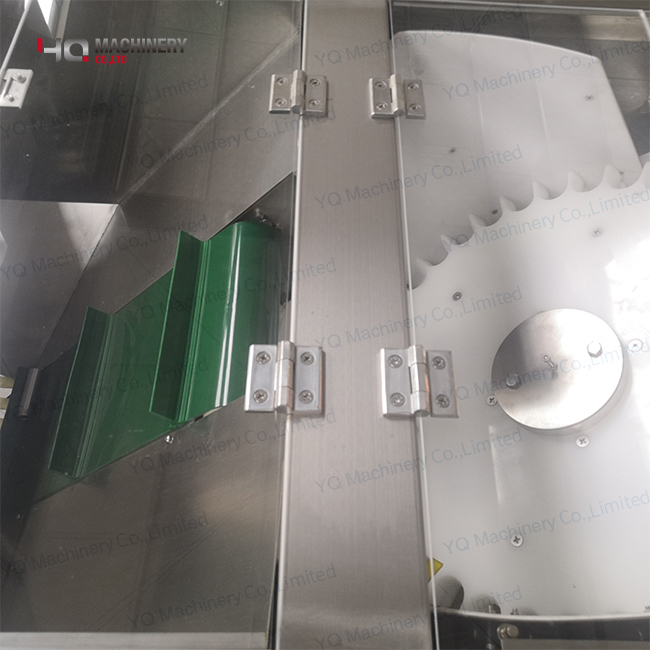

Equipped with bottle lifter.
Main technical parameters:
| Production speed | 30-120bottles/min |
| Voltage | AC220 single phase /50Hz |
| Power | 0.3kw |
| Weight | 220kg |
| Machine dimension | 1800*850*1000MM |
Electrical Appliances Configuration:
NO. | Name | Quantity | Brand | Type | Made in |
1 | Circuit Breaker 1 | 1 | Schneider | IC65N 2P C16 | France |
2 | Intermediate Relay | 3 | Schneider | RXM2LB2P7+Base | France |
3 | AC Contactor | 1 | Schneider | LC1E1210M5N | France |
4 | PLC | 1 | Xinjie | XC1-10R-E | Taiwan |
5 | Power Switch | 1 | MeanWell | HDR-30-24 | Taiwan |
6 | Indicator Light（Red） | 1 | Schneider | XB2BVM4LC | France |
7 | Normal Button（Red） | 1 | Schneider | XB2-BA42C | France |
8 | Button with Light（Green） | 1 | Schneider | XB2-BW33B1C（24V ) | France |
9 | Photoelectric Switch | 2 | Autonics | BR100-DDT | South Korea |
10 | Proximity Switch | 1 | Autonics | PR12-4DN | South Korea |
How to adjust bottle unscrambler
Bottle unscrambler machine commisioning video for different size of plastic bottle

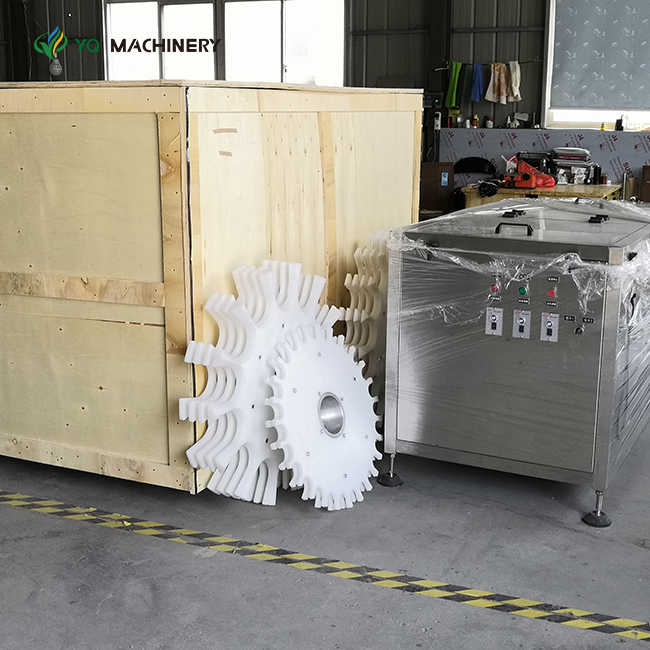

About packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
