YQZH-50

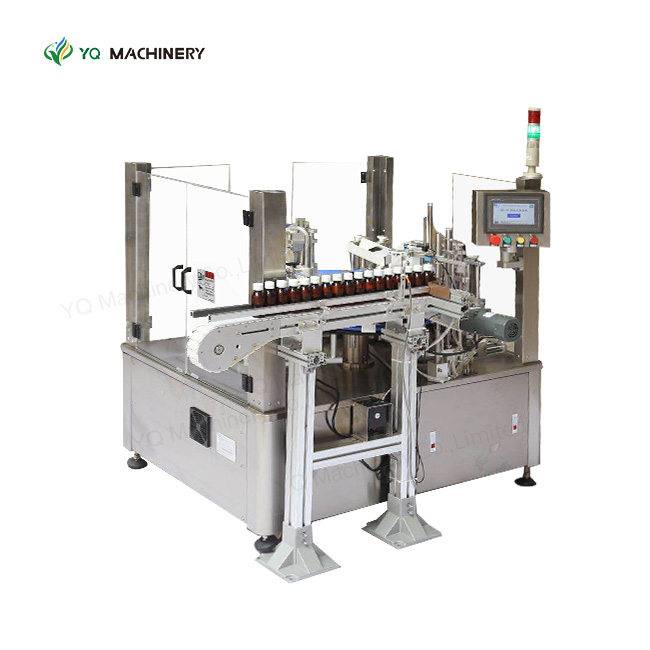

Feature of automatic cartoner machine:
1. It is specially design to pack small quantities multi size box.
2. With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.
3.304 stainless steel case
4. Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters.
Options of bottle cartooning machine:
a.Leaflet Inserting ,
b. Hot Glue
c.Hot Ribbon Date Code
d.Embossed date Code
Packing Process of cartooning machinery:
1 Push box into star wheel.
2 Fold box lower small flap.
3 Press both lower big flaps.
4 Flatten both big flaps.
5 Product fall into box.
6 Fold box upper small flap.
7 Press both upper big flaps.
8 Flatten both big flaps.
9 Product push out.
Specification of vertical cartoner
| Model No. | YQZH-50 |
| Production speed: | 20-50box per min |
| Paper box's largest size | 200 x 80 x 80mm |
| Paper box's smallest size | 60 x 20 x 20 mm |
| Paper quality of carton | 250-350g/m3 |
| Motor horsepower | 1/4HP 15:1 |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 150L/min |
| Machine measurement | L 1100 x W 1500 x H 1900 mm |
| Machine weight | 250Kg |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
