YQDF-101
YQ
Application:
Used in the pharmaceutical industry, food industry, cosmetics, agriculture and other industries, such as fruit and vegetable drinks, soy milk, acetone, glutaraldehyde, shampoo, etc.
Advantage:

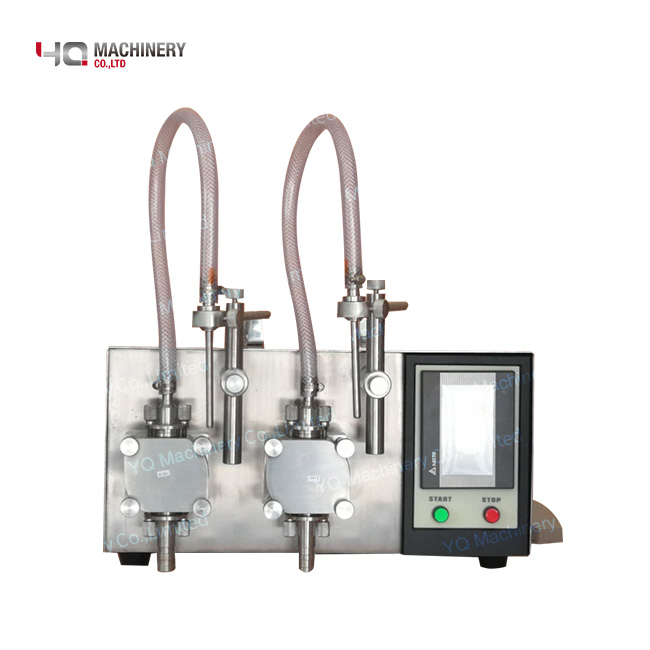

1. The Digital Filling Machine uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers,
2. The volume, speed can be set according to your requirement.
3. Each filling can be fast first and slow later, bubble can be eliminated.
4. Touch screen is adopted using a combined keypad and LCD display configuration.
5. 20 sizes data can be stored.
6. Pump unit easily Disassembly for cleaning.
Technical Parameter
Model | YQDF-101 |
Suitable products | Liquid/Oil/Cream/Lotion/Shampoo etc |
Filling Volume | 10ml-10000ml |
Filling Accuracy | ±0.5-1% |
Filling Speed | 10-25 bottles per minute (100ml 25b/min 300ml 16b/min 1000ml 10b/min) |
Power | 1kw |
Air | 0.4-0.6 Mpa |
Voltage | 110/220V 50/60HZ single phase/three phases |
Weight | 35KGS |
Dimension | 500*380*280mm(L*W*H) |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
