Applications of gear pump bottle filler:
Mainly used in the pharmaceutical industry, food industry, cosmetics, agriculture, etc. For example, vegetable and beverage, soy milk, acetone, glutaraldehyde, shampoo and other liquid irrigation
Advantages of inline filling systems:
1. Large filling range: single filling 10-10000ml can be set freely, suitable for manufacturers with a wide range of products
2. High precision gear pump: fast filling speed, high filling accuracy, filling accuracy is ± 0.5%
3. The gear pump body is made of stainless steel 304. It is suitable for filling with various liquids and meets the sanitary requirements of food and medicine.
4. Gear pump design can be disassembled and cleaned without tools, convenient, fast and hygienic
5. The design of the whole gear pump filling machinery is beautiful and compact, occupying a small space and easy to move

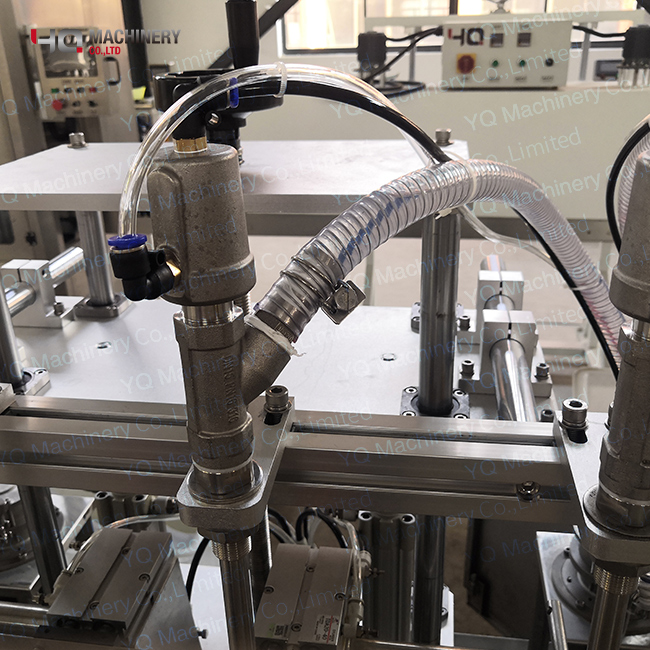

6. This gear pump filling equipment is suitable for filling of various liquids. Pneumatic nozzle assembly can be selected according to the characteristics of the liquid.
7. The machine adopts dual speed filling, which can be fast first and then slow to eliminate the problem of foam overflow during the filling process.

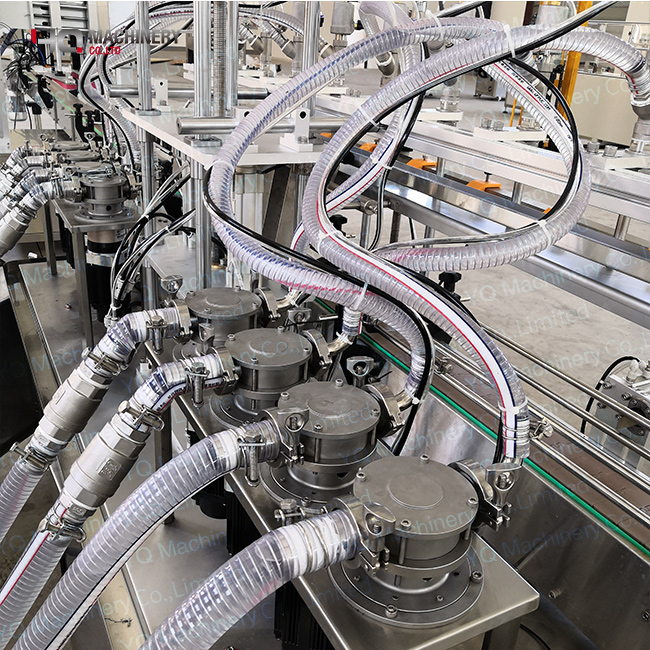

Features of gear pump metering:
1.Using the principle of gear pump, the microcomputer controls the measurement and speed, and fills the liquid into the container. The measurement is accurate and suitable for various liquids.
2. Filling volume, speed and filling interval can be set on the control panel
3.The first filling can be set to fast first and then slow to eliminate foaming during filling
4.The control panel is sealed and waterproof, and parameters can be set at the touch of a button. The LCD screen can monitor production parameters and operating status in real time.
5.20 sets of product parameters can be pre-set to facilitate adjustment of filling specifications and filling quantity at any time
6.Pump body is exquisitely designed without tools, easy to disassemble and easy to clean
7.Can be connected to the conveyor, one conveyor can be equipped with up to 8 filling machines

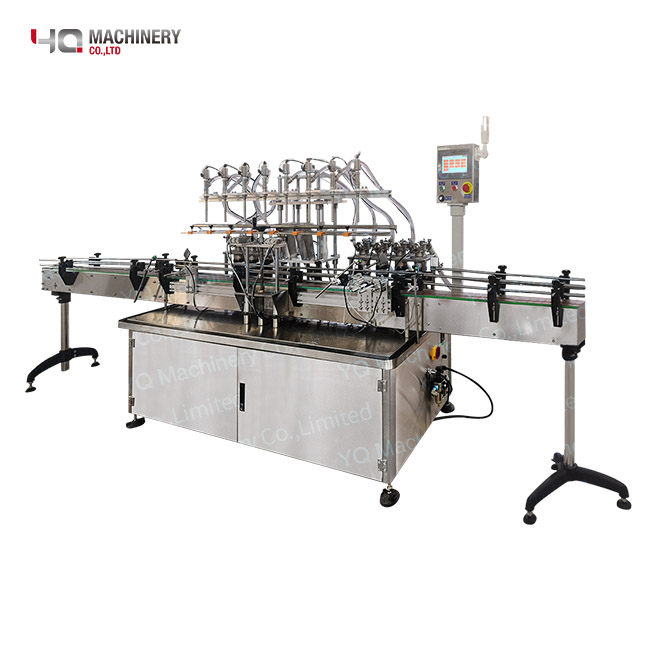

Specifications of filling machine:
| Product model | YQLF-100 |
| Filling type | gear pump |
| Filling range | 10ml-11000ml |
| Filling speed | 100ml 24P / min .; 300ml 16P / min .; 1000ml 10P / min (single head) |
| Filling accuracy | ± 0.5-1.0% |
| Power supply | AC220V; 50Hz; 1P; 4KW |
| Standard | 8mm diameter nozzle (optional pneumatic nozzle; product model: YQLF-100QS) |
| Machine diameter | 2000x900x1600mm |
| Pump body material: | Standard stainless steel 304 material, optional material: SS316 |
Note: The standard sealing ring of this machine is silica gel, which needs to be corrosion resistant and can be replaced with fluorine rubber
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
