YQF-G1000
YQ

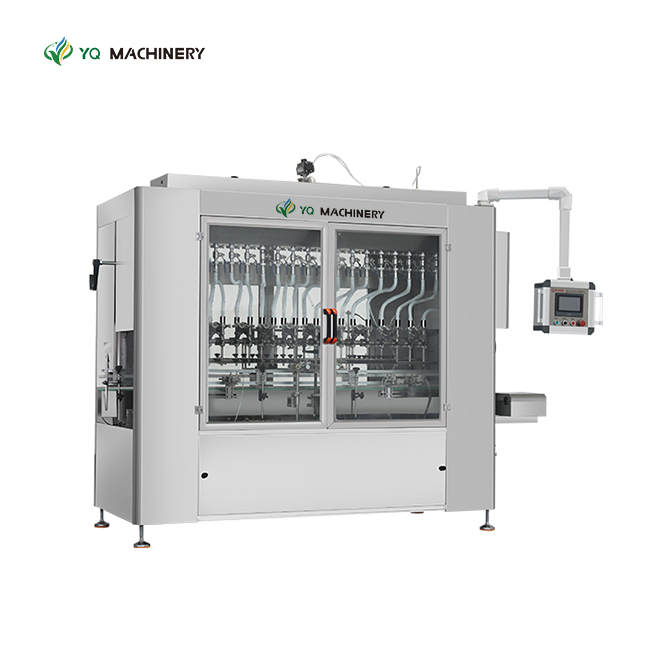

Introduction of gravity filler:
The automatic linear overflow filling machine adopts PLC automatic control system, compact structure. It is safe and reliable, simple operation, high accurate and convenient measurement adjustment. All parts in contact with liquid parts are made of stainless steel. The surface is polished, the appearance is beautiful, and it meets the requirements of GMP standard. It can be widely used in the filling of non-viscosity and low-viscosity liquids in food, daily chemical, pesticide and pharmaceutical fields. This filler machine has a wide selection of bottle types. It is simple and convenient to operate and change the bottle type. It has the advantages of no bottle without filling and counting of the number of filling.
Filling Machinery Advantage:
1. It is suitable for the filling of low viscosity liquid. It can switch the filling specifications within a few minutes. No need to add spare parts, just make adjustments to complete.
2. Choose the filling quantity according to the actual production capacity and determine the number of free filling heads.
3. The liquid filler frame is made of high-quality SUS304 stainless steel, and the materials passing through are made of high-quality 316 stainless steel.

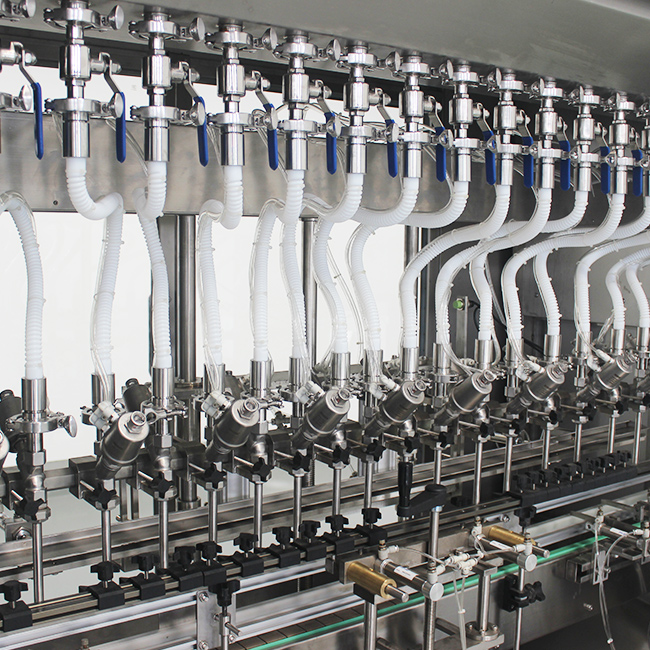

4. The filling machines adopt quick-install joints, which is convenient and quick to disassemble and convenient to maintain and maintain, which greatly reduces the cost of equipment and equipment maintenance and shortens the maintenance time of the customer.
5. Touch color screen operation, can display production status, operation procedures, canning methods, etc. The screen is intuitive, easy to operate and easy to maintain.
Technical Parameters:
| Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
|---|---|---|---|---|---|---|---|---|
| YQF-G20D | 20 | round barrel: height:80-280mm diameter:Φ40-100mm drum: length:80-120mm width:40-80mm height:80-280mm | 200ml：≤8000 | 500-1000 ml:±3ml 100-500ml: ±2ml ≤100m:≤1ml | 2400*1100*2200 | 1.5Kw | 220/380V 50/60HZ | 0.6MPa |
| YQF-G16D | 16 | 200ml：≤6000 | 2000*1100*2200 | 1.5Kw | ||||
| YQF-G12D | 12 | 200ml：≤5000 | 2000*1100*2200 | 1.0Kw | ||||
| YQF-G8D | 8 | 200ml：≤3000 | 1800*1100*2200 | 1.0Kw | ||||
| YQF-G6D | 6 | 200ml：≤2000 | 1600*1100*2200 | 1.0Kw |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
