YQU-200
YQ
Application:

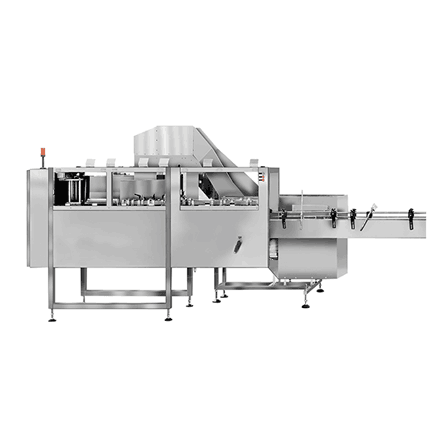

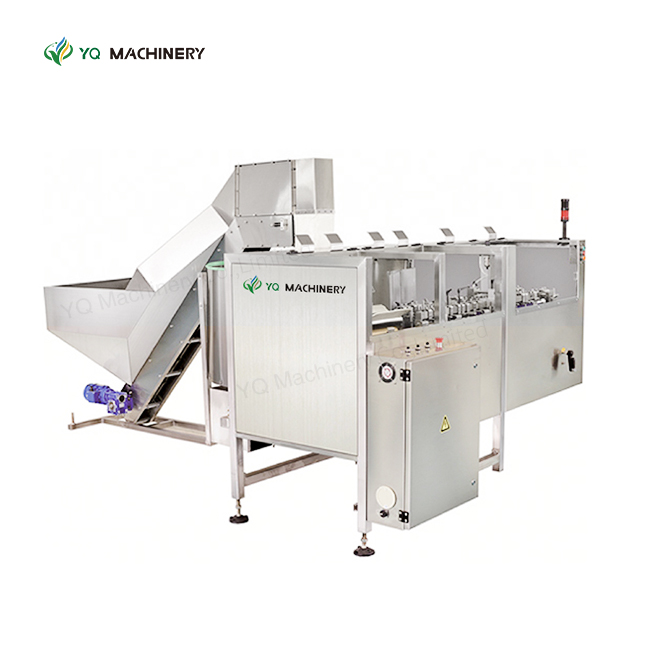

The machine is composed of empty bottle elevator, main machine and conveyor. PLC is used to organically combine all transmission mechanisms to form a whole. The set data can be modified through touch screen to meet the needs of different customers for the speed of the machine. As long as the rotary table in the cylinder is added or subtracted, other parts can be adjusted freely. The whole machine is made according to GMP standard, using 304 stainless steel and aluminum alloy as the main manufacturing materials. It is beautiful and elegant as a whole, with high working efficiency, and can adapt to different environments. The transmission part of the machine has transparent protective cover, which is safe and environmental protection.
Working Process:
Putting bottles into the hopper manually;Conveying by elevator;Turntable (Bottles will be conveyed out horizontally according to the size of turntable slot;Synchronous transfer 1;Synchronous transfer 2 (there is differential between S2 and S belt);Driving lever (making bottles out with bottom ahead);Synchronous belt 3 (making bottles us by the function of differential)
Major Characteristics

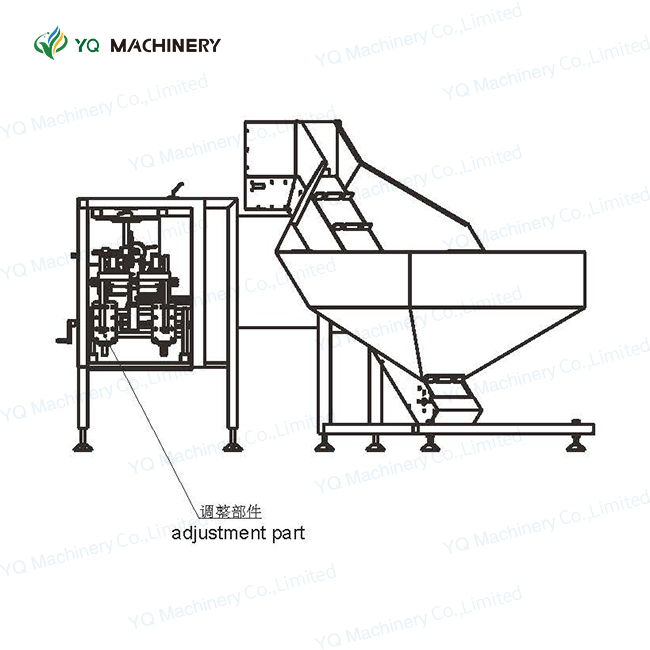

This machine is controlled by PLC, touch screen, all motors achieve frequency control, you can alter the set figure on touch screen. It meets cutomers' demands.You can change the specification by adjusting the turntable of the unscramble box. The machine is mainly made of SUS304 stainless steel and aluminum alloy. It meets GMP standard.With elegant appearance and high efficiency, it adapts to different conditions. Driving parts are the protected by guard cover, safe and eco-friendly.
Main performance parameter
| Production capacity | 50ml-200ml ; ≤9000b/h |
| 800ml ; ≤6000b/h | |
| 1000ml ; ≤48000b/h | |
| Diameter of bottle | 30-100mm (can be customized according to requirement) |
| Bottle Height | 100-300mm(can be customized according to requirement) |
| Power supply | AC380V; 50HZ |
| Main Power | 2.2kw |
| External Dimension(L*W*H) | 4500mm*2050mm*2500mm |
| Weight | 1500kg |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
