YQF-Z1000
YQ

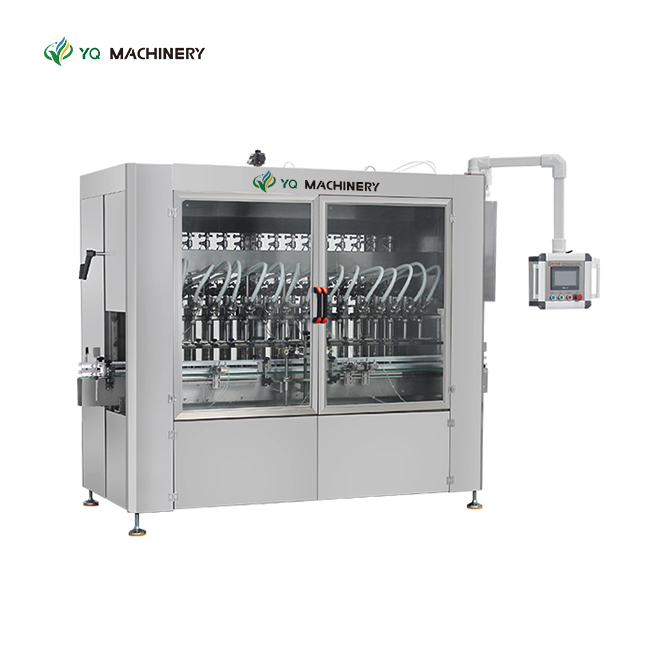

Introduction of bottle filling machine:
Fully automatic high-viscosity filling machine has been modified and added some additional functions. Make the product more simple and convenient in operation, precision error, installation adjustment, equipment cleaning, maintenance and so on. It is widely used in various industries such as paste, daily chemical, oil, etc. It can be filled with different liquid viscosity products. The machine has compact and reasonable design, simple and beautiful appearance, and convenient adjustment of filling volume.
Features of filling device:
This paste filling machine has compact and reasonable design, simple and beautiful appearance, convenient adjustment of filling volume and high precision. Drawing on advanced filling process control technology, imported color touch screen man-machine interface, the filling process achieves one-click operation and stable performance.
The PLC, touch screen and pneumatic components adopt brand name. The whole fill machine adopts 304 stainless steel, and the parts in contact with the liquid are made of 316 stainless steel. High-quality components and manufacturing processes ensure its excellent quality and long-lasting and stable performance.
The liquid disperse machine is easy to adjust and maintain, without any special tools. User-friendly design, truly easy to adjust, no bottle without filling, accurate filling volume. At the same time, the filling equipment has a counting function.

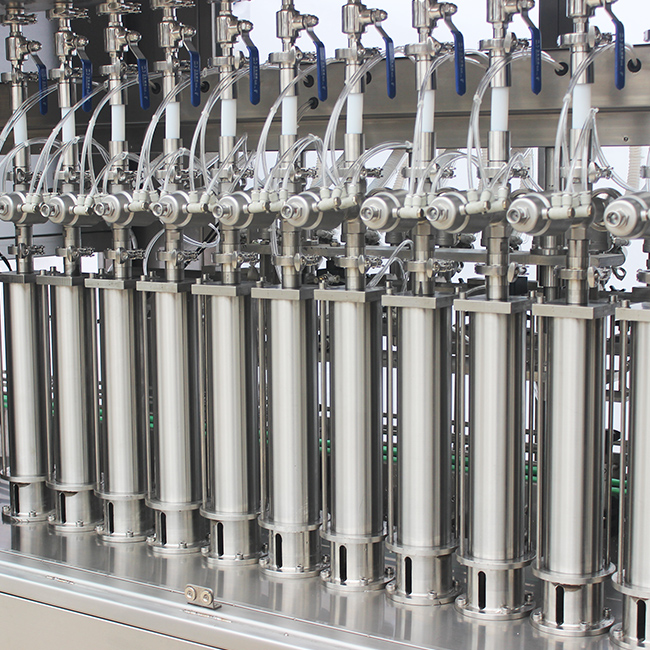

This model adopts anti-drip and brushed filling bulkhead, anti-high foam filling and lifting system, positioning system to ensure bottle mouth and liquid level control system.
Technical Parameters:
| Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
|---|---|---|---|---|---|---|---|---|
| YQF-Z20D | 20 | height: 100-280mm diameter: Φ30-110mm | 200ml：≤7500 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 2.5Kw | 220/380V 50/60HZ | 0.6MPa |
| YQF-Z16D | 16 | 200ml：≤6500 | 2000*1100*2200 | 2.5Kw | ||||
| YQF-Z12D | 12 | 200ml：≤5000 | 2000*1100*2200 | 2.0Kw | ||||
| YQF-Z8D | 8 | 200ml：≤3500 | 1800*1100*2200 | 2.0Kw | ||||
| YQF-Z6D | 6 | 200ml：≤3000 | 1600*1100*2200 | 1.5Kw |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
