YQGZ-5L
YQ

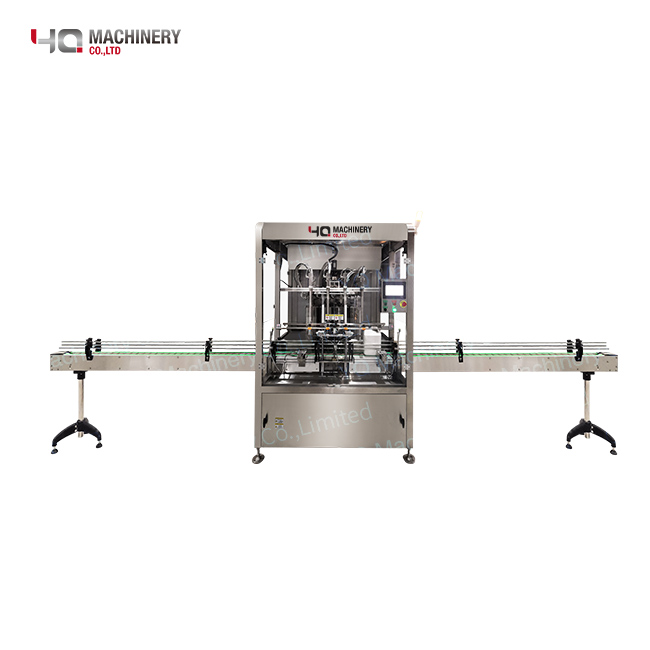

Introduction of paste filling machine
The automatic liquid filling machine adopts the principle of plunger quantitative filling, and the bottle feeding, positioning, filling and bottle discharging are automatically controlled by PLC and meets GMP standards. It is suitable for liquid filling of medicine, food, daily chemicals, pesticides and fine chemicals.
Features of liquid dispensing machine:
1: touch screen operation interface

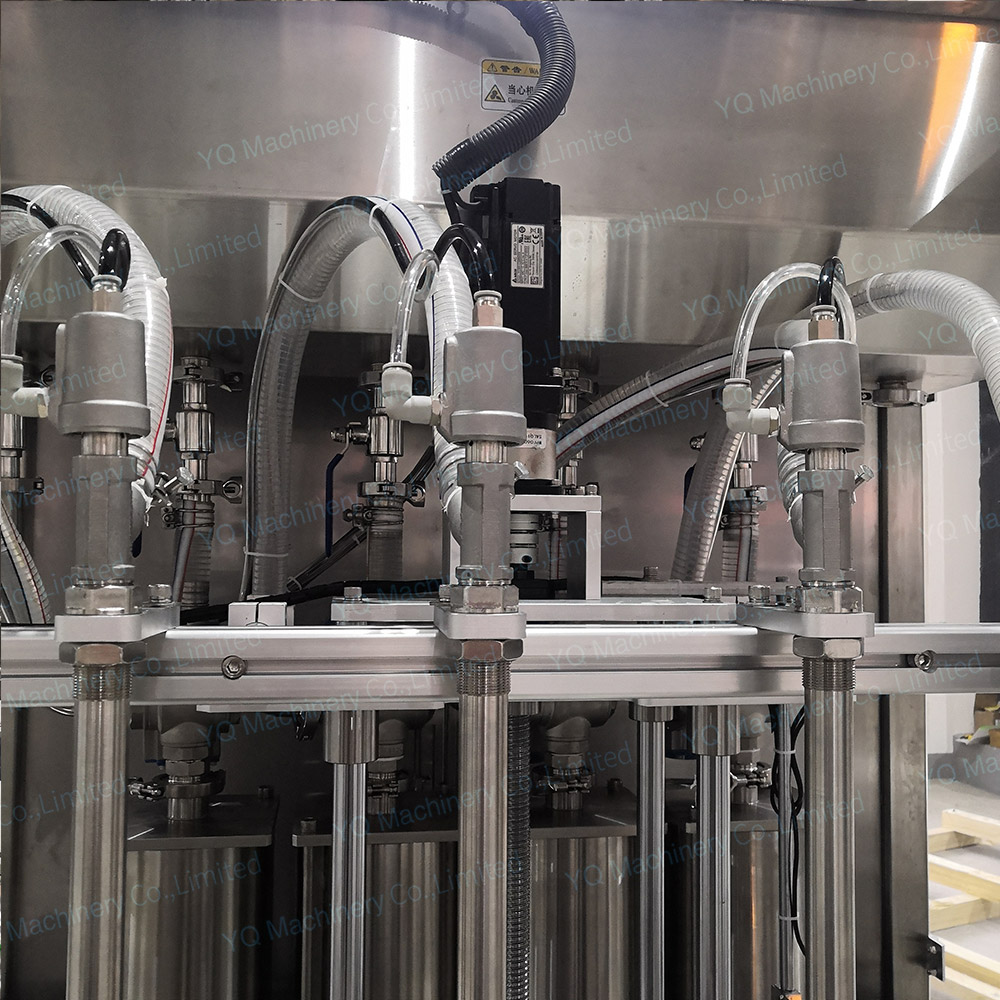

2: 4-head submersible filling, effectively preventing foam generation
3: Filling accuracy can reach ± 0.5%
4: The filling cylinder is hard chromium treated and ground. The unique filling valve design does not leak.
5: No bottle without filling, automatic stop function for bottle accumulation
6: Design different positioning devices according to the actual situation of the bottle
7: Equipment is easy to clean,
8: Filling speed
9: PLC programmable control, using German Siemens or Taiwan Delta
10: Electric control adopts French Schneider
11: Pneumatic components adopt Taiwan Yadeke or German Festo
12: The equipment shell material is SUS 304 # stainless steel
13: Equipped with glass protective cover that meets sanitary and safety standards
Note: Filling range and speed can be designed according to user needs.
Technical data
Model | YQGZ-5L |
Filling volume (ML) | 1000-5000ml（can be customized） |
Capacity(BPH) | 500-600 bottles per hour(4 filling nozzles for 5L) |
Voltage(VAC) | 220/380V;single/three phases;50/60Hz |
Power(KW) | 2.0 |
Air source(MPA) | 0.6-0.8MPA |
Dimension | 2400x1500x2200mm |
Weight(KG) | 800kg |
How to clean piston pump and hopper (Optional function)
Video 2
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
