YQCP-100
YQ
Introduction:

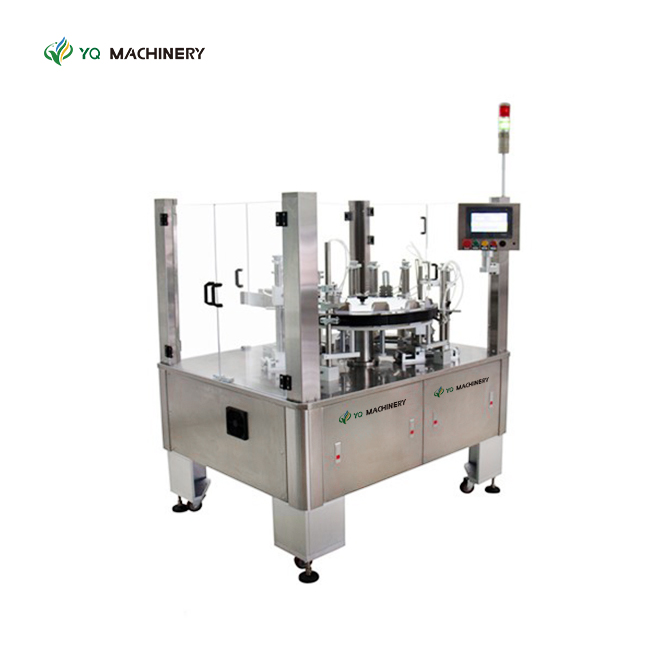

This automatic cartoning packaging machine is designed for a small variety of packaging and design. Its characteristics are low cost, small space requirements for a wide range of sizes. Machine vertical structure, easy mold replacement, with diverse functions. Using mechanical, electrical, optical and pneumatic control, automatic counting, to achieve packaging automation. All operational aspects of the use of advanced detection instruments, automatically reject substandard products, finished products to ensure 100% pass rate. The human error to a minimum, and significantly reduce production costs and labor intensity.
Feature:
1.International famous brand of electrical component such as PLC touch screen, frequency inverters,etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy.
Main Function:
Automatic folding(1-4 folding) and conveying of manual leaflet, automatic maternal categorizing and feeding; automatic paper carton spreading; automatic manual leaflet and material carton packaging, synchronous (3-row) batch number printing, automatic paper carton sealing, automatic waster eliminating.
Main technical parameters:
| Machine Speed | 5-50 carton/min |
| Voltage | 3 Phase 220V/380V 50/60Hz |
| Packing Box Range | max.160mm(W)×220mm(H) min.60mm(W)×80mm(H) |
| Suitable Carton | Tongues box, glue box, hook bottom box |
| Total Power | 1.5Kw |
| Air pressure | 0.6-0.8Mpa |
| Air consumption | 0.1m/min |
| Working environment temperature | 5-35°C |
| Relative humidity | ≤85% |
| Machine Dimension | L2600mm×H1000mm×W1600mm |
| Machine Wight | 1250K |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
