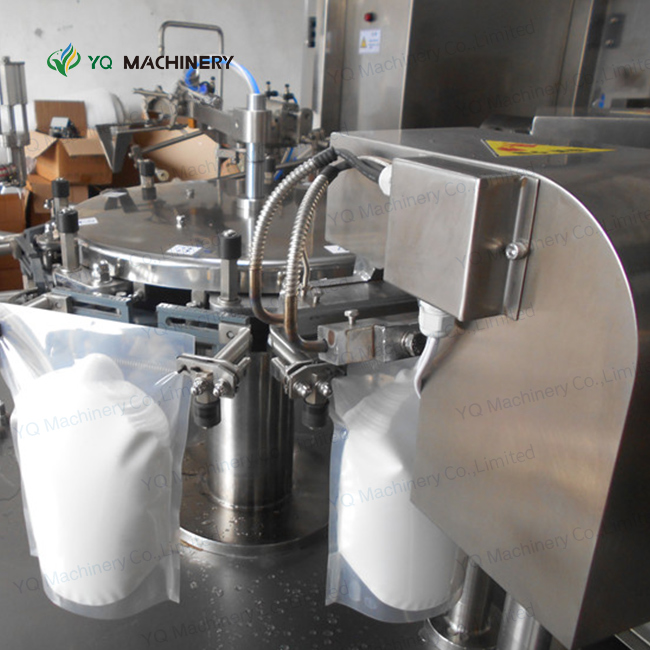

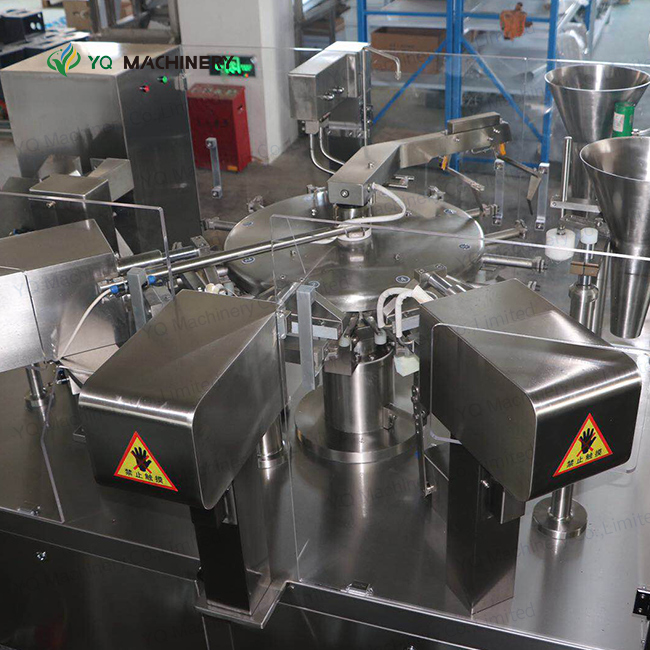

Details of rotary pouch packaging machine:
Specification：
1.For preformed pouch packing
2.For packing Flat,Stand-up,Zipper and Slider-zipper bag,side pouch
3.Rotary type
Main Features:
1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only about 10 minutes to change different pouches.
4. Frequency control: Speed can be adjusted by frequency conversion within the range.
5. Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine alarm and stop when the inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need to oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.
Main technical parameters:
| Packing Speed | 20-40bags/min (Depended on the product and filling weight) |
| Bag Size | W:100-210mm L:150-300mm |
| Filling Range | 5-1500g |
| Total Power | 3.85kw |
| Bag Types | All kinds of compound bags, such as flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, stand up bag etc… |

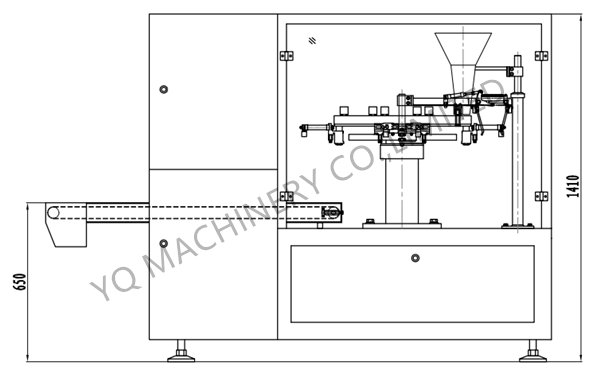

| Overall Dimensions | 4200*1800*2400mm |
Configuration:
| No | Parts Name | Model | Quantity | Manufacturer |
| 1 | PLC | CP1L-M40DT-D | 1 | OMRON(Japan) |
| 2 | Panel | MT6070IH | 1 | Weinview(Taiwan) |
| 3 | Transducer | ATV312HV075N4 | 1 | SCHNEIDER(France) |
| 4 | Vacuum Pump | KRX5-P-V-03 | 1 | ORION(Japan) |

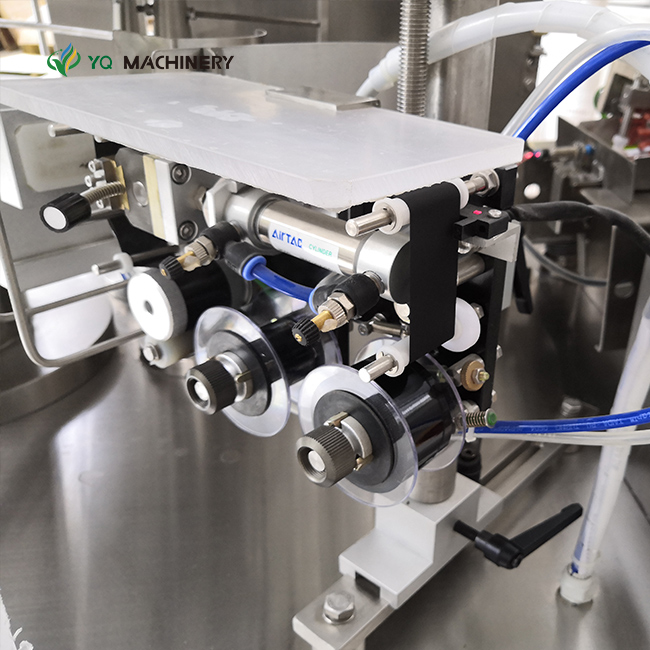

| 5 | Ribbon Coder | HP-501 | 1 | TANE(China) |
| 6 | Main Motor | CH32-750-30S | 1 | GPG(China) |
| 7 | Stainless Steel Heater | 2 | China | |
| 8 | Proximity Switch | 2 | OMRON(Japan) | |
| 9 | Solenoid Valve | GP46-0-01L5 | 1 | SMC(Japan) |
| SY5120-5DD-01 | 8 | |||
| VQ21A1-5G-C8-F | 2 | |||
| VP342R-5G-02A | 2 | |||
| 10 | Cylinder | CJ2D16-25 | 2 | SMC(Japan) |
| CG1BA20-20 | 1 | |||
| CG1BA32-50 | 1 | |||
| CG1BN32-40 | 1 | |||
| CQ2A20-20DM | 1 | |||
| 12 | Bearing | Igus(Germany) |

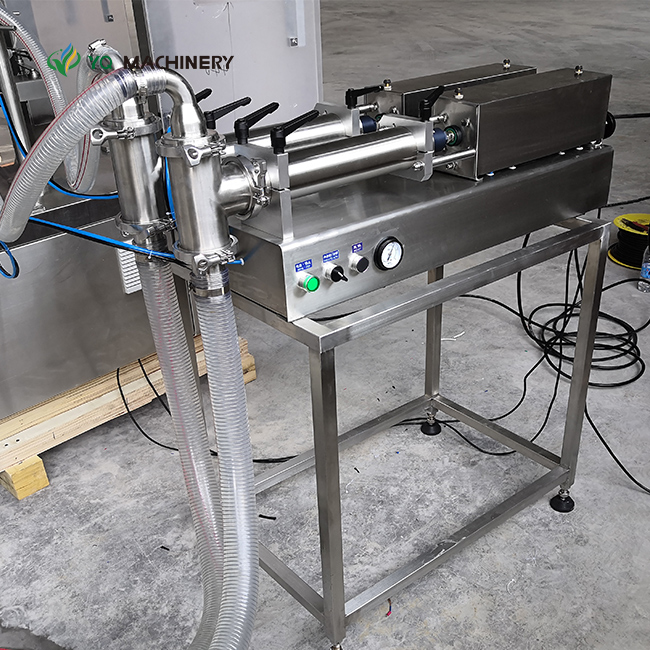

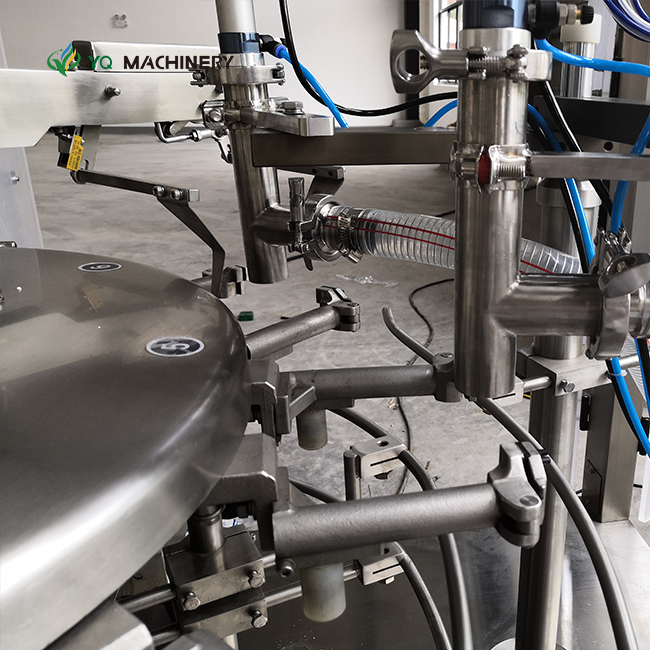

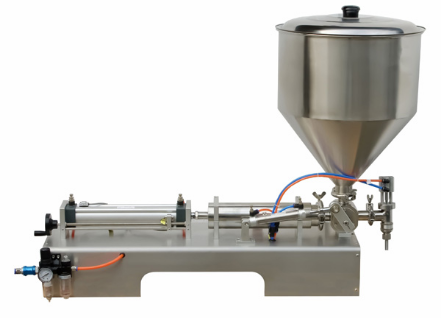

1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
