YQSL-26
YQ

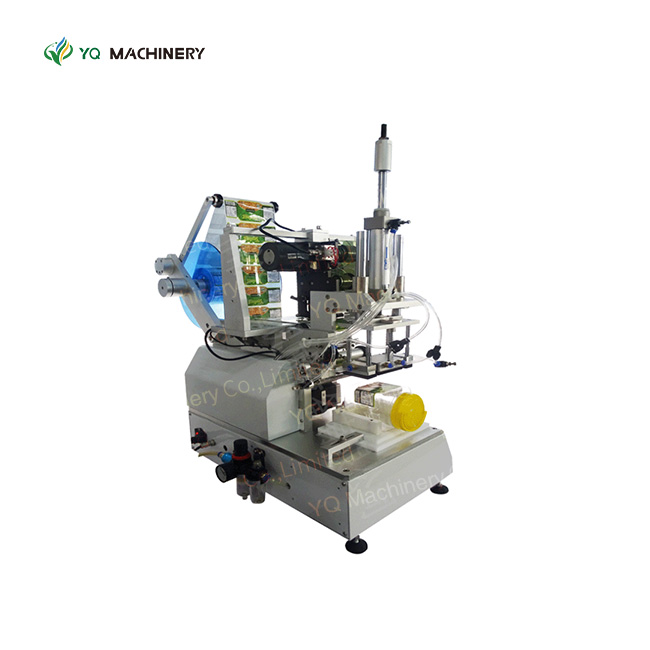

Application of corner labeler :
Suction method is used for labeling flat surface or corner on various products. Such as cosmetics bottles, paper boxes, plastic lids, etc. Changing fixtures, suitable for a variety of irregular product labeling.
Advantage of manual corner label applicator:
1.The printing area can be changed by adjusting the date printer position,that means you can print the date on top left or right corner or any position of the label.(date printer optional)
2.With temperature control box,can print number or date clearly and adjust temperature easily.Easy to operate.
3.With electric eye,can position accurately,improve labeling accuracy.
4.With larger power motor,works stably and safely
5.Stainless steel machine body,high quality roller,these all make the hologram labeling machine machine works better and can imporve working efficiency.
6. High precision, labeling accuracy reaches ± 1mm
Technical Parameter:
| Labeling accuracy | ± 1mm (excluding product and label errors) |
| Labeling speed | 15 ～ 30 pieces / minute (related to product size) |
Applicable product size | Length: 20mm ～ 120mm; Width: 20mm ～ 180mm; Thickness: 0.2mm ～ 75mm |
| Applicable label size | Length: 15mm ～ 150m; width: 15mm ～ 180mm |
Overall size | about 880mm × 420mm × 670mm (length × width × height) |
Applicable power supply | 220V / 50HZ;(can be customized) |
Machine weight about | 90Kg |
| Applicable label inner diameter | φ76mm |
| Applicable label outer diameter | φ280mm |
| Air pressure | 0.4 ～ 0.6Mpa |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
