YQSF-W
YQ
Introduction

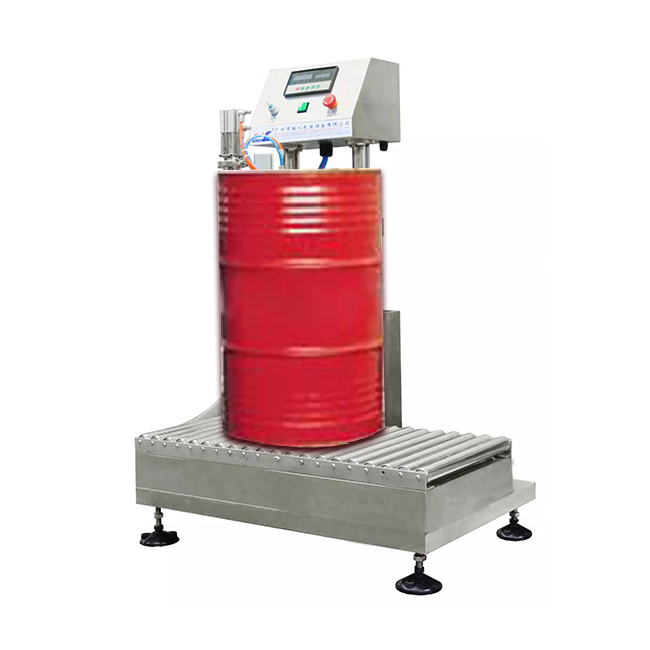

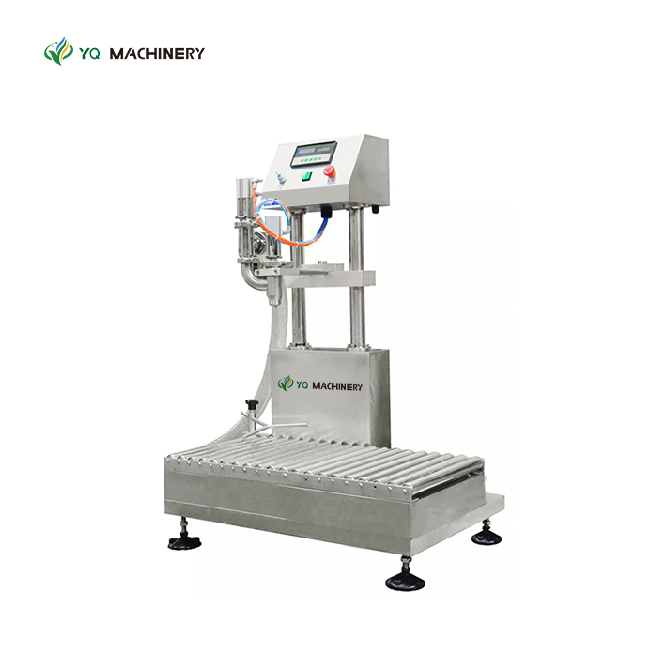

This weighing type filling machine is suitable for all kinds of containers, metal or plastic barrels of the machine can be used for, between 3kg and 50kg at the same time accurate quantitative filling, the system can be used in damp, dangerous or other adverse conditions.
Widely used in food processing, pharmaceutical, pharmaceutical and chemical industry, according to customer needs can be designed and manufactured into an anti-corrosion liquid filling scale, food grade liquid filling scale and explosion-proof liquid filling scale.
Features
1. It is manufactured according to the standard of QB/T2501-2000 gravity automatic weighing instrument;
2. The contact material is made of Teflon and is corrosion resistant;
3. The system is manufactured with high-end electrical accessories such as Japan 701 instrument and Omron RELAY;
4. The filling gun is designed to be quickly disassembled and easy to maintain;
5. The additional pneumatic ball valve in the front section of the filling gun is automatically closed when it is not filled to prevent material leakage;
6. The sealing system is made of PTFE, solvent resistant, acid and alkali resistant, and long life;
7. The scale drum and countertop are made of stainless steel, which has good corrosion resistance;
8. The filling gun adopts plug-in filling to avoid the material flying over the bucket and affecting the outer packaging;
9.The system adopts two-stage automatic filling method to increase the accuracy;
10. After the single barrel filling value arrives, the filling gun will automatically lift up and wait for the next start;
11.Unique anti-drip device to prevent material from dripping on the bucket and affecting the packaging and drum;
12. When the filling gun is not inserted into the mouth of the barrel, the filling gun is automatically lifted and the filling is not performed;
13. When filling, just manually move the bucket to the platform, press the start button to perform filling;
14. If the emergency stop button is pressed in an emergency, the filling can be cancelled;
15.One-button operation: start-fill gun drop-automatic peeling-two-speed filling-finish-filling gun rise
Technical Parameters:
Filling Accuracy | +-0.2% |
Speed | 40-50pcs/hour |
Standard roller platform size | 1000mm (L) * 400mm (W) |
Total Length | 500mm |
Net Weight | 1100mm |
Total Height | 95kg |
Power Supply | 220V, 50HZ, Single Phase |
Filling range | 100L-300L (can be customized) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
