YQSL-150/250
YQ
I. Overview of shrink sleever:
This sleeve label applicator machine is suitable for a variety of containers, bottles, cans, various shapes and materials of shrink film packaging (such as: food, beverages, cleaning supplies, pharmaceuticals, wine bottles and other plastic bottles, glass bottles, PVC, PET, iron cans Etc.) Multi-bottle type selection: It can meet the requirements of round bottles, square bottles, oval bottles, flat bottles, curved bottles, cups, etc. The forced direct nesting method is accurate and fast. Can use a variety of 0.035mm thickness shrink film, save a lot of raw material costs. The temperature of the hot air shrinking furnace is uniform and stable, and the shrinking effect is outstanding.
1. label sleeving machine can be fully connected to the production line and can also be operated by a single machine.
2. This heat shrink packing machine can be equipped with double tray feeding, which can save material changing time and ensure smooth production.
3. Adjustable feeding high-speed electric eye, accurately lock the label position
4.Single positioning center guide column, stable label guide, fast replacement of different products
5. Synchronous bottle separator design, bottle conveying is not easy to shake
6.Adjustable cutter head, the cutting mark is smoother, reducing the imagination of defects, it is easier to replace the blade
7. Conveyor belt, bottle splitting screw and bottle synchronization are adjustable to ensure stable and high-speed sleeve labeling
8, advanced control system, touch screen design with auxiliary buttons, more in line with humanity
9, all use Schneider brand products, high stability and trustworthy
YQSL-150/250 Features of sleeve labeling machine:
Full cover type 304 stainless steel
host: waterproof
Adjustable cutter head: rotary cutting, double-sided blade, long life;

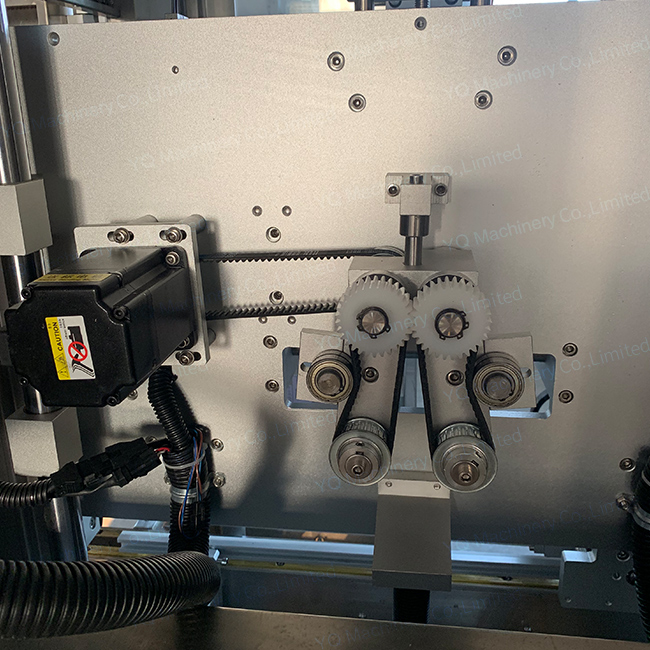

Label feeding, dual-drive label feeding
Double positioning type center guide post: label guide is more stable;
Synchronous bottle seperator: bottle transportation is more stable;
Label brushing group: the accuracy of sleeve labeling is high;
Tag control electric eye frame: original tail wing combined with electric eye to improve film material cutting accuracy;
Push-button control box: operation is more humane;
Feeding rack: freely select the position of the rack
Main technical parameters of shrink sleeve label machine :
Material | SS304 |
Voltage | 220VAC, 50/60HZ, 1Phase(Can be customized) |
Power | Main Power 1KW |
Speed | 250bpm (Base on 40mm film length) |
Bottle Diameter | Ψ20mm~100mm(Can be customized) |
Bottle Shape | Round, Square, Oval, Curves, etc. |
Bottle Material | Glass, Metal, Plastic |
Film Material | PVC, PET, OPS |
Film Thickness | 0.045mm |
Film Roll Inner Core | 76cm(3inch) |
Film Length | 22mm~200mm(can be customized) |
Bottle Height | 35~200mm |
Dimensions | 2000 mm(H) x 1150 mm(W) x 1850 mm(D) |
Net Weight | Approx 400kgs |
Steam Shrink Tunnel
Model: YQ-H1500
Host size: 1500mm (length) × 500mm (width) × 600mm (height)
Body and weight: Stainless steel or lacquered body, 200KGS (slight value)
Power: AC 3-PHASE 380V,15kw
How to adjust the machine
Vidoe 2
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
