YQ
Application:
It is widely applicable to various industries such as food, beverage, medicine, chemical industry, washing supplies, pesticides, skin care products, etc. Our company can design the steam tunnel according to different product shapes of customers in different industries.
Introduction:

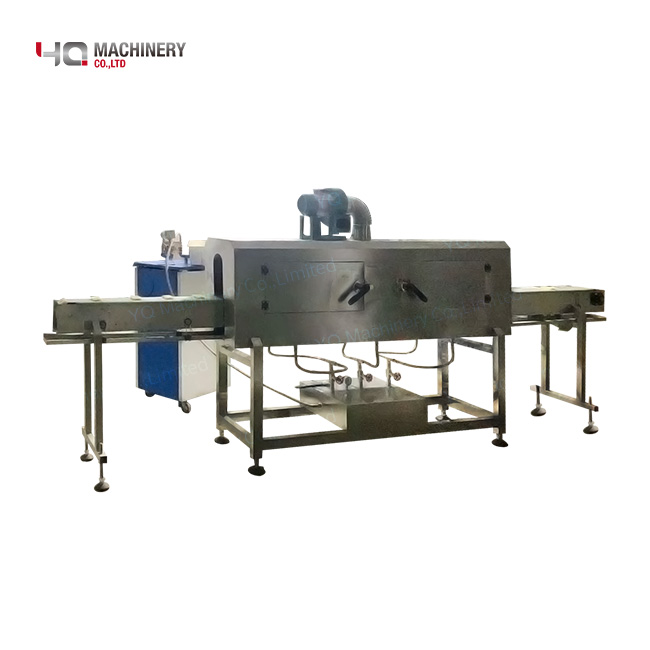

The YQ steam shrinking furnace can be adjusted and maintained for different and irregular round bottles, square bottles, flat bottles and other bottle types, and the shrink effect is perfect. Because the steam spraying method adopts seamless steel tube design, the spray outlet is divided into three sections adjustable, and the height, front, back and air output of each section can be adjusted separately to achieve the contraction effect. The whole shrink machine shell is made of stainless steel and insulated, which not only saves energy, but also conforms to international safety standards. The bottom stainless steel water tray condenses. The whole machine adopts waterproof design, easy to operate and maintain.
Technical Parameter:
| Production capacity | 15000 bottles / hour (based on label length 80mm bottle type 500ml) |
| Label specifications | φ30 ~ 125mm |
| Bottle diameter | φ28 ~ 125mm |
Sleeve length | 30 ~ 250mm |
| Label thickness | ≥0.035mm |
| Label material | PVC / PET / OPS |
| Dimensions | 2000 × 900 × 1500mm |
Steam generator power | 18KW, 21KW (380V, 50HZ-can be customized) |
| Weight | 200kg |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
