YQP-SP
YQ
Introduction:

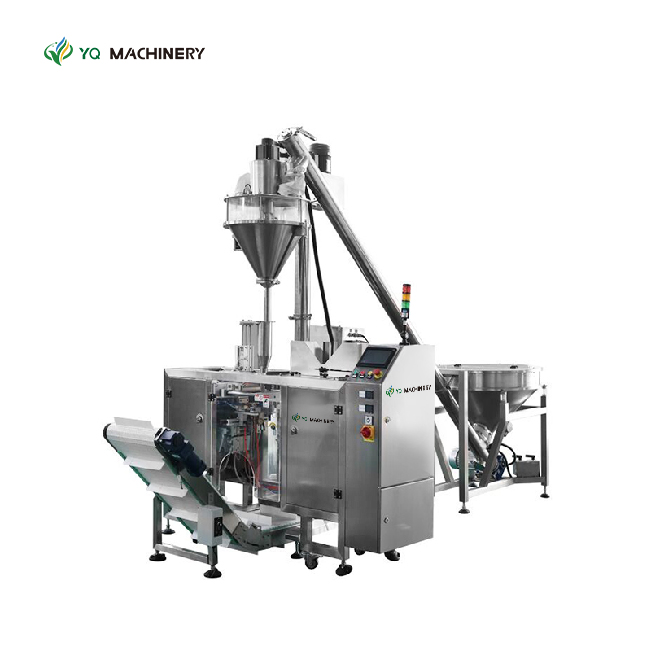

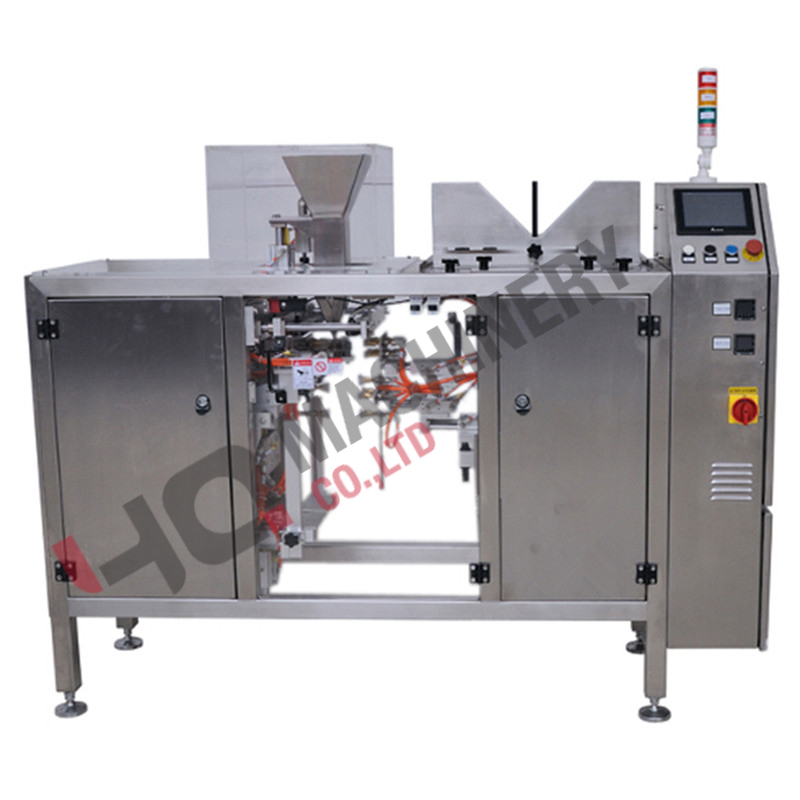

Powder pouch packing machines include pouch packaging machine, automatic liquid fill and seal machine, Powder pouch packing machine, Granule pouch packing machine. The offered range of pouch packing machines is made utilizing high grade raw material and highly advanced technology in complete adherence with the international quality norms.
Features:
1. Easy clean and avoid trash accumulated.

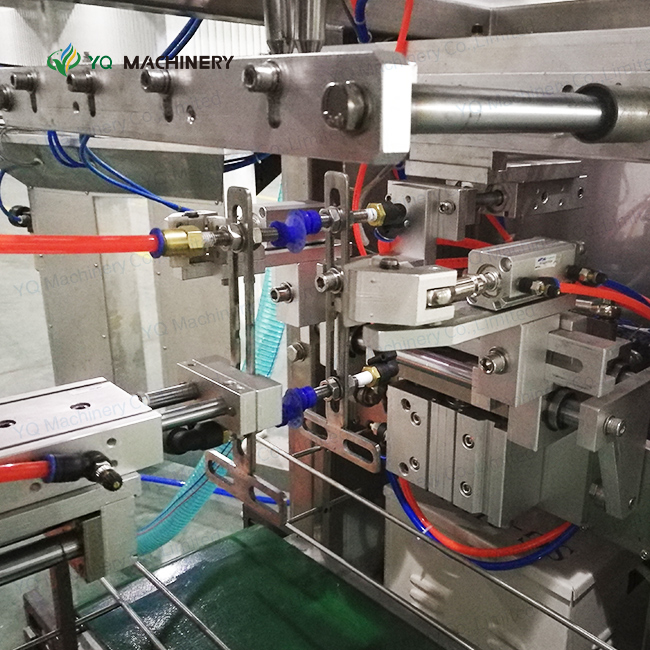

2. From pouch pick up- open - fill - seal to output which is controlled by PLC
3. 7" User's friendly H.M.I. ensure high efficiency performance.
4. Easy to Adjust & Operate
5. Depending on product condition and pouch type, main menu settings can be set on the screen, multiple pouch type can run on the same machine by suction position adjusting.
6. Auto pouch detecting sensor, no pouch no dump ensure material splash down.
Indusry Applications:
Powder Species, milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder etc.
Types of prefabricated molded bags:
Standing prefabricated bags that can be resealed, flat-bottomed prefabricated bags
3 Side sealbag, zipper bag, ziplock bag, top zipper bag, hot seal bag
Stand with zippered bags, small prefabricated bags, large prefabricated bags, gusset bags
Window Kraft Paper Bag, Bud Stand Bag, Special Shape Bag
Valve bags, shelf storage life bags, bags, octopo bags No cow bags, coffee bags, large bags, transparent pre-formed bags
Technical Parameters:
Model | YQSP-300D | YQSP-450D | YQSP-300D-2 |
Bag Type | Pouch Bag , Gusseted pouch, Pillow Bag | ||
Bag Size | Standard Bag: 100-350mm(W) *100-350mm(L) Ziplock Bag: 130-300mm(W) *130-350mm(L) | Bag Width: 250mm ≤width≤450 mm Bag Length: 250mm ≤length≤500 mm | Bag Width: 100mm ≤width≤300 mm Bag Length: 100mm ≤length≤ 350 mm |
Speed | Max 15 BPM | Max 4-10 bags/min | Max 10-25 bags/min |
Power Supply | 220V/50HZ or 60HZ Single Phase 1KW | AC220V/50HZ, 1 Phase 20Amps | AC220V/50HZ, 1 Phase 20Amps |
Air Pressure | 7.0 CFM@80 PSI | ||
Operation Panel | 7 inch touch screen | ||
Electronic: | Mitsubishi PLC/ Omron Temperature Controller Omron Power Switch / Schneider Breaker | ||
Other | Without other high power motive equipment around Keep away from sunshine, high temperature and wind. | ||
Weight | 320KG | 400KG | 400KG |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
