YQSP-S
YQ
Inroduction:

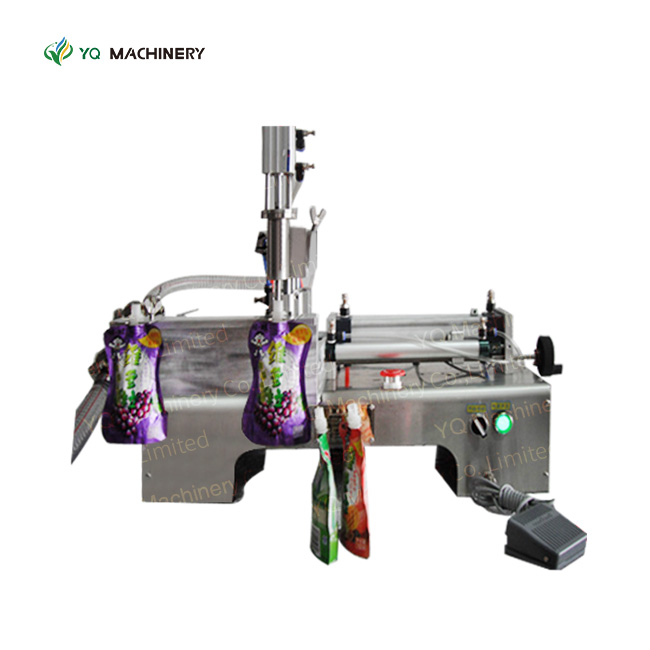

The semi-automatic filling machine is the latest paste and liquid filling equipment developed by our company. This type of filling equipment has been deeply transformed and innovatively upgraded with reference to advanced filling machine technology at home and abroad.The design is lightweight and convenient. The spout pouch packing machine uses pneumatic parts (cylinders) and piston-type push-pull rod mechanism. Because the inner cavity can be formed in the material tank during work, the material can be sucked by negative pressure, so it can fill viscous and poorly flowable materials.
working principle:
This stand up pouch filler and sealer adopts a piston type push-pull rod structure. During operation, the main cylinder generates a strong push-pull force to drive the piston head. When the main cylinder pulls the piston head back, the inlet valve is opened and the outlet valve is closed. Pressure difference, the material will be sucked into the material tank. This is the suction stroke. After the suction stroke is completed, the main cylinder will push the piston head outward. At this time, the inlet valve is closed and the outlet valve is opened. The piston head is pushed out of the cylinder and filled into the container through the discharge port. This is the filling stroke.
The entire filling process includes:
1 hopper feeding;
2 air exhaust;
3 tank suction
4filling and discharging
Product Features:
1. Control components and actuators (cylinders) are all components of the brand (German FESTO / Taiwan AIRTAC / Domestic SNS), and the material contact part is 316L or 304 stainless steel, which meets GMP requirements.
2. The whole plastic bag packaging machine uses compressed air as the power source, and there is no collision and hard friction when the machine is operating, so it is suitable for use in places where explosion-proof requirements are required, with high safety.
3. fixed volume metering and piston push-pull rod structure, high filling accuracy and small error (error ± 0.3%)
4.Filling volume can be adjustment by handle; filling speed can be adjusted arbitrarily; filling accuracy is high.
5. The filling head adopts a cylinder valve or a mechanical valve. The filling head is designed with an anti-drip plug to prevent the filling head from drawing and dripping.
6. Each component is connected by a clamp, which facilitates component disassembly, cleaning, maintenance, and assembly.
7. mechanical setting (manual) gear and (automatic) gear. (Manual) filling is controlled by foot switch, (automatic) is mechanical continuous filling
Technical Parameters
| Type | Filling range | Ideal Filling Range | Filling accuracy | Capacity (per/min) | Other parameters |
|---|---|---|---|---|---|
| YQSP-100 | 10~100ml 0.35~3.53oz | 20~100ml 0.71~3.53oz | ±5 ‰ | 20-38 | Power Supply: AC110/220,50Hz |
| YQSP-250 | 25~250ml 0.88~8.82oz | 50~500ml 1.76~8.82oz | ±5 ‰ | 18-30 | |
| YQSP-500 | 50~500ml 1.76~17.64oz | 100~500ml 3.53~17.64oz | ±5 ‰ | 15-22 | |
| YQSP-1000 | 100~1000ml 3.53~35.27oz | 200~1000ml 7.05~35.27oz | ±5 ‰ | 10-18 | |
| YQSP-2000 | 200~2000ml 7.05~70.55oz | 400~2000ml 14.11~70.55oz | ±5 ‰ | 7-13 | |
| YQSP-5000 | 500~5000ml 17.64~176.37oz | 1000~5000ml 35.27~176.37oz | ±5 ‰ | 5-8 |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
