YQ-QD
YQ
Introduction:

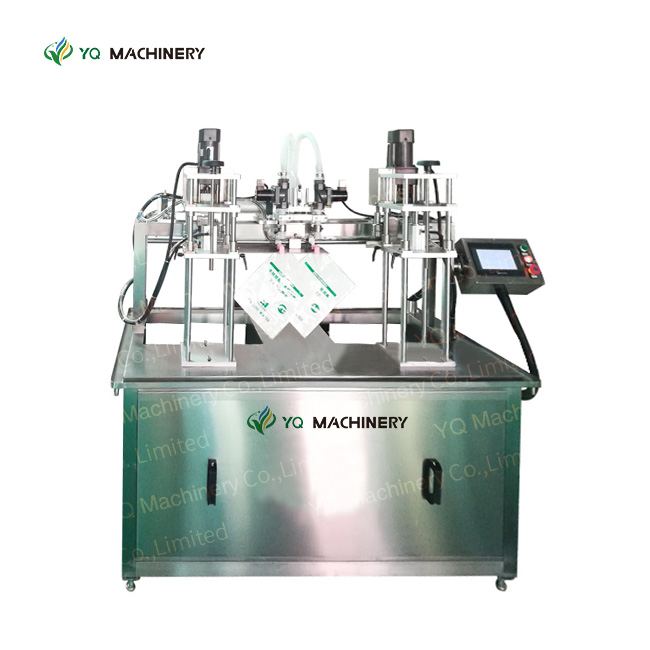

The machine is suitable for filling and capping for stand up pouch, such as: fruit juice,jelly,chili paste,ketchup,seasoning,beverage,ice-cream in food and daily chemical products.

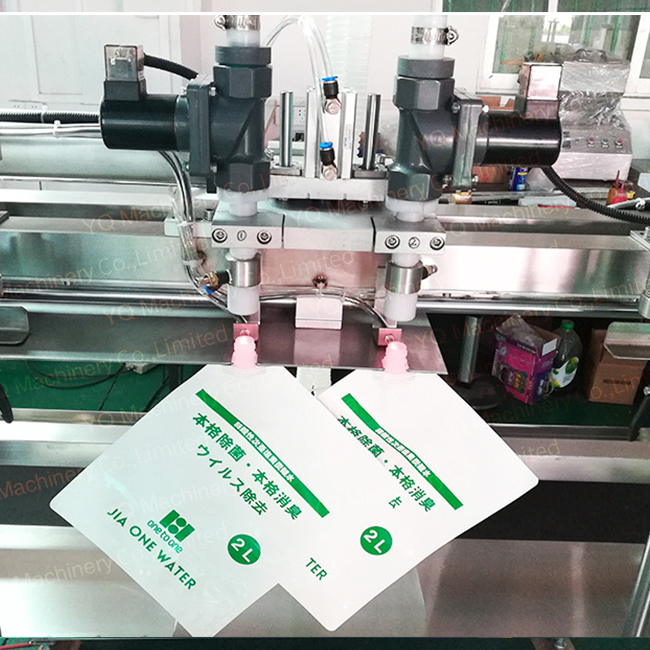

This spout pouch packing filling machine can do capping automatically after the filling is completed, without the need for tedious screwing, and it can be completed at once. Simple and convenient, saving manpower and efficiency.
Working Processing:
It is full automatically done from pouches-putting by manual→auto filling→placing caps manually→ auto capping -covering to auto pouches out.
For the electrical appliance & Pneumatic component, the international famous brand is adopted.
Features:
1. All the materials used in the whole machine are 304 stainless steel.
2. Using piston filling, the filling speed is faster and the accuracy is more stable.
3.The seal ring is equipped with anti-corrosion PTFE seal ring, which is more durable.
4. Filling accuracy error is less than plus or minus 0.5%.
5. Automatic filling and capping, convenient for workers to use.
6. Accurate positioning, fast filling and capping speed.
Technical parameter
Product number | YQ-QD100 | YQ -QD150 | YQ -QD300 | YQ -QD500 | YQ -QD1000 | YQ -QD2500 | YQ -QD5000 |
Gas source | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Filling volume | 10-100ml | 15-150ml | 30-300ml | 50-500ml | 100-1000ml | 200-2500ml | 500-5000ml |
Filling speed | 40 bottles / minute | 30 bottles / minute | 30 bottles / minute | 30 bottles / minute | 20 bottles / minute | 15 bottles / minute | 12 bottles / minute |
Filling heads | 1 head | 1 head | 1 head | 1 head | 1 head | 1 head | 1 head |
Deviation | 0.2% | 0.2% | 0.3% | 0.3% | 0.5% | 0.5% | 0.5% |
Exterior | 304 stainless stee | ||||||
Total Weight | 125KG | 131KG | 132KG | 135KG | 138KG | 145KG | 155KG |
Physical dimension | 550*250*280 | 550*250*280 | 630*280*280 | 630*280*280 | 800*320*300 | 800*320*300 | 900*350*320 |
Package dimensions | 660*380*350 | 660*380*350 | 960*380*350 | 960*380*350 | 960*380*350 | 1060*380*350 | 1160*380*350 |
Packing | Export wooden box | ||||||
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
