YQSP-120
YQ

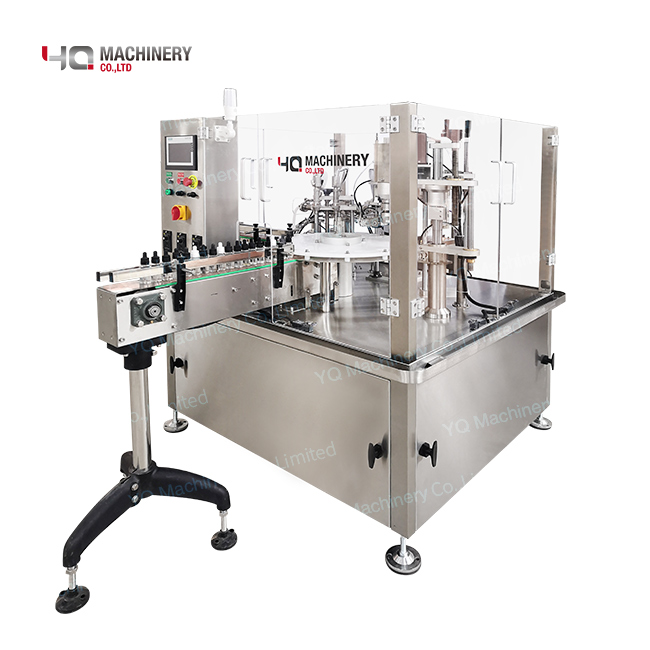

Introduction of spray bottle filler
This monoblock filling machine is a special filling equipment for spray bottle, which is developed by our company based on absorbing foreign advanced technology. Suitable for filling and screwing (rolling) caps for round and special-shaped bottles. Stainless steel piston pump quantitative filling, lifting screw cap. It has the advantages of accurate filling measurement, stable capping and simple operation. Widely used in medicine, daily chemical and other industries.
Feature for sprayer filling machine:
1. The surface is made of 304 stainless steel, and the parts in contact with the material can be all made of 316L(option).Filling options are piston pump, peristaltic pump, gear pump and ceramic pump.
2. It can be applied to the production of various specifications, and it is convenient to change the mold and reduce the cost and waste;
3. Adjustable production speed, no dripping during filling, no bottle, no filling, no capping;
4. The entire production line runs chain control, and can also be controlled by single machine.
Advantage for small bottle filling machinery
1. Using world-renowned brands of electrical and pneumatic components, low failure rate, reliable performance and long service life.
2. Using high-strength stainless steel frame, easy to disassemble, easy to clean, meet GMP requirements

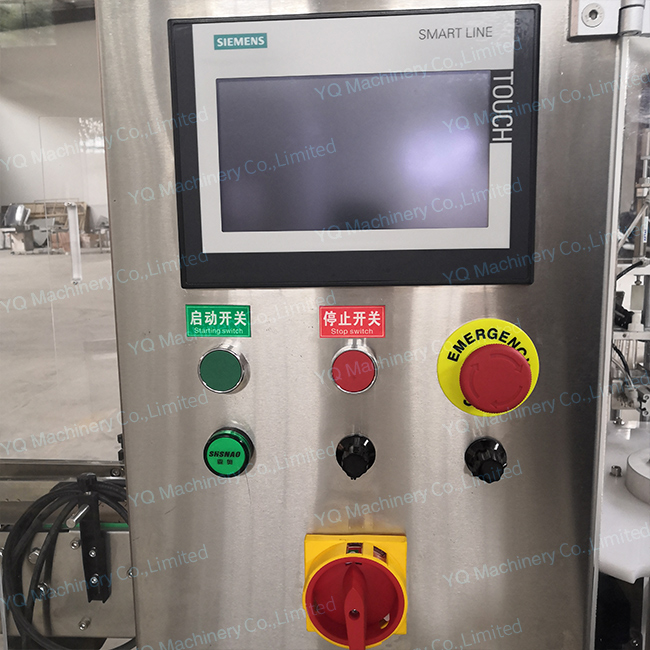

3. The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, and the appearance is beautiful;
4. It is equipped with no bottle and no filling function, and the liquid level is automatically controlled for feeding;
5. You can quickly adjust bottles of different shapes and specifications without changing parts;

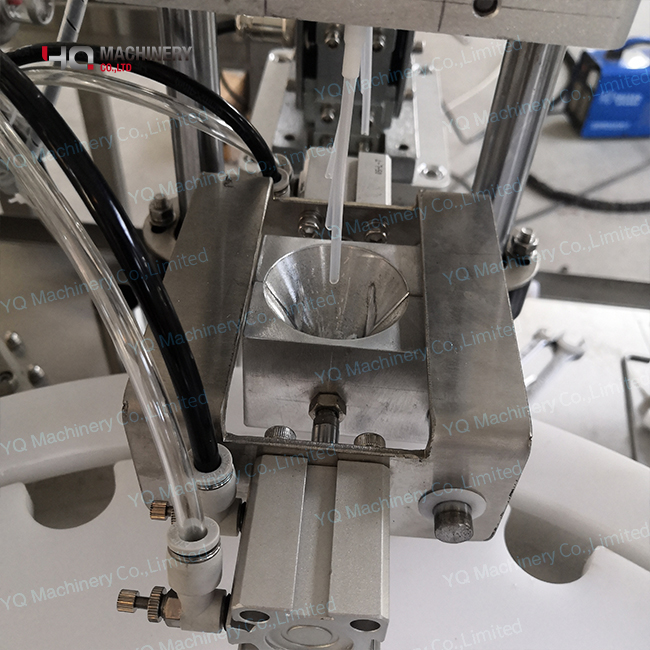

6. The filling head is equipped with a special leak-proof device, and there is no drawing or dripping during filling.
Note: The filling range and speed can be designed according to user needs for different filling heads.
Technical Parameters
| Model | YQSP-120 |
| Power | 220V / 50Hz |
| Power | 2.0 kw |
| Filling range | 10-100ml (can be customized) |
| Filling volume error | ≤ ± 1% |
| Production capacity | 20-40 bottles / minute |
| Dimension | 2300 * 1200 * 1800mm |
Machine net weight | 600 kg |
About Packing：
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
