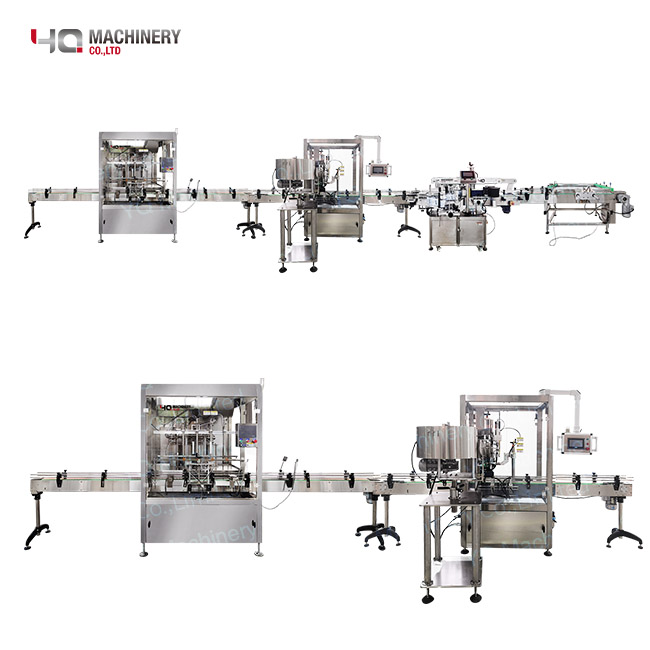

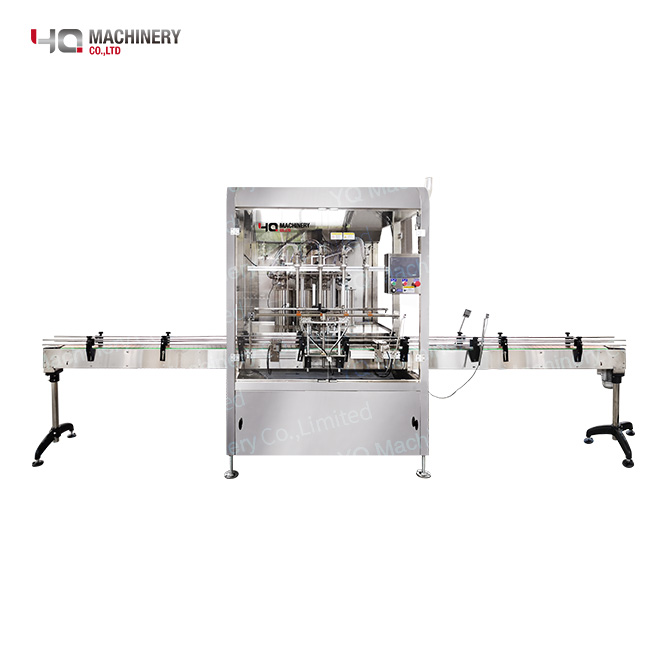

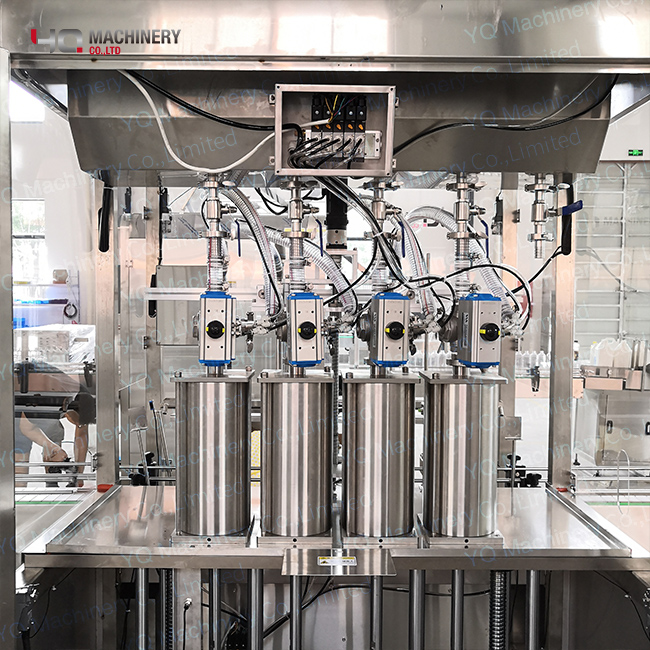

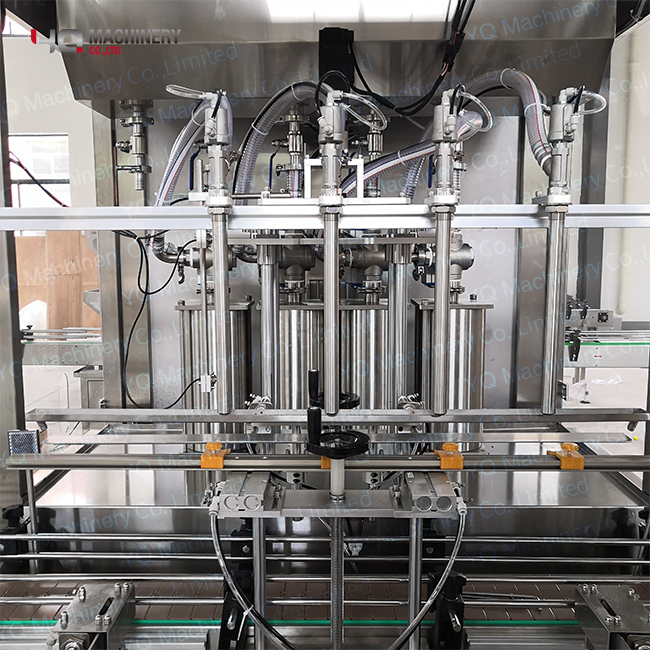

A.1 Gallon Jug Filling Machine
Introduction of gallon filler:
This is our newly-developed filling system for daily chemicals and cleaning products with a large capacity of 1-5 liters. It has the functions of fast filling speed, high precision and convenient cleaning.

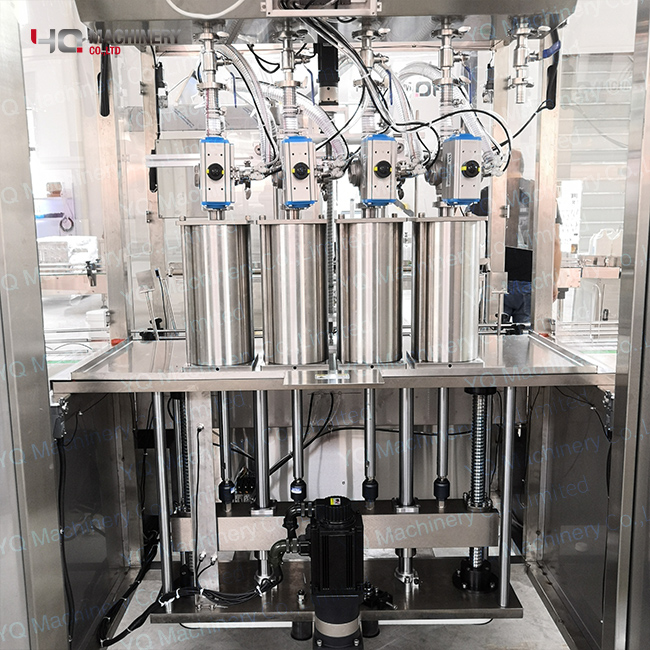

Piston-type automatic filling machine is developed by our company with many years of production experience and absorbing the world's advanced technology. It adopts piston type quantitative principle. Electrical and pneumatic components are selected from world-renowned brands.It is controlled by PLC and has advantage of man-machine interface, novel design, beautiful appearance, friendly interface, strong adaptability, simple operation, accurate filling volume, convenient maintenance, etc. . It is widely used for filling various liquids, viscous bodies, pastes.
Features of gallon filling machine:
1. Using world-renowned brands of electrical and pneumatic components, low failure rate, reliable performance and long service life.
2. Using high-strength stainless steel frame, easy to disassemble and assemble, easy to clean, in line with GMP
3. Simple adjustment of filling volume and filling speed, operated and displayed by touch screen, beautiful appearance;
4. Equipped with no bottle no filling function, liquid level automatic control feeding;
5. Without replacing parts, you can quickly adjust bottles of different shapes and specifications;
6. The filling head is equipped with a special leak-proof device, and there is no wire drawing or dripping during filling;
7. Servo motor controls filling with precise filling accuracy;
8. Bottom and up filling to prevent foam(option)

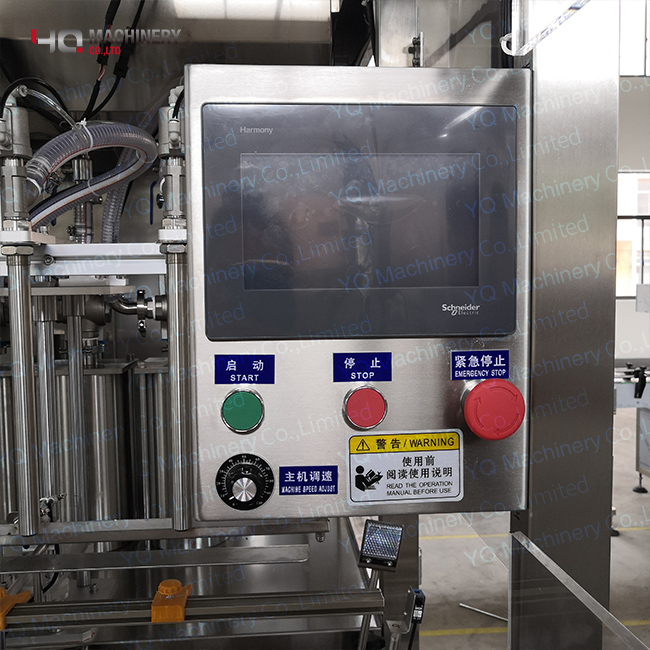

Touch screen(Schneider) | Stainless steel, anti-drip filling head, dive filling |
Equiped with servo motor to adjust filling volume accurately | One button cylinder removal The system setting button can be used to dismantle the cylinder for easy cleaning and replacement |
Technical Parameter:
Filling Range | 1000-5000ML |
Capacity | 10-30 BPM |
Power | 220V,single phase,2kw |
Air Consumption | 0.6-0.8MPA |
Dimensions | 2200*1100*2100 |
Weight | 1100KG |

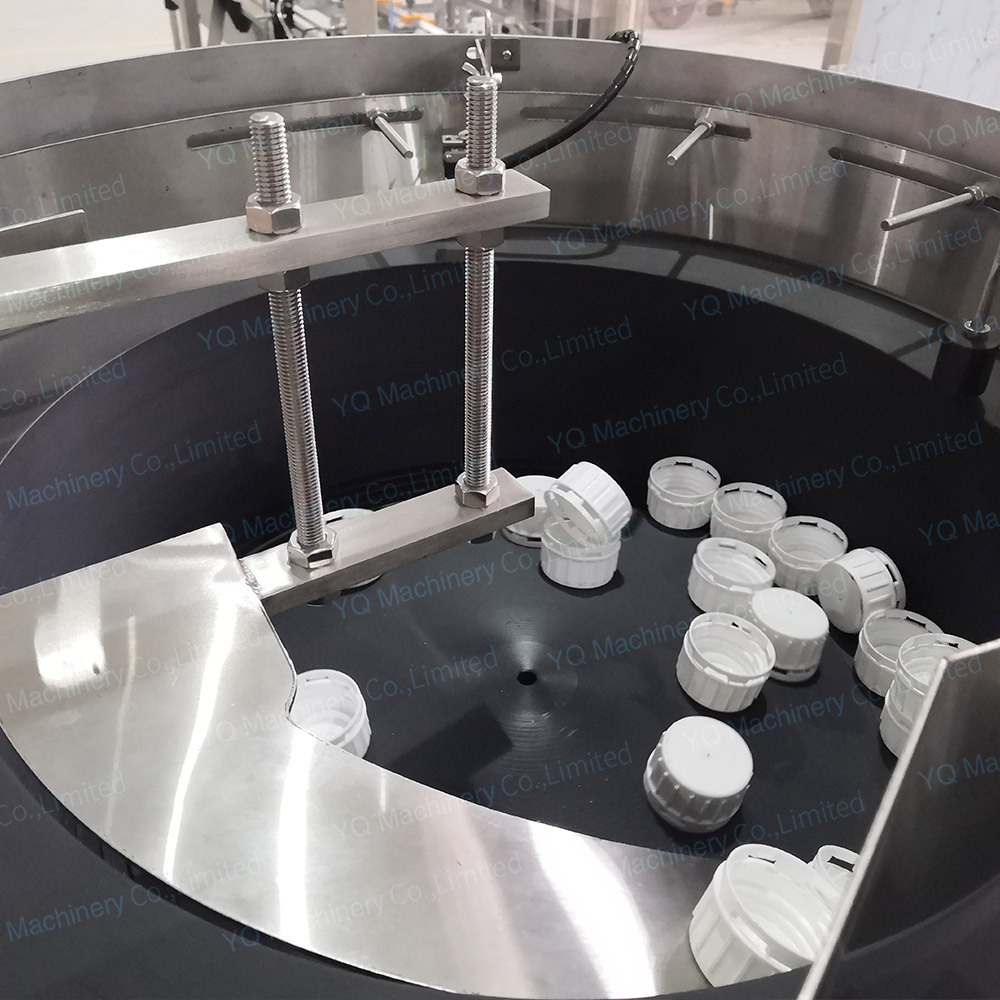

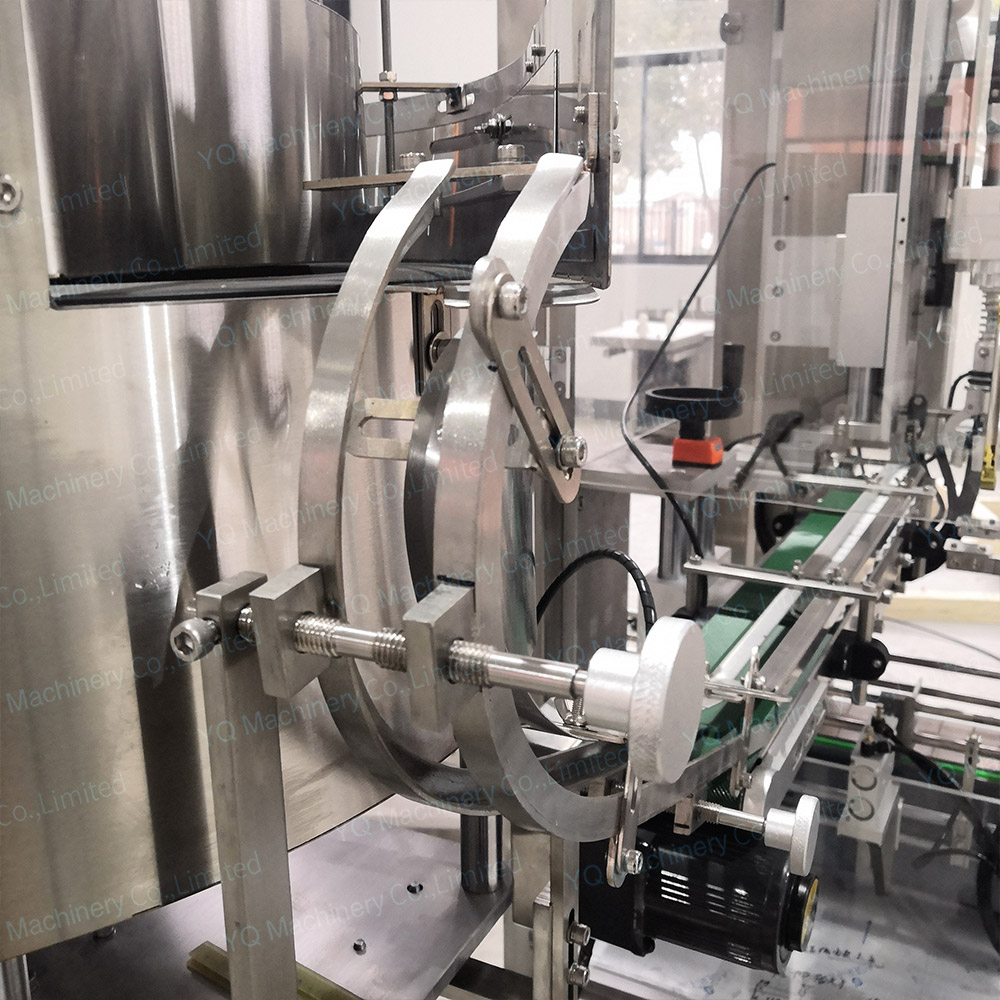

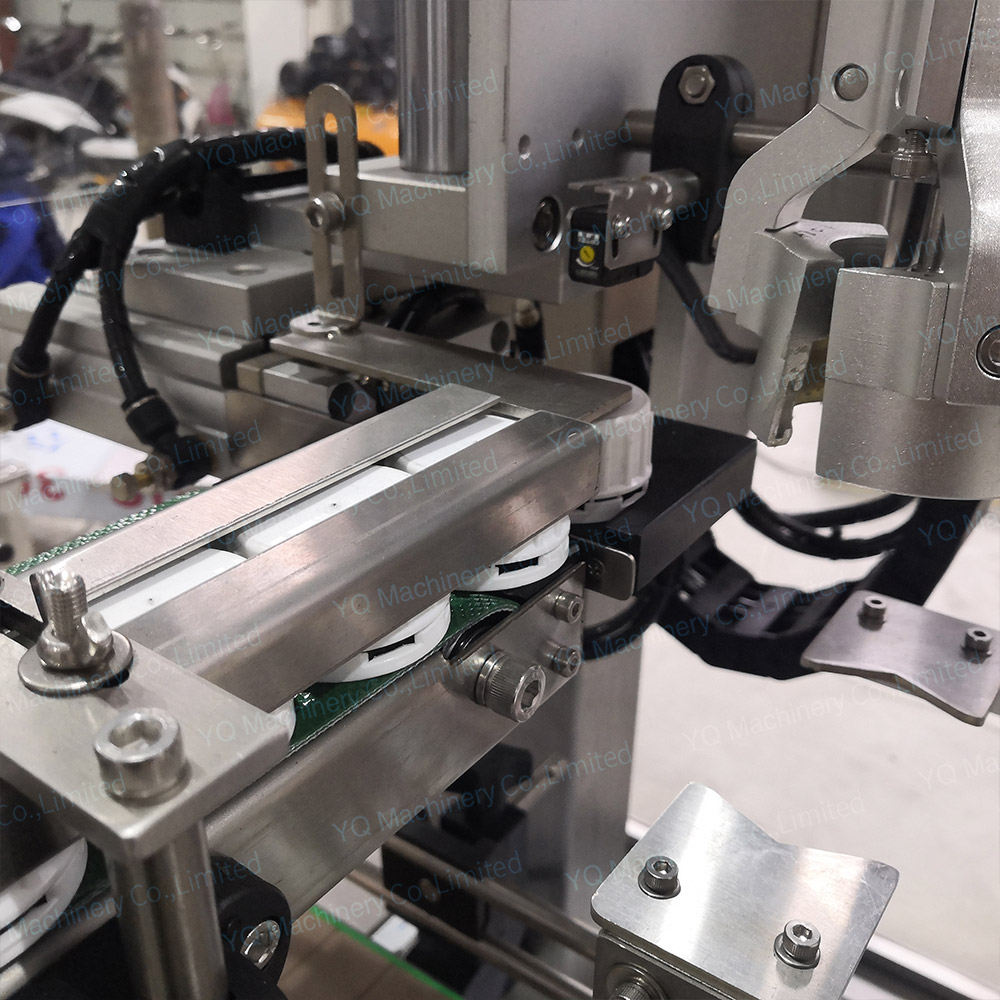

B.Single Head Cap Closing Machine With Cap Sorting Bowl:
Introduction of capping machinery
The single-head capping machine adopts servo motor to control the torque and then capping, which does not hurt the bottle and cap, and has fast speed, safety and stability, and high capping efficiency. The bottle cap is followed by the cap, and it is rotated while walking. The reliable XY axis movement action is controlled by the full servo motor.
application of capper:
First choice equipment for daily chemical industry, edible oil industry, chemical industry, lubricant industry.
Technical Parameters for cap tightening machine:
Model | YQXG-50 |
Production capacity | 25-30bottle /min |
Adapt to cover diameter | 20-150 |
Capping rate | ≥99% |
Power supply | 220V / 50Hz 60Hz(can be customized) |
Power | 2.5kW |
Overall dimensions | 2000X900X2000mm |
Weight | 650KG |

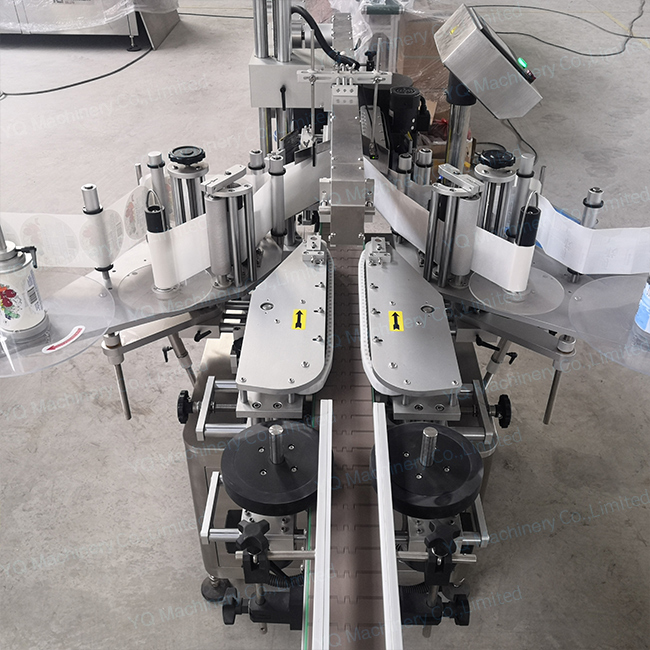

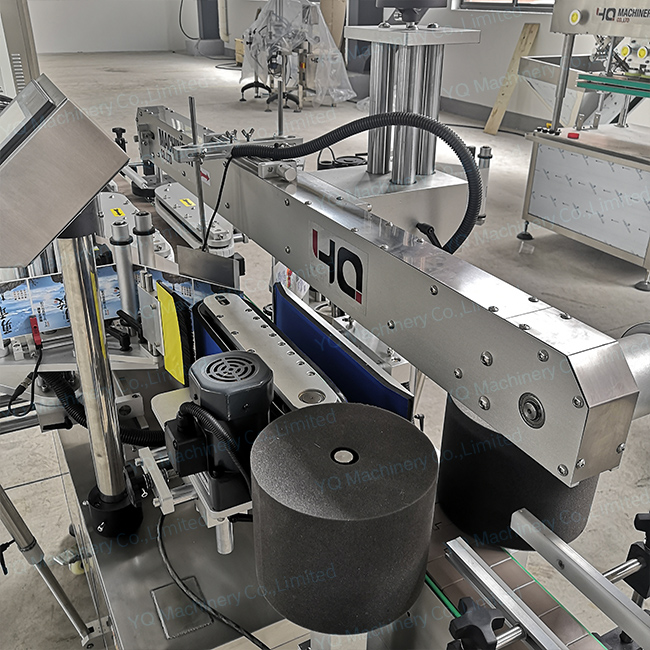

C.Front And Back Labeling Machine
Introduction Of Pressure Sensitive Label Applicator:
This machine is suitable for labeling various bottled products in other industries such as food, condiment, medicine, wine, oil, cosmetics, etc. Can be customized non-standard.
The whole machine is designed with exquisite design, removing unnecessary complexity and cumbersomeness on the machinery, and the maintenance and repair of the set-up assembly can be completed without professional personnel. When the product needs to be replaced, only simple adjustments can be immediately put on line.
Feature Of Sticker Labeler:
1. The whole labeling system is made of S304 stainless steel, which meets international standards.
2.The labeling head is driven by a servo motor to ensure labeling accuracy
3.All electric eyes are well-known which are made in Japan and Germany.
4.PLC cooperates with large-scale man-machine interface control, and contains 50 groups of memory.
5.This labeling equipment is most suitable for single-machine single-person operation of a small number of diverse products.
6.This label machine has mechanisms for bottle alignment, separation, labeling, wheel leveling, counting, etc.
7.Labeling position, height, angle, all can be adjusted.
8. It can be connected to the the other equipment and used in the production line.

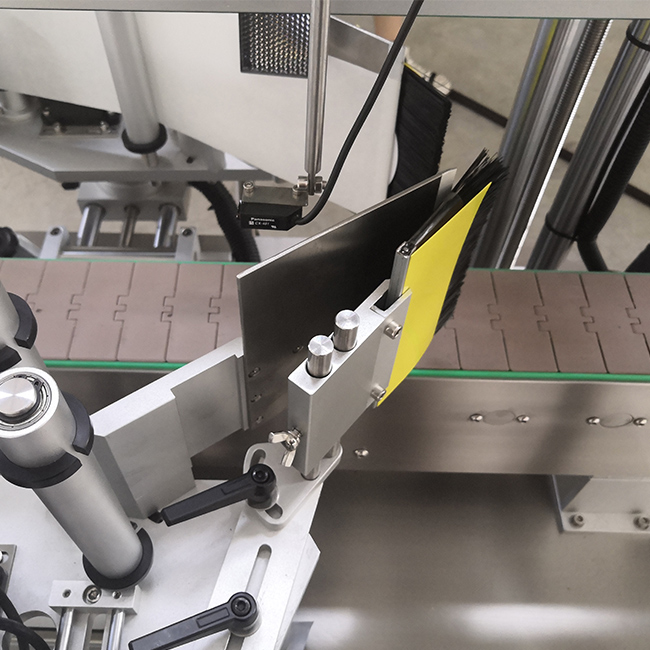

Bottle separator Adjust ingresss bottle spacing for easier labeling | Correction board To keep the bottle running smoothly
| Lower pressure plate Keep the bottle running steadily to prevent it from falling |

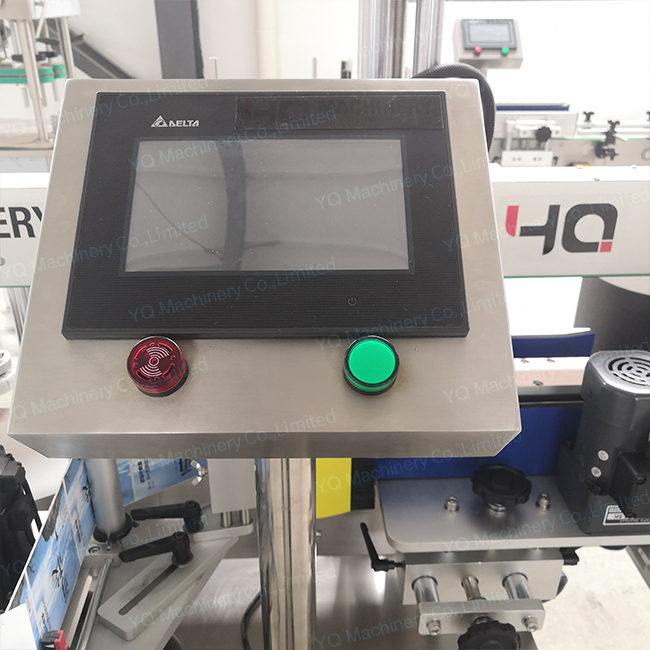

Smoothing brush Make the label stronger | Touch screen(Siemens) |
Technical Parameter Of Front And Back Labeler:
Power supply | AC 220V; 50Hz(can be customized) |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |
D.Accumulation Table
Introduction:
The mesh belt conveyor accumulator is also called mesh belt conveyor line, which can be divided into mesh belt conveyor and mesh chain conveyor. The mesh belt conveyor accumulation table is a revolution to the traditional belt conveyor. It overcomes the difficulty of belt conveyor maintenance, and the belt is easily torn, punctured, and corroded. It provides customers with a safe, fast, and simple maintenance Delivery method. Because the mesh belt conveyor uses modular plastic mesh belts, and the transmission mode is driven by sprocket, the conveyor belt is not easy to snake or deflect, and because the conveyor mesh belt is thick, it can withstand cutting, collision, and is resistant to oil and water. , So that you will not have trouble in maintenance when using it, especially in the replacement of the conveyor belt, reducing a cost.
The accumulation tables conveyors we use can be selected according to customer needs (domestic, imported/oil-resistant, water-resistant, and high-temperature resistant). The mesh belts of different materials can play different conveying roles and meet the needs of different environments. We modify plastic materials The conveyor belt can meet the conveying requirements between minus -10 degrees and 120 degrees Celsius. The mesh belt pitch is 12.7, 19.05, 25.4, 27.2, 38.1, 50.8 optional, and the opening rate is optional from 2% to 48%.
Note:This table can be customized to fit for different specifications according to the special needs of customers.
Technical Parameter:
Conveyor mesh belt materials are: PP (polypropylene), PE (polyethylene), ACETAL (acetal), NYLON (nylon).
Structural form: horizontal linear conveying, lifting and climbing conveying, etc. The conveyor belt can be equipped with lifting baffles and side baffles.
Drive mode: geared motor drive.
Speed regulation method: frequency conversion speed regulation, stepless speed regulation.
Frame material: stainless steel, carbon steel.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
