Availability: | |
---|---|
Quantity: | |

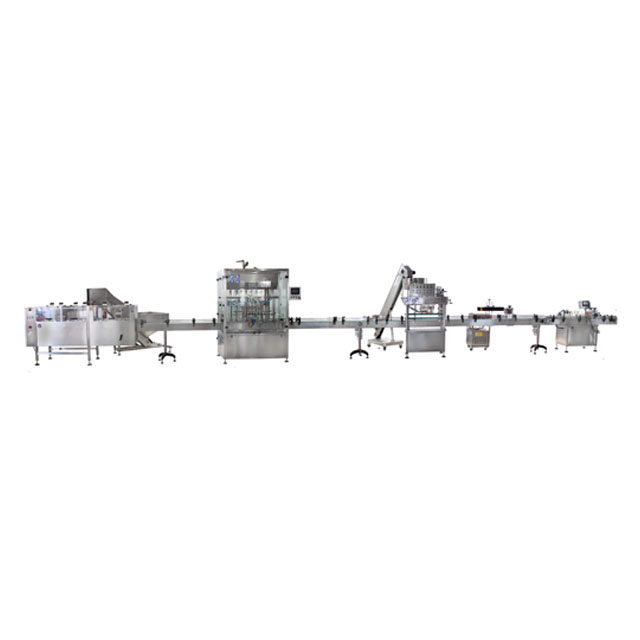

YQGZ-5000
YQ
Production capacity | 50ml-500ml ≤12000b/h |
800ml ≤9000b/h | |
1000ml ≤8000b/h | |
Diameter of bottle | 30-100mm (can be customized according to requirement) |
Bottle Height | 100-250mm(can be customized according to requirement) |
Power supply | AC380V; 50HZ |
Main Power | 2.2kw |
External Dimension(L*W*H) | 3000mm*1500mm*1500mm |
Weight | 1300kg |
Specifications:
1.Offer 4/6/8/10/12/16 filling heads
2.Filling liquid/paste
3.PLC control system
Description:
This machine is high-tech filling machine .The contacted part of liquid Adopt non-metal material and is an ideal equipment.It is suitable for the filling of various liquids or paste, like milk,water,juice,washing liquids,laundry detergent,shampoo,oil,ect, widely used in many fields.
Main performance and structure features:
1.Control system - with Mitsubishi PLC control system, filling dose of random tuning
2.Operation interface - colorful screen interface, human-machine interface is simple, safe and reliable
3.Feature Enhancements - Cutting with anti-drip device, it can dive to fill with materials. (This feature can be optional)
4.Electrical components - using internationally renowned brands to ensure the equipment is reliable and of high accuracy.
5.Mechanical components - the main parts is made of high quality stainless steel frame
6.Extensions - can be customized for specific configuration requirements, such as: material sealed, heating, sterilization, etc..
7.Count testing - real-time count, reflecting on the work output directly.
8.Filling And Capping Detection - No bottle, No filling ;or when bottle filling number is not enough, no filling
Technical Parameters:
Applicable specifications | 100-5000ml |
Production capacity | 2000-4000 bottles /hour(4/6/8/10/12/16 filling heads ) |
Filling accuracy | ±1% |
Capping rate | ≥99% |
Power supply | 380V / 50Hz |
Power | 2kW |
Total dimension | 3000 * 1000 * 2500MM |
Specifications
1.automatic capping machine
2. suitable for caps of different shapes and sizes
3. high capping speed
Main application:
This capping machine is mainly used for locking caps for bottles of daily chemicals, medicine, chemical industry, such as nozzle, pump head, spray pump and hand button spray gun and so on.
Products Information:
Machine applicable to the diameter 10 mm-100mm all kinds of bottle caps, overcomes the traditional screw cap machine a bottle with a set of star wheel, a cap with a covering of ills. This kind of novel and unique design, convenient operation and adjustment, the fastest production up to 150 bottles/minute. It can be used to single production, but also it’s the ideal models for the filling production line.
Main features:
1.Capping Machine adopt the mode of one motor controls one capping wheel, which can ensure the machine to work stably and keep consistent torque under long term working condition
2.the clamping belts can be adjusted separately, which allow the machine to suitable for capping bottles with various heights and shapes
3.if you choose the optional cap guiding system together with the machine ,it will then also fit for pump caps
4.the convenient construction adjustment system is equipped with precious ruler and counter
Technical Parameter
Power supply | AC220V / 50Hz |
Power | 1500 W |
Cap Diameter | 10~100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.5MPa |
Net Weight | 500kg |
Package size | 2050×1000×2100m |
Specifications:
1.Easy operation, Easy printing.
2.High accuracy,high quality and high speed
3.Low price
Application:
Suitable for round objects.
Features:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
Characters:
Automatic labeling machine, easy to operate, just turn the power switch one click operation on the entire device to enter production status of products are to be off the label> get items> induction start signal> a standard> label, on the whole production process to complete, simple, accurate and fast are the advantages of this product.
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 60-150(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 40-100mm Height 35-200mm |
The application of label | Height 20-160mm ; Length 23-280mm |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 1800(L) 700(W) 1270(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
