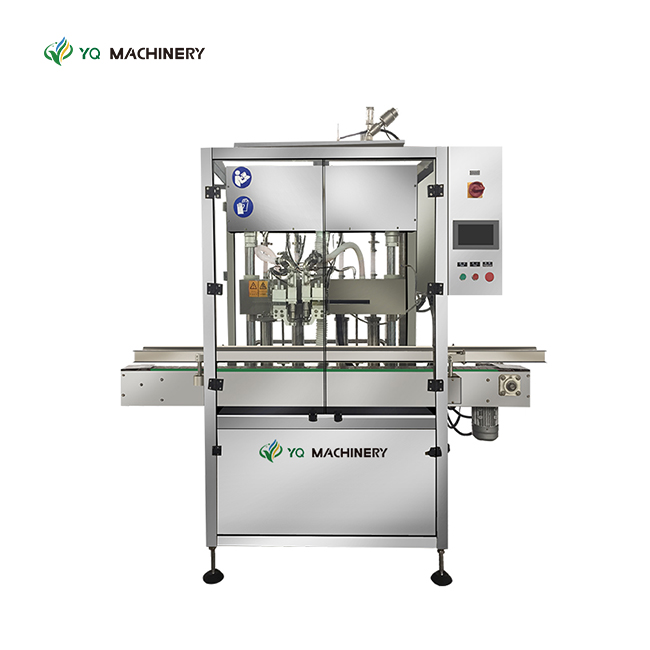

YQF-1000
YQ
Description:

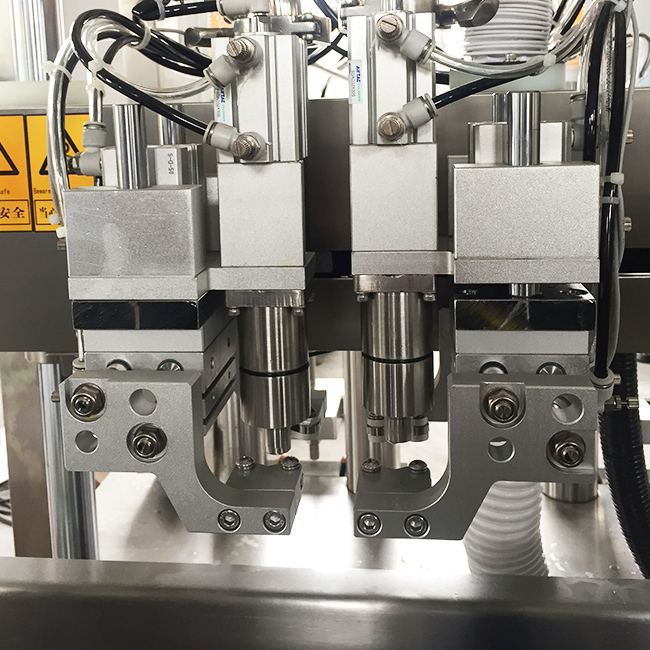

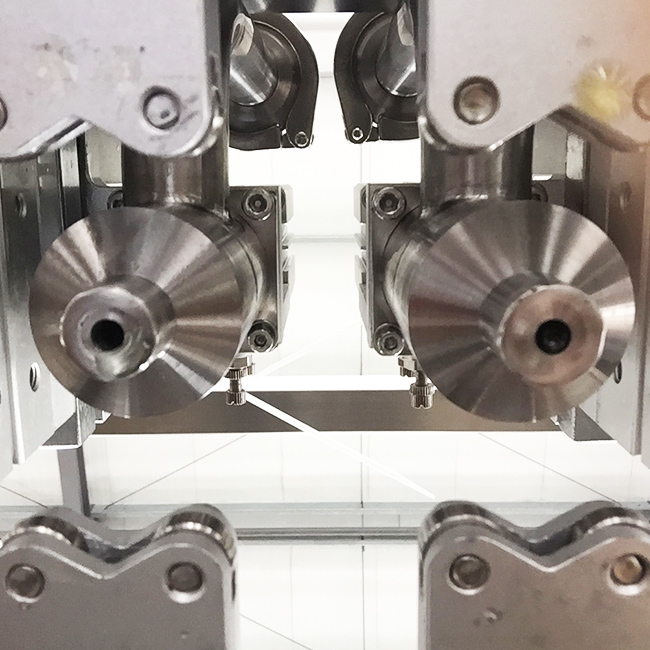

Cutting with anti-drip device, it can dive to fill with materials. Using internationally renowned brands to ensure the equipment is reliable and of high accuracy. The main parts is made of high quality stainless steel frame, can be customized for specific configuration requirements, such as: material sealed, heating, sterilization, etc.
Main performance and structure features:
1.Control system - with Mitsubishi PLC control system, filling dose of random tuning
2.Operation interface - colorful screen interface, human-machine interface is simple, safe and reliable
3.Feature Enhancements - Cutting with anti-drip device, it can dive to fill with materials. (This feature can be optional)
4.Electrical components - using internationally renowned brands to ensure the equipment is reliable and of high accuracy.
5.Mechanical components - the main parts is made of high quality stainless steel frame
6.Extensions - can be customized for specific configuration requirements, such as: material sealed, heating, sterilization, etc..
7.Count testing - real-time count, reflecting on the work output directly.
8.Filling And Capping Detection - No bottle, No filling ;or when bottle filling number is not enough, no filling
Technical Parameters:
Filling volume | 50-1000ml (can be customized) |
Production capacity | 30-50 bottles /min |
Filling accuracy | ≥99% |
Screwing rate | ≥99% |
Power supply | 220V / 110V 50Hz |
Power | 1.4kW |
Total dimension | 2500 * 1200 * 1800MM |
Net Weight | 800Kg |
Air supply | 0.6-0.8Mpa |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
