Introduction:

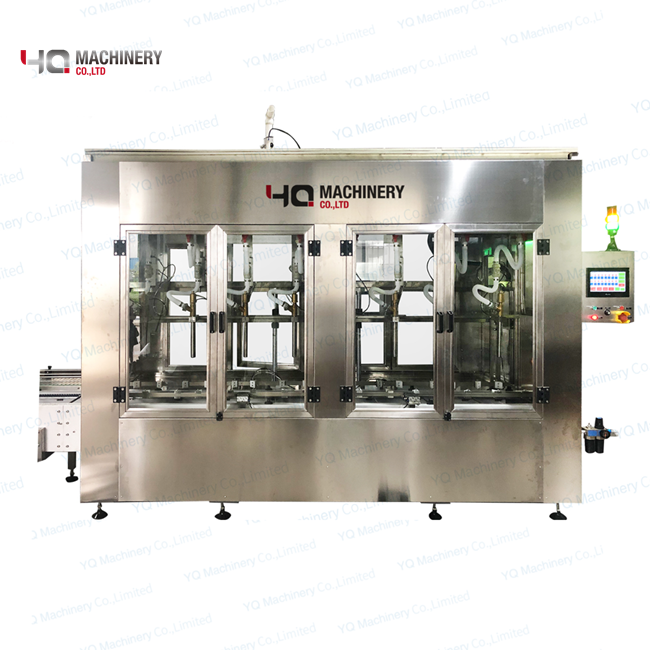

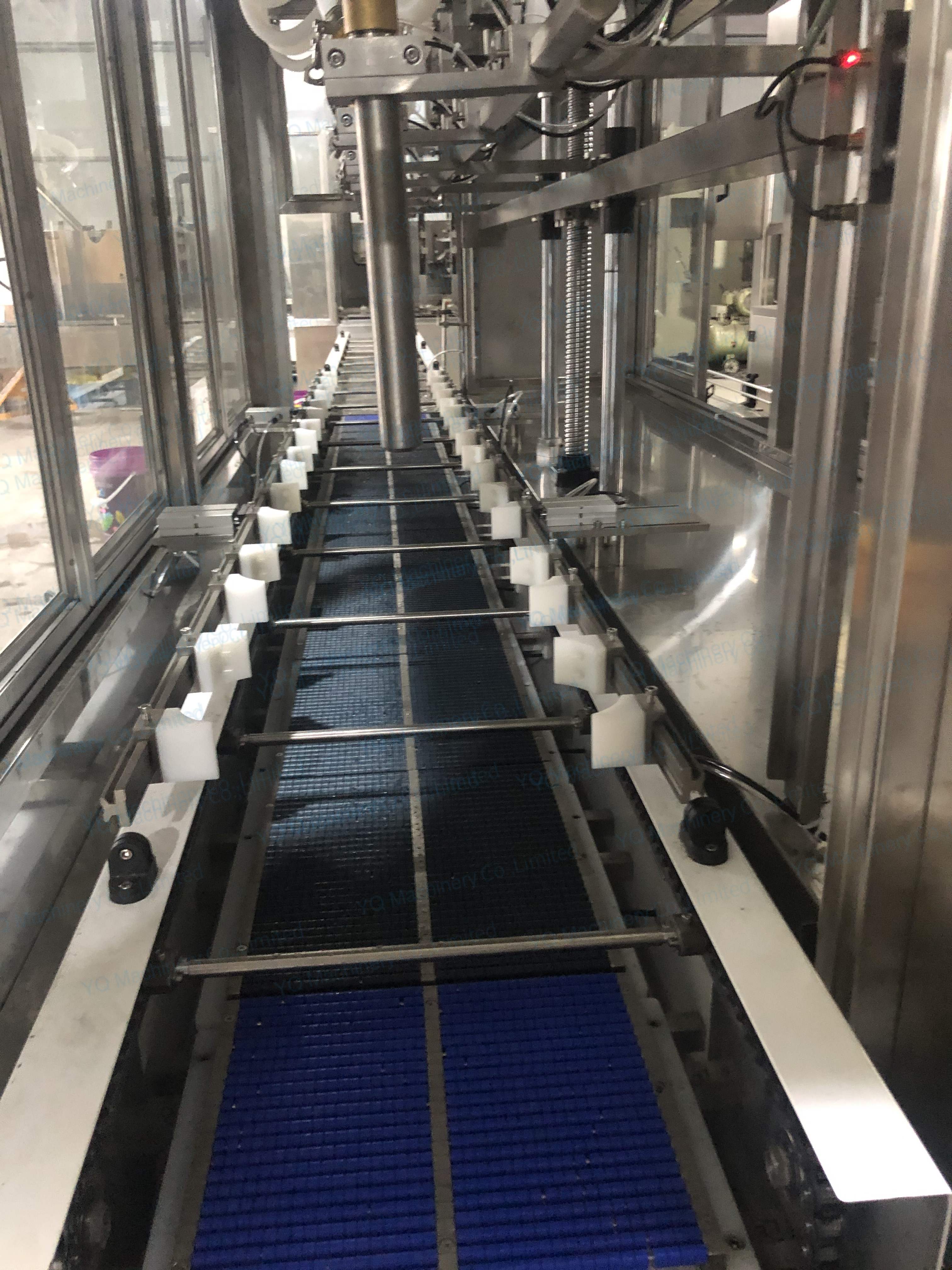

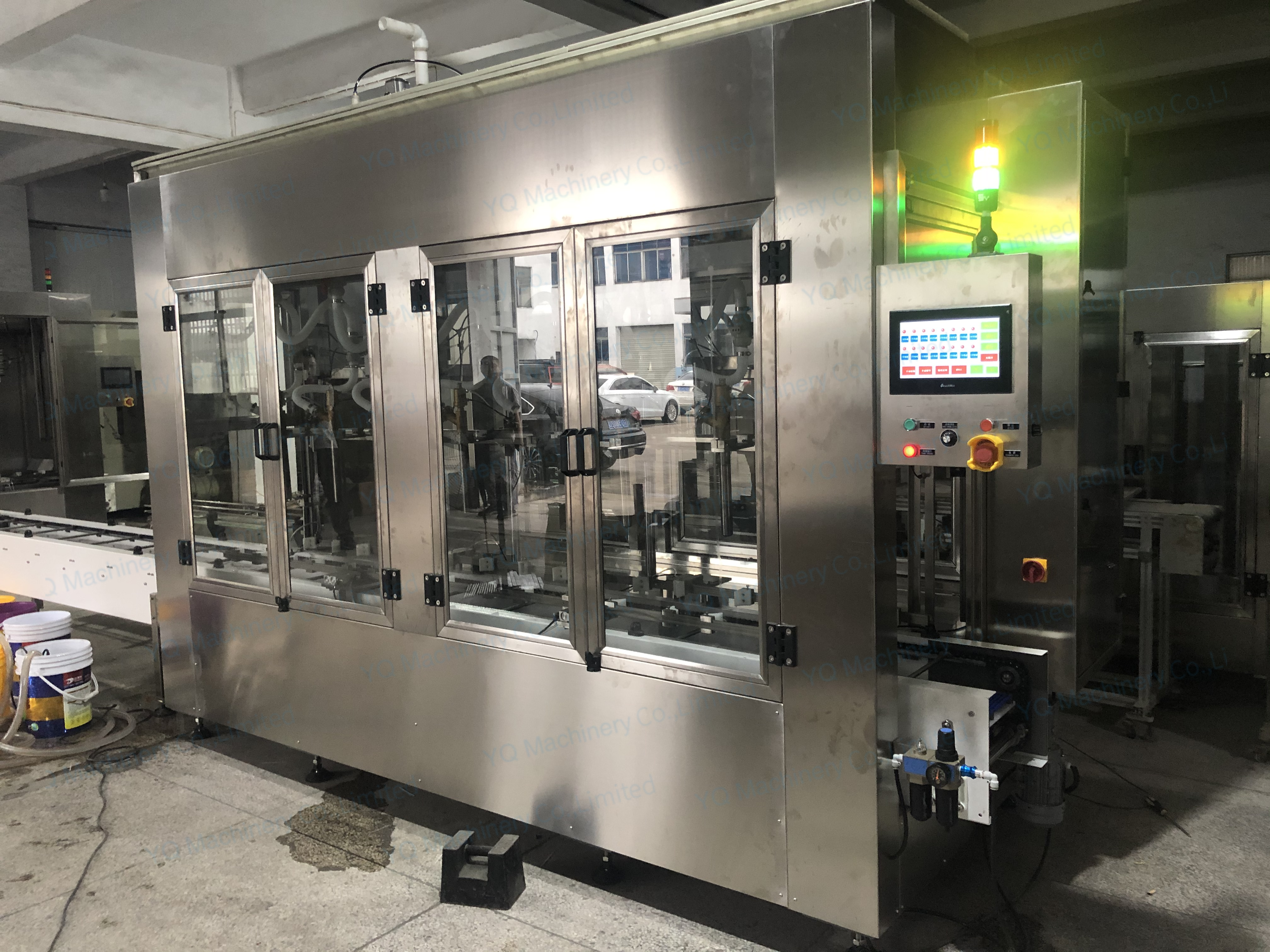

This automatic pail filler is designed for filling open-top, five gallon pails with a viscous liquid in a three-shift operation. Empty pails accumulate to an escapement device and are released when the pail filling machine discharges a full load.
This bucket filling machine is suitable for filling 5kg-30kg of fluid by weight. A series of operations such as counting into bottles, counting weight filling, and conveying out bottles are completed automatically. It is especially suitable for the quantitative filling of bleaching agent, edible oil and lubricating oil. It is an ideal packaging machine for food, medicine, cosmetics and fine chemical industries
Advantage:
A.Filler frame top mounted supply tank with float switch control to maintain fill head pressure,
B,Nozzle timing protocol is PLC controlled for high accuracy fills,
C.Automatic drip tray,
D.Automatic supply regulation,
E.Precision manual bottle height adjustment,
F.Automatic drain and clean cycle,
G.Batch bottle counter,
H.Diving Nozzles for Sub Surface Filling of Foaming Products.
Features:
1. This pail filling machine adopts programmable controller (PLC) and touch screen for operation control, easy to use and adjust.
2. Each filling head has a weighing and feedback system, which can set the filling volume and individual micro-adjustment of the filling volume of each head.
3. Photoelectric sensors, proximity switches, etc. are all advanced sensing elements, so that no barrels are not filled, and the host will automatically shut down and alarm when the barrels are blocked.
4. The filling method is submerged, which can effectively reduce the generation of foam and can meet the filling of materials with different characteristics.
5. The whole bucket filler machine is manufactured in accordance with GMP standard requirements. Each pipeline side connection adopts quick installation method, which is convenient and quick to disassemble and clean. The parts contacting with materials are made of anticorrosive materials. The whole machine is safe, environmentally friendly, hygienic and beautiful, and can adapt to work in various environments.
Technical parameter
Nozzles | Suitable bottles | Capacity | Machine size | Power | Power supply | Precise |
2 | Length: 160-360m Width:100-300mmm Height:250-500mm Neck diameter:≥40mm(can be customized) | 30kg 200BPH | 2000*1700*2300MM | 2KW | AC220V/380V 50/60HZ | ±0.5% |
4 | 30kg: 350BPH | 2500*1700*2300MM | 2KW | |||
6 | 30kg: 520BPH | 3500*1700*2300MM | 2KW | |||
8 | 30kg: 600BPH | 4500*1700*2300MM | 2.5KW |
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our service
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
