Introduction:

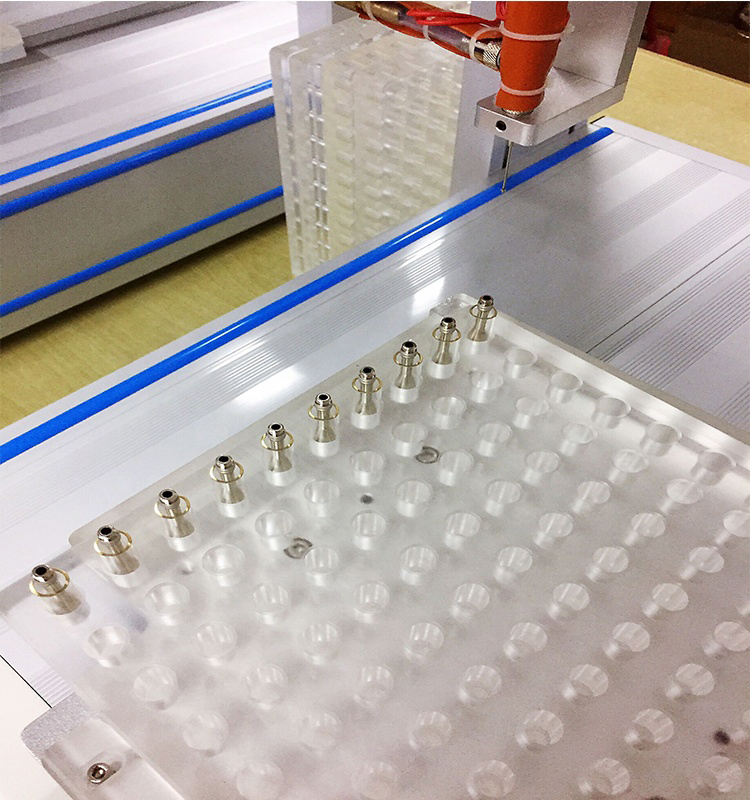

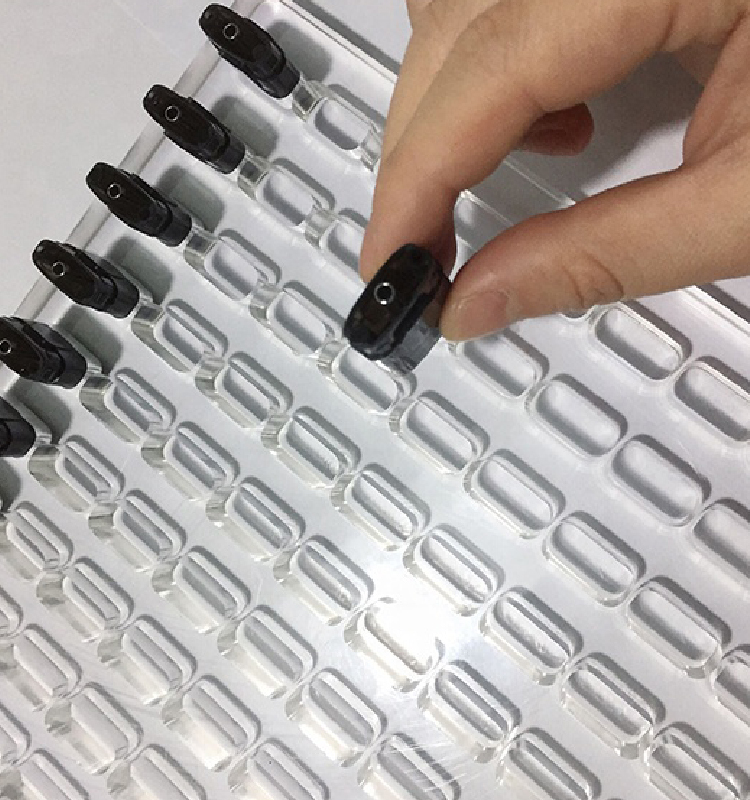

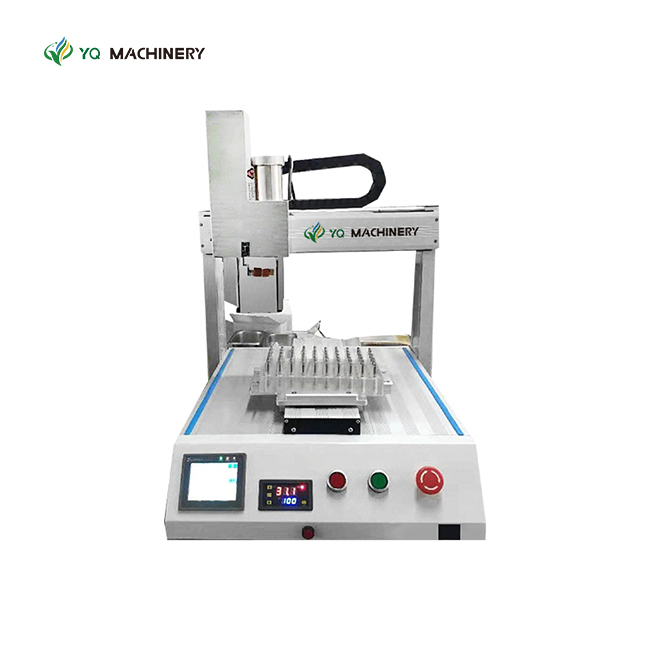

Semi-automatic high concentration smoke bomb, atomizer injection machine suitable for a variety of types of atomizer injection oil. It’s an ideal micro-oil injection which is accurate and high efficiency.
The automatic smoke oil injection machine operation is simple, pressing buttons can complete an atomizer positioning and oil injection work. The general staff familiar with the function of the equipment can be operated.
Feature:
1. Drive mode Step: Into motor + rail drive
2. A rotary oil-filled gland is used.
3. The screw rod controls the oil filling.
4. It adopts PLC programmable controller, display and control touch screen, and operation can be performed on the touch screen; Chinese and English interface.
5. Panel control: touch screen, operation button, emergency stop
6. Programming interface: man-machine interface
7. Interface control: position adjustment, fuel injection adjustment, speed adjustment, program selection.
Main technical parameters:
Maximum oil injection | 2ML | |
Accuracy | ±1% | |
Effective stroke (X/Y/Z) axis | 300*300*100(mm) | |
Production | 600-1500PCS/H | |
Input voltage | AC110V/220V | |
Power | 400W | |
Working environment temperature | 10-40 ° C | |
Working environment humidity | 20-90% | |
Weight | ≤55KG | |
Maximum load weight Workbench | 6kg Z axis: 5kg | |
Control | PLC | |
Power supply | AC220V/110V |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
