The e-Cigarette industry need a loyal e-Liquid filling supplier. YQ MACHINERY has rich experience of E liquid filling, capping, labeling, as well as E juice bottle boxing machine. Whether you provide a specific product or general service, we know that the best solution of E liquid filling line will be offered to you. Therefore,true service-after-the-sale will serve you well..
YQ machinery offers you a variety of e-Liquid metering systems from piston to peristaltic;from semi-automatic machines to our scalable, mid-level intermediate automatic E liquid filling, capping, and labeling system.
YQ MACHINERY has the right e-Liquid bottling system for your specific stage of growth. Our E Juice filling systems offer you a range of options.The contact parts that are easy to clean and have a quick changeover process. As noted,we will sacrifice quality, accuracy.
One of our Malaysian customer bought an E Cigs Liquid filling machine and e juice bottle labeling machine.we use piston filling system because volume is 60ml.
Here is video and you can see how this e liquid bottling machine work pretty good:

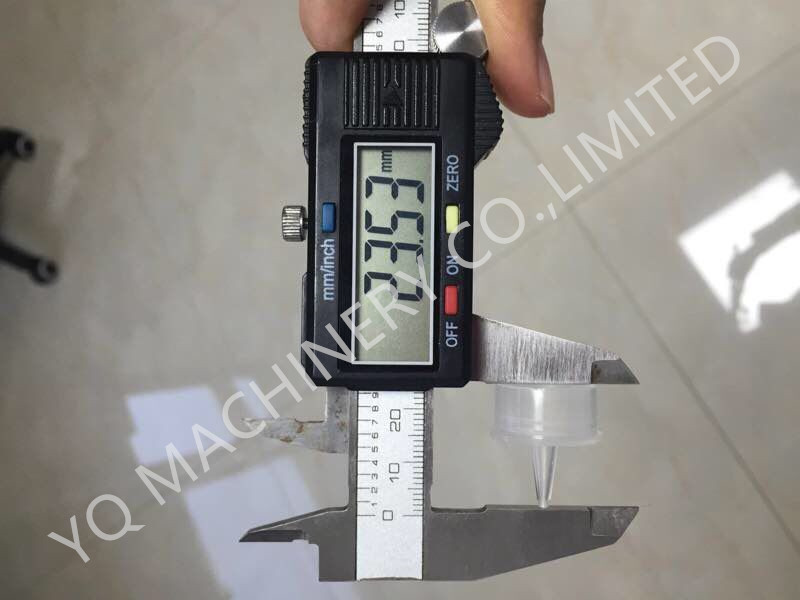

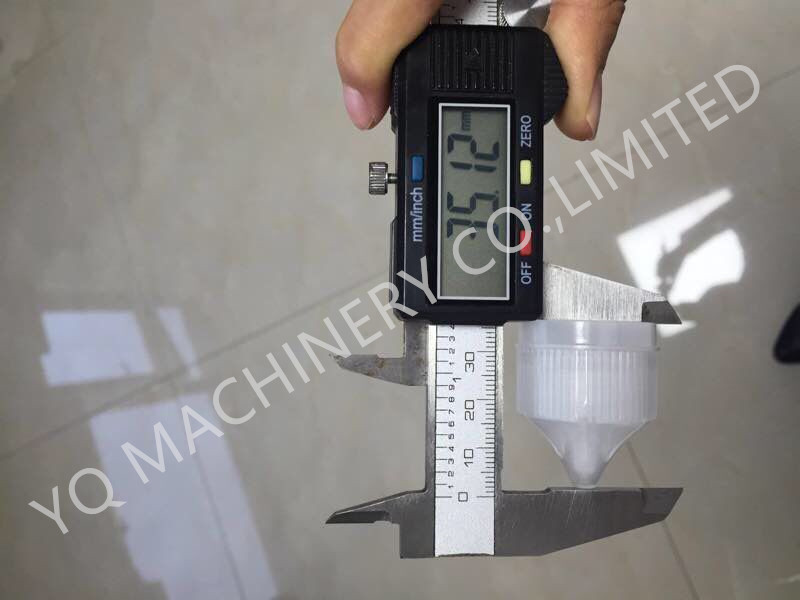

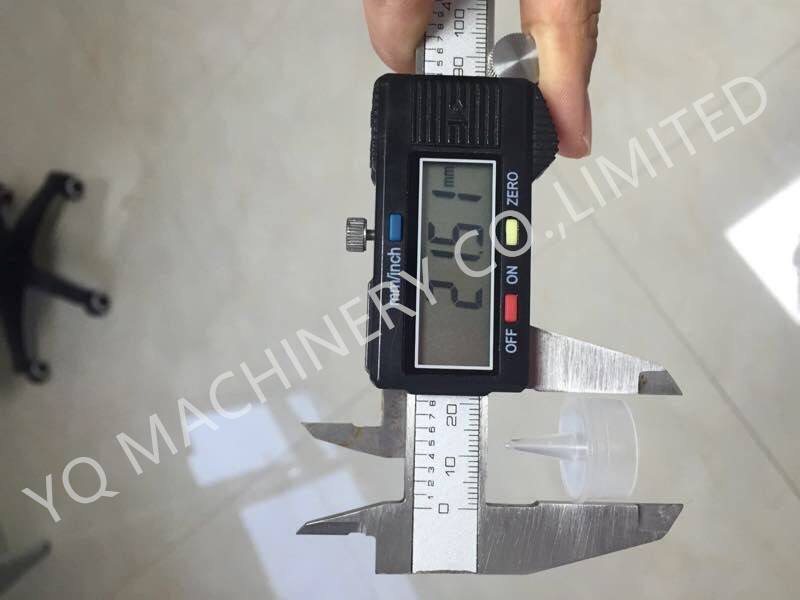

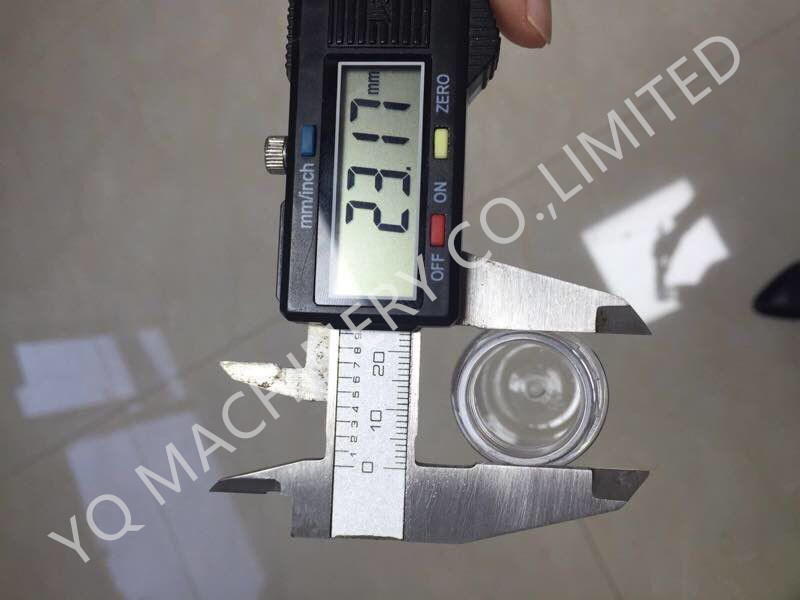

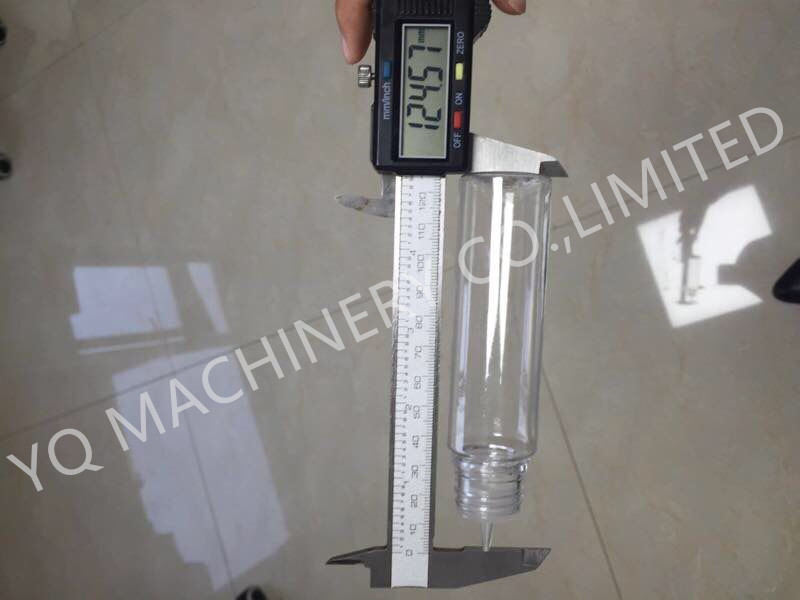

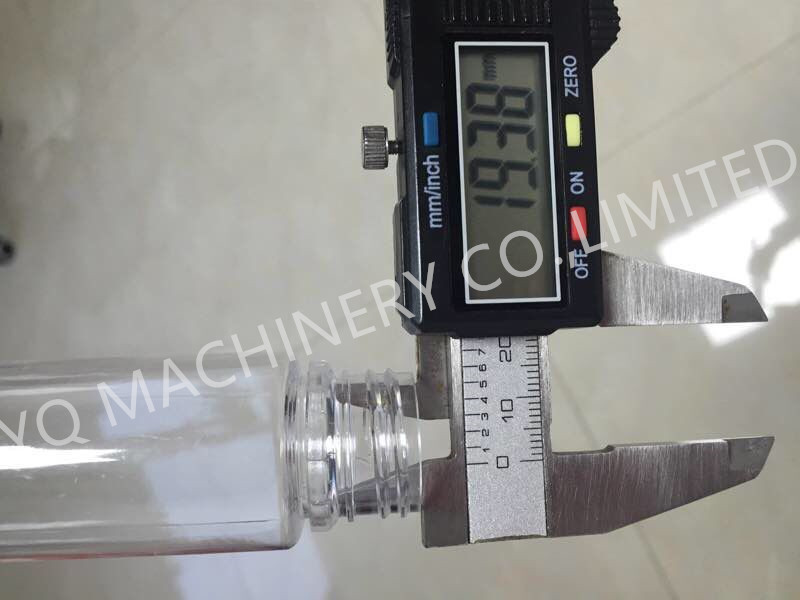

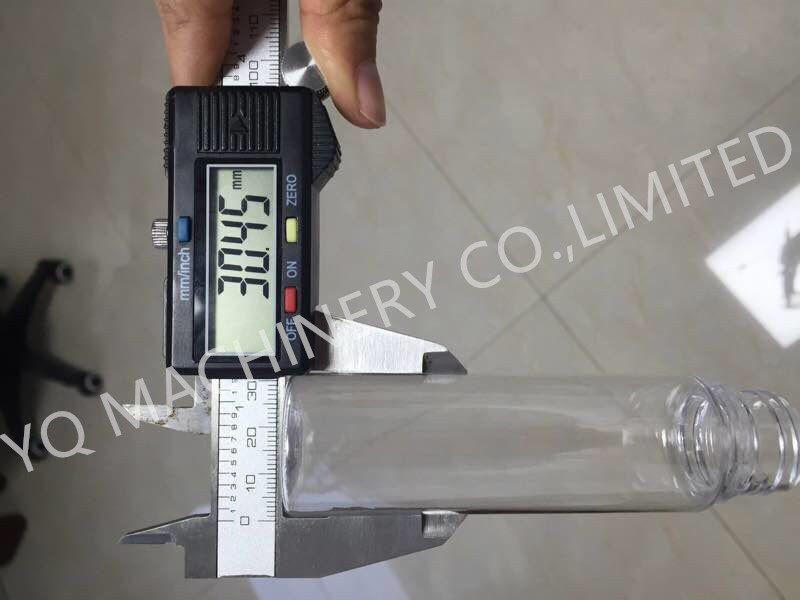

Below is the samples of e juice bottles for filler and labeler:

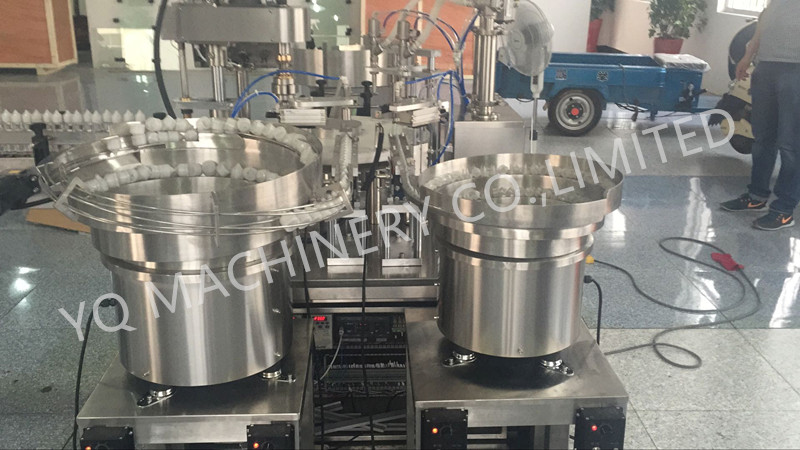

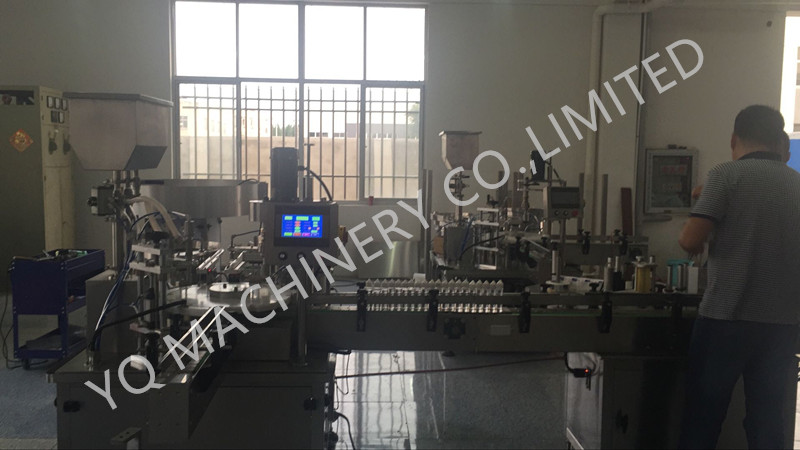

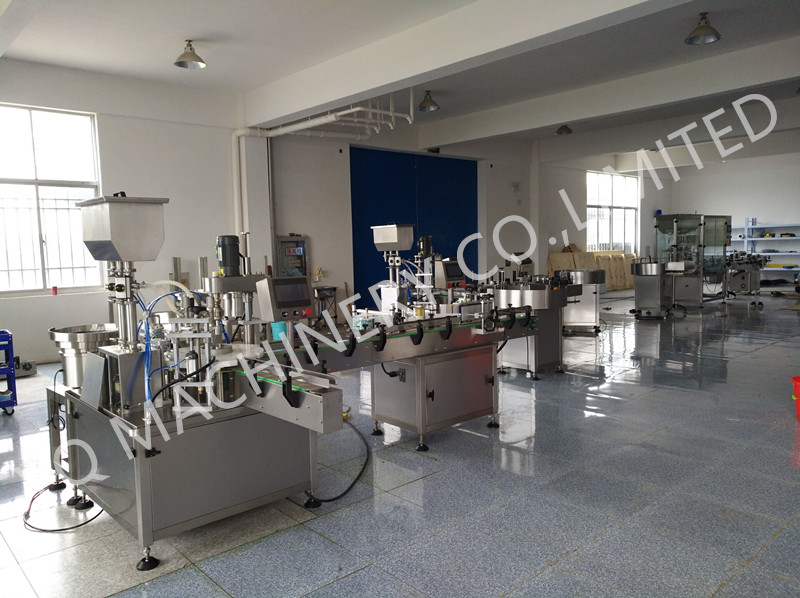

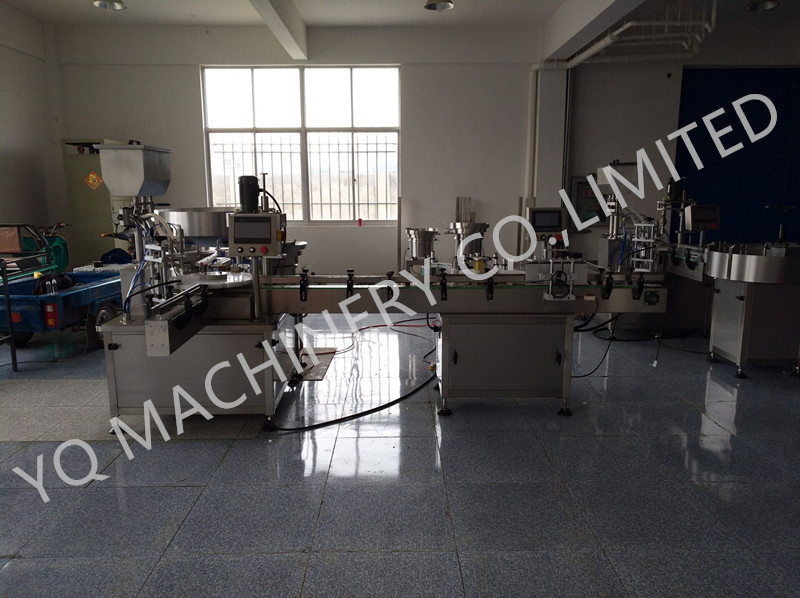

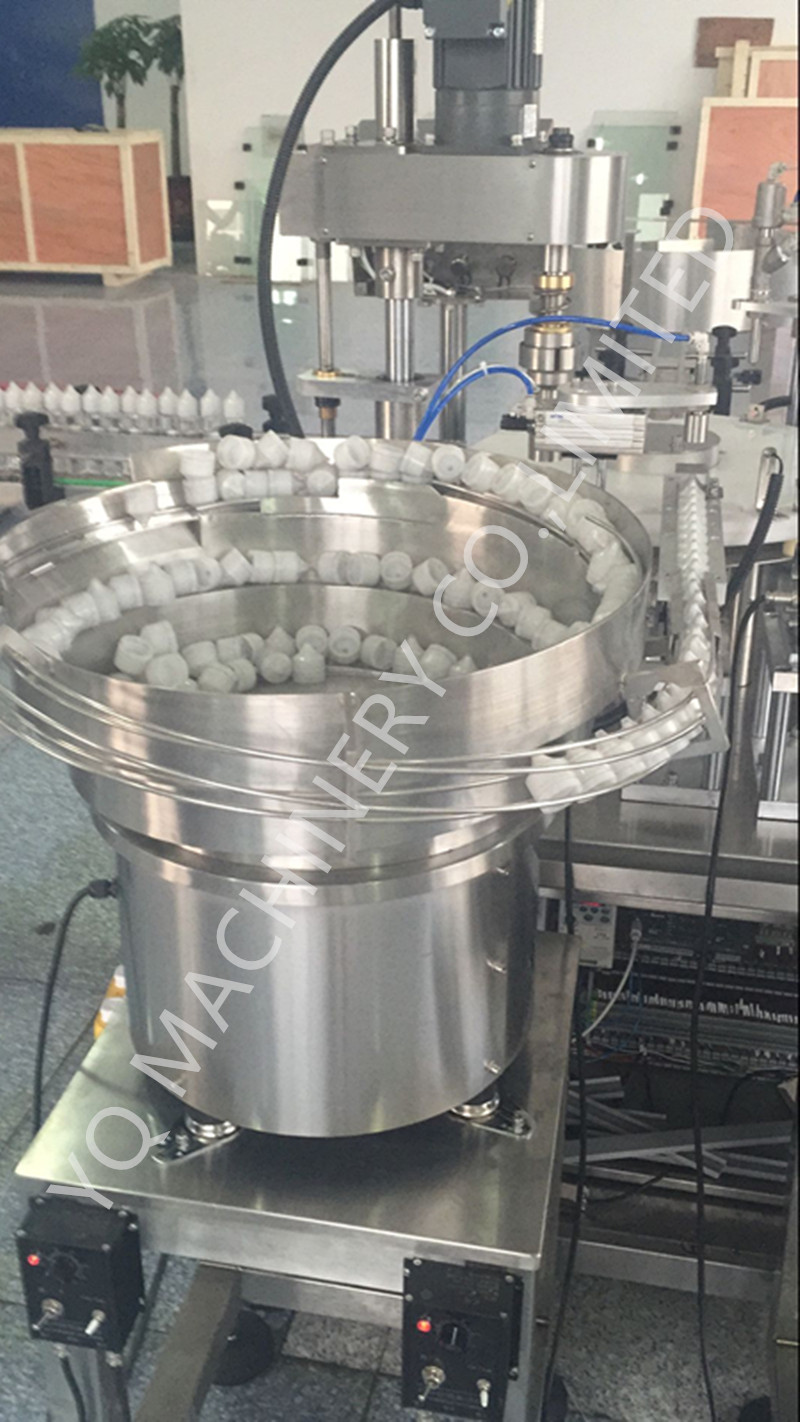

Details of E juice filler plugger and capper machine:
Main performance and structure features:
This E liquid filling plugging and capping machine is suitable for the filling of 10-100ml liquid. Mainly used for the filling linkage production of various liquid materials in pharmaceutical, food, chemical industry.The E juice filling production line is fully compliant with the GMP requirements.
1. No bottle no filling,no bottle no capping,suck out foam.
2. Outer material is stainless steel, it complies with GMP regulation.
3. Capping by manipulator automatically.
4. Easy operation and convenient maintenance.
5.Microcomputer setting, PLC control, touch screen operation, it is high automated, easy to operate with stable performance
6.it can work both alone an together with other machines.Such as bottle unscrambler/turntable,labeling machine,cartoning machine and so on.
Description:
(1)The automatic vape oil filling plugging capping machine is mainly designed for small bottles and suitable for filling liquid like essential oil, eye drops, electronic cigarette and so on.
(2)The automatic e liquid filling capping machine adopts the peristaltic pump metering or piston pump, It can automatically unscrambling bottle, filling and pressing the inner plug, screwing capping , labeling.
(3)The e juice filling machines is applicable to different kinds of bottles, including plastic bottles, glass bottles, tubular bottles and electronic cigarettes dropper bottle, suitable for liquid ,oil and various kinds of fluid filling with the range from 10ml-100ml.
(4)The automatic vape oil filling capping machine's part which touches the liquid medicine is made of stainless material completely, meeting the requirement of GMP.
Technical Parameters:
Applicable specifications | 10-100ml |
Filling head | two heads(when fill 60ml,we use piston pump) |
Production capacity | 20-50 bottle /min
|
Filling accuracy | ±1% |
Capping rate | ≥99% |
Power supply | 220V / 50Hz 60Hz |
Power | 2kW |
Total dimension | 2500 * 1000 * 1500MM |

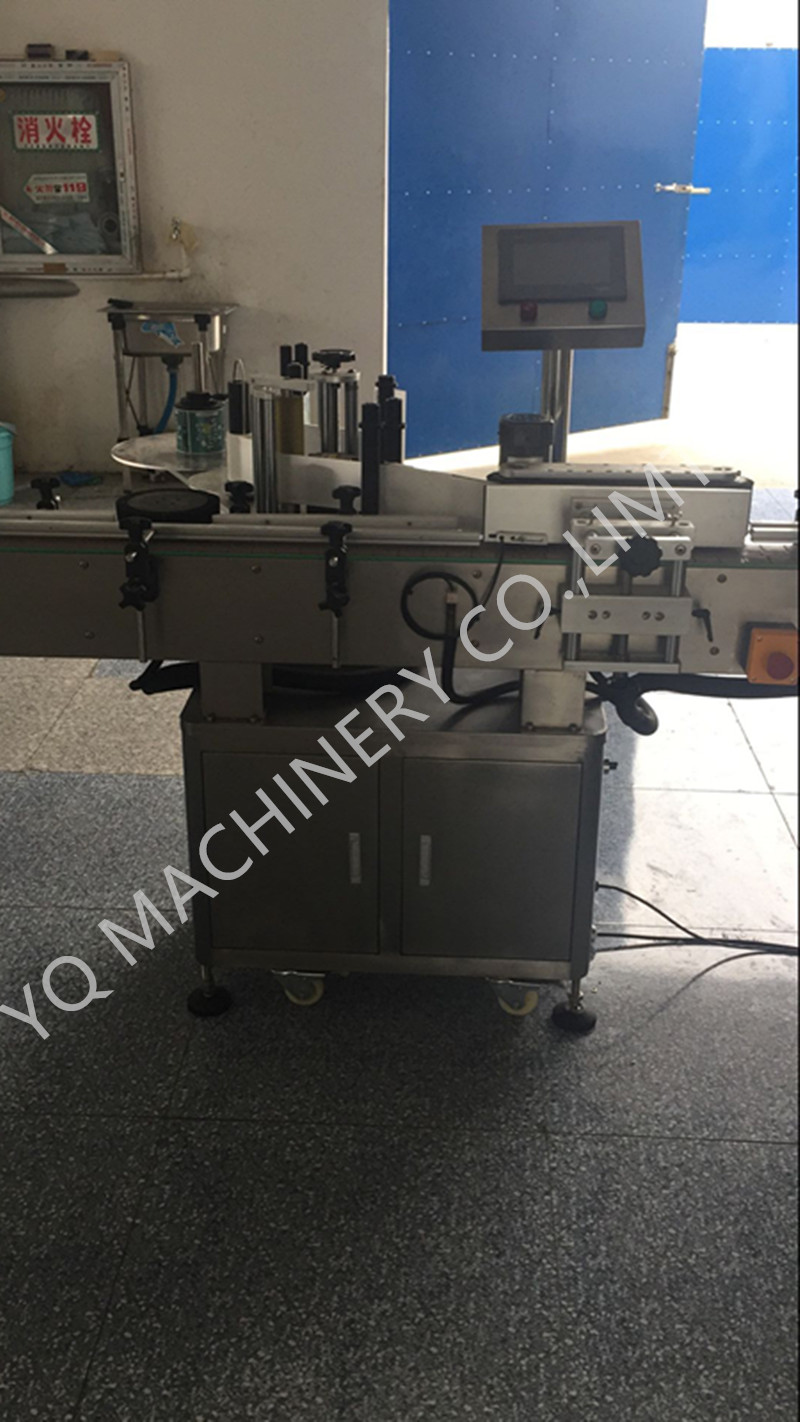

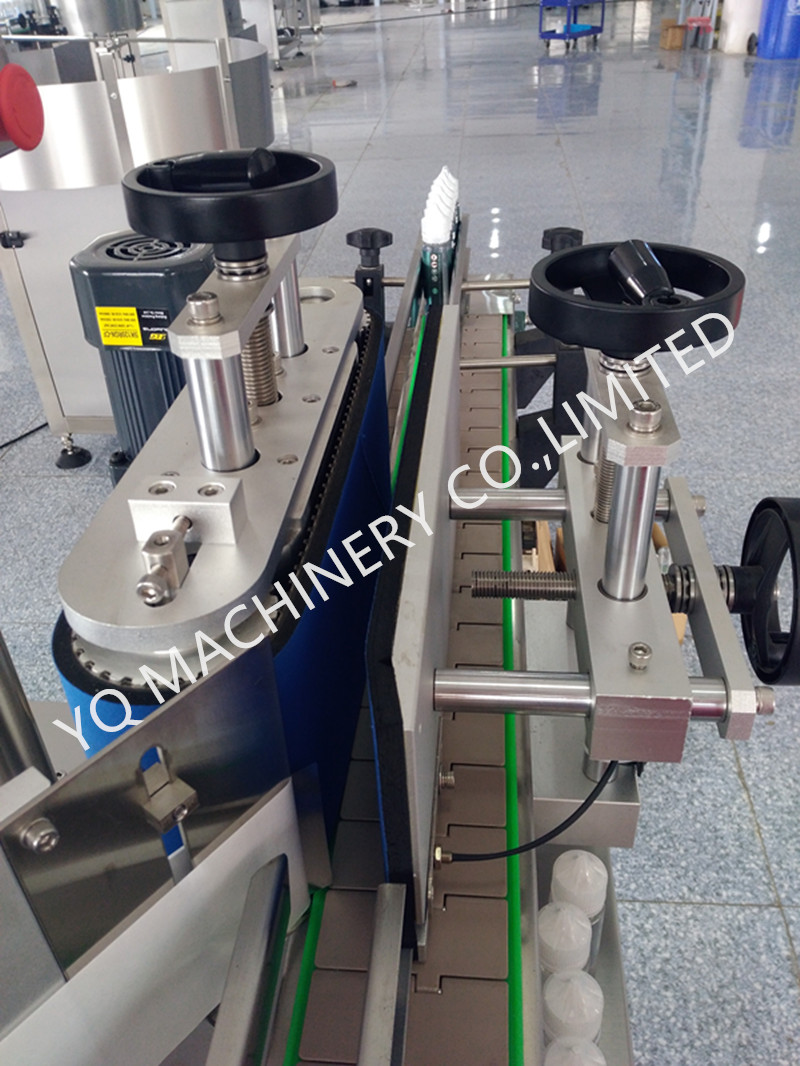

Labeling Machine for E liquid bottles:
Features for this e juice bottles label machine:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
After finishing testing,they are sent to Yiwu according to our client's requirement:

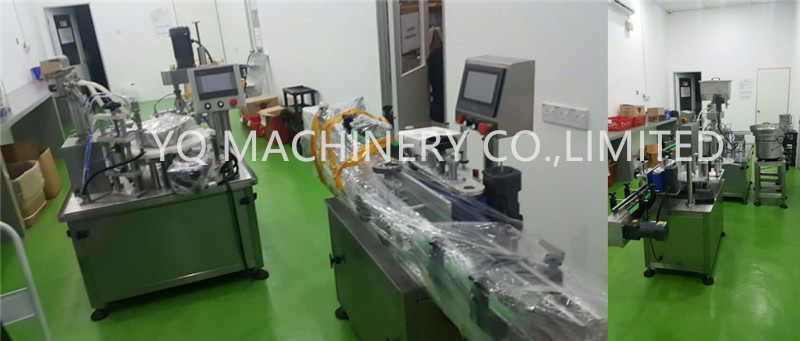

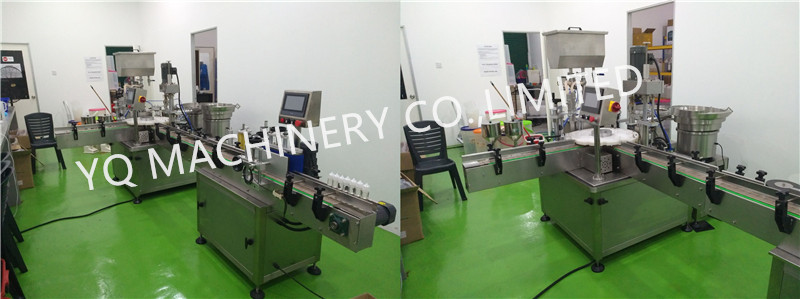

The e-cigarette filling plugging screw tightening and labeling machines was in our client's factory and our engineer went there to install the machines.
