YQF-C1000
YQ
Specifications:
1.Offer 6/8/12/16/20 filling heads
2.Filling liquid/paste
3.PLC control system
Description:
The machine adopts the world-class brand of electrical components with microcomputer (plc) automatic control function compact, long service life of components, easy maintenance, safe and reliable, low noise, simple operation, accurate and convenient measurement adjustment. The adjustment of filling capacity only needs to be "touched at will" on the computer interface without any additional operation. All the parts touching the liquid are made of non-metallic materials, and the surface is polished. They are beautiful in appearance, generous (can be added with a fully closed device) and do not pollute the environment. They are especially used in the packaging of strong acid and alkali liquids.
1. It is especially suitable for packing strong acid and strong base liquids.
2. Adopt PLC and touch screen control.
3. Conform to the GMP standard.
4. Use international famous brand parts
Main performance and structure features:
The whole machine adopts anticorrosive PP material.

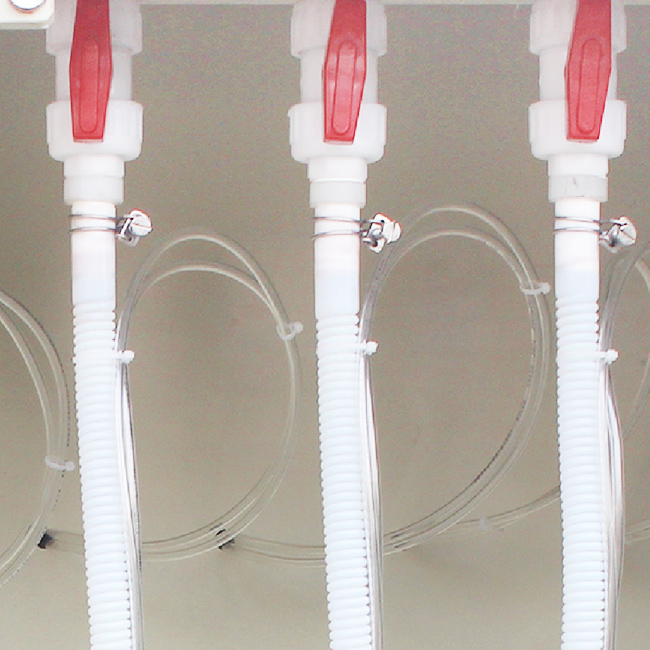

The feeding pipe is made of titanium alloy with high strength and corrosion resistance.
Aviation pipeline plug, waterproof, electricity-proof and dust-proof, safe and reliable.
Independent anti-corrosive appliance control cabinet, safe and reliable.
1.Control system - with Mitsubishi PLC control system, filling dose of random tuning
2.Operation interface - colorful screen interface, human-machine interface is simple, safe and reliable
3.Feature Enhancements - Cutting with anti-drip device, it can dive to fill with materials. (This feature can be optional)
4.Electrical components - using internationally renowned brands to ensure the equipment is reliable and of high accuracy.
5.Mechanical components - the main parts is made of high quality stainless steel frame
6.Extensions - can be customized for specific configuration requirements, such as: material sealed, heating, sterilization, etc..
7.Count testing - real-time count, reflecting on the work output directly.
8.Filling And Capping Detection - No bottle, No filling ;or when bottle filling number is not enough, no filling
Technical Parameters:
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQF-C20D | 20 | round barrel: height:80-280mm diameter:Φ40-100mm drum: length:80-120mm width:40-80mm height:80-280mm | 200ml:≤8000 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 1.5Kw | 220/380V 50,60HZ | 0.6MPa |
YQF-C16D | 16 | 200ml:≤6000 | 2000*1100*2200 | 1.5Kw | ||||
YQF-C12D | 12 | 200ml:≤5000 | 2000*1100*2200 | 1.0Kw | ||||
YQF-C8D | 8 | 200ml:≤3000 | 1800*1100*2200 | 1.0Kw | ||||
YQF-C6D | 6 | 200ml:≤2000 | 1600*1100*2200 | 1.0Kw |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
