YQAC-1000
YQ
Corrosives Bottling Equipment
Introduction of liquid filling machine

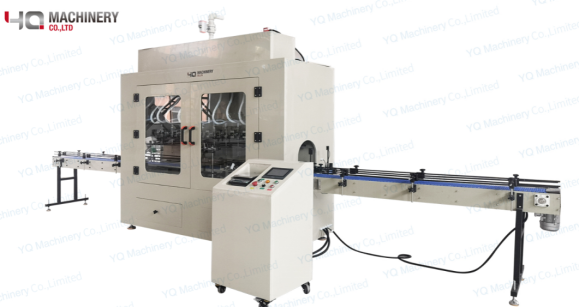

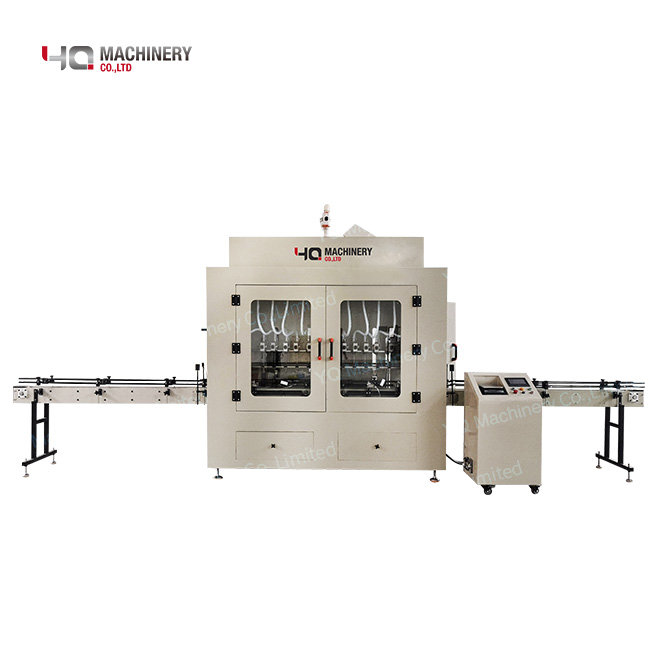

Fully automatic inline anti-corrosive filling machine is simple design, convenient operation, stable and reliable. The whole bottling machinery is made of non-metallic PP materials, especially suitable for the filling of super strong corrosion, which can meet the filling requirements of containers of various shapes.
Performance advantages of corrosives bottling equipment:
1.Control system—Adopt well-known PLC control system, random fine adjustment of filling dose.
2.Operation interface—man-machine operation interface is simple, safe and reliable.
3.Function improvement—the material has anti-drip device, and also have diving function according to the material characteristics. (optional)
4.Electrical components—all adopt internationally renowned brands to ensure the safety, reliability and high accuracy;
5.Function expansion—special requirements can be customized according to customer requirements, such as: material sealing, heating, sterilization, etc.
6.Counting detection—real-time counting, intuitively reflecting the output.
7.Filling test—no bottle no filling
8.Maintenance situation—This filling equipment complies with GMP requirements and can be easily disassembled, cleaned and maintained.
9.Change specifications—when changing the filling specifications, only simple adjustments are needed to be done easily.
10.Environmental protection configuration—equipped with an environmental protection frame to make the filler machine's operating environment more clean and hygienic.
Main performance and structure features:
The whole machine adopts anticorrosive PP material.

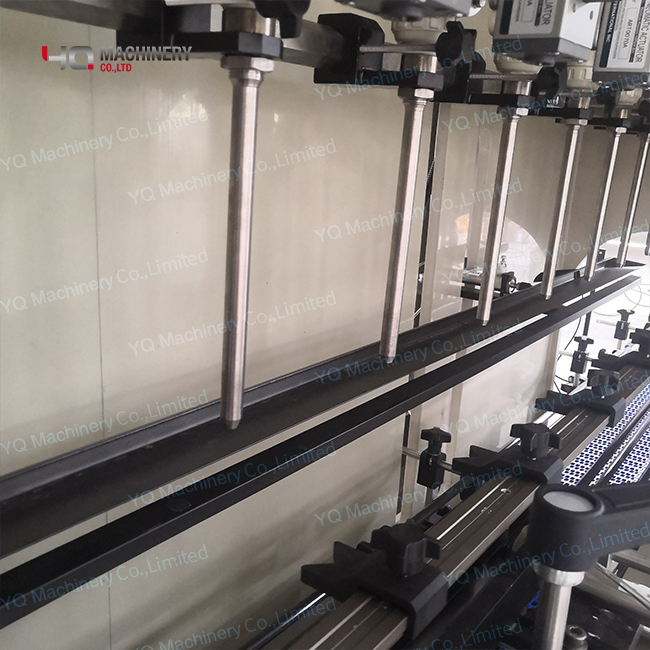

The feeding pipe is made of titanium alloy with high strength and corrosion resistance.
Aviation pipeline plug, waterproof, electricity-proof and dust-proof, safe and reliable.

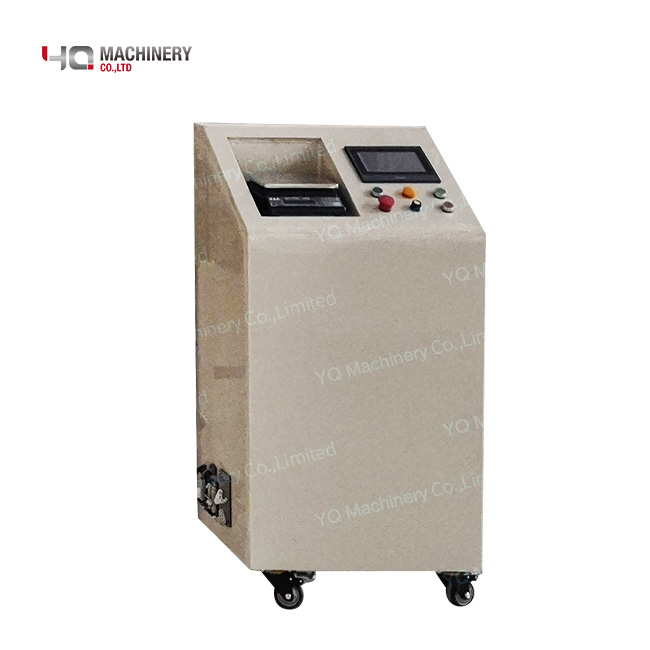

Independent anti-corrosive appliance control cabinet, safe and reliable.
Technical Parameters:
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQF-C20D | 20 | bottle: height:80-280mm diameter:Φ40-100mm pail: length:80-120mm width:40-80mm height:80-280mm | 200ml:≤8000 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 1.5Kw | 220/380V 50,60HZ | 0.6MPa |
YQF-C16D | 16 | 200ml:≤6000 | 2000*1100*2200 | 1.5Kw | ||||
YQF-C12D | 12 | 200ml:≤5000 | 2000*1100*2200 | 1.0Kw | ||||
YQF-C8D | 8 | 200ml:≤3000 | 1800*1100*2200 | 1.0Kw | ||||
YQF-C6D | 6 | 200ml:≤2000 | 1600*1100*2200 | 1.0Kw |
How to adjust the anti-corrosive filling machine
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
