YQBF-1000
YQ
Introduction:

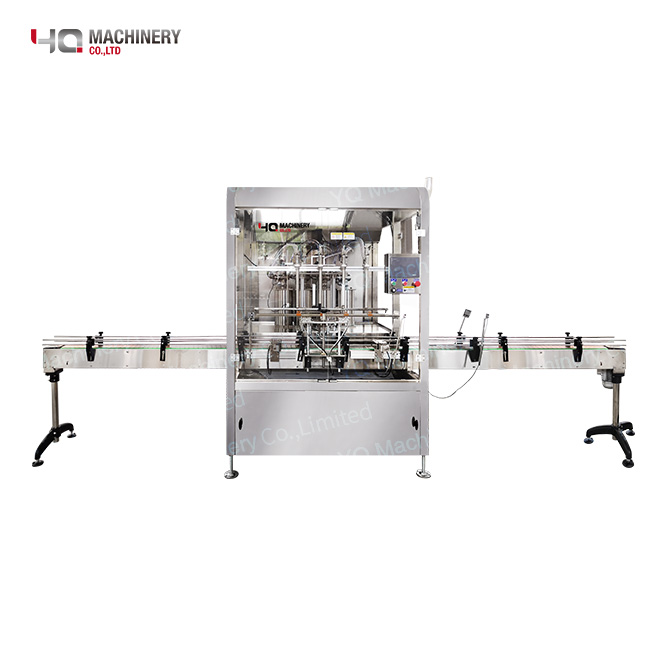

This gel filling machine is a high-tech filling equipment that is programmable by a microcomputer (PLC), photoelectric sensor, and pneumatic execution. This model is specially used for daily chemicals, such as: shampoo, shower gel, hand soap, laundry detergent and other liquid and paste filling. The filling and measuring is accurate, without bubbles and drips. Suitable for filling various bottle types (including guide-shaped bottles) of 100-1000ml
Feature of bottle filling equipment:
A.This piston filler is suitable for the filling of different containers. The different containers can be switched within a few mins, the filling cycle is short and the production capacity is high. The replacement of different container does not need to add spare parts, it can be completed only by adjustment. Users can choose the filling machinery according to their own production capacity to determine the number of filling heads. Touch panel can display production status, operating procedures, filling methods, etc. , The screen is intuitive, easy to operate and easy to maintain. Each filling head is equipped with a bottle mouth setting to ensure accurate filling of the material.
B. The design adopts linear feeding and discharging methods to expand the filling function. Containers of various shapes can be effectively filled in this equipment. The international advanced gas filling valve is selected to ensure that the filling process has no drips and salivation. The powerful PLC software support can realize the ideal filling operation. Interface, all operations are completed on the touch color screen.
C. The measurement of each filling head can be adjusted individually to achieve consistent filling measurement. The filling system has set up the bottle feeding technology program. No bottle, not enough, no filling. Only when the number of bottles reach to set amount by the counter, can the filling be started. The filling volume can be adjusted initially to the required filling volume and then fine-tuned to obtain the ideal filling measurement accuracy.
Note: The filling volume and capacity can be designed with different filling heads according to user requirements.
Advantage of linear filling machine
①The use of world-famous brands of electrical appliances and pneumatic components, low failure rate, reliable performance and long service life.
②Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements
③The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, with beautiful appearance;
④With no bottle and no filling function, the liquid level automatically controls the feeding;
⑤ You can quickly adjust bottles of different shapes and specifications without replacing parts;
⑥ The filling head is equipped with a special leak-proof device, and the filling is absolutely free of wire drawing and dripping.

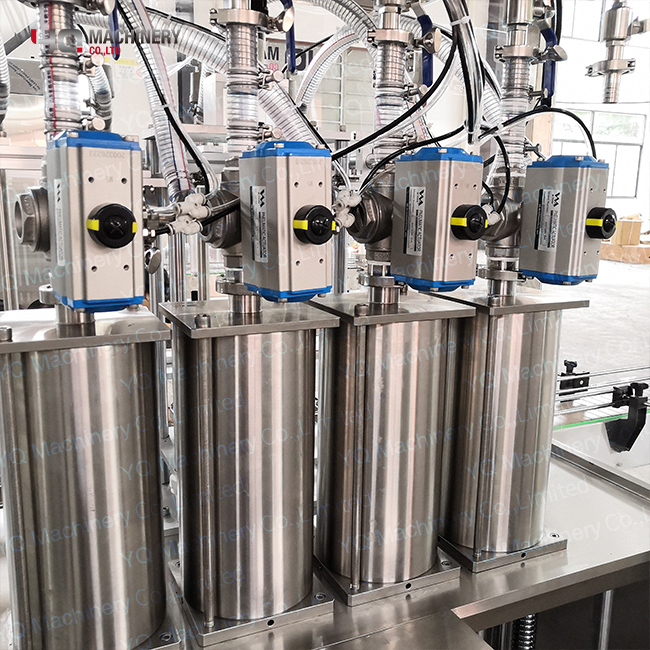

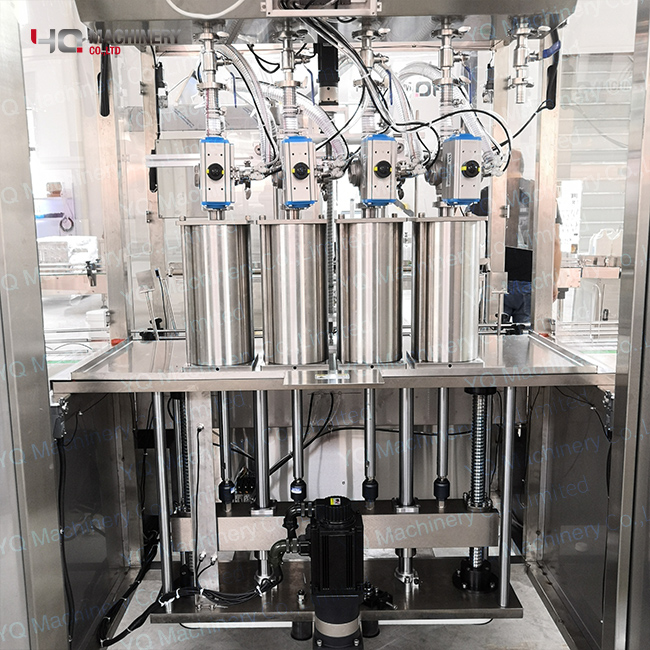

Stainless steel, anti-drip filling head, dive filling | Equiped with servo motor to adjust filling volume accurately |

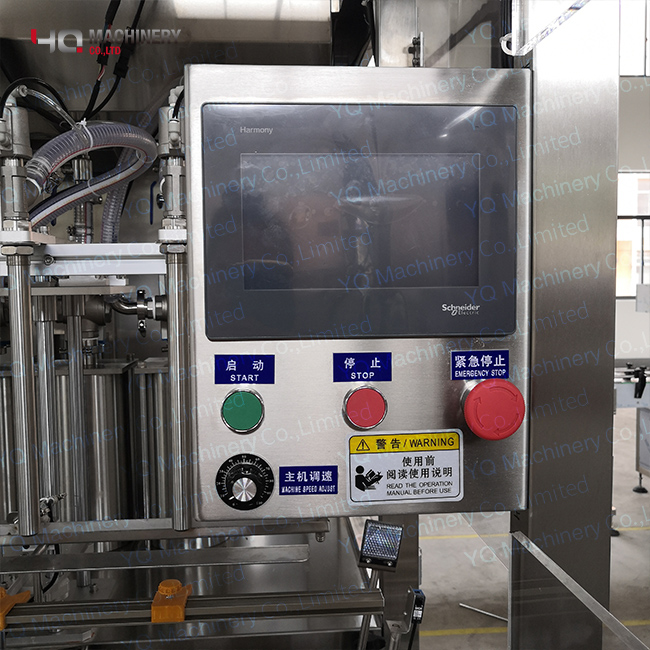

Touch screen(Schneider) | One button cylinder removal The system setting button can be used to dismantle the cylinder for easy cleaning and replacement |
Technical Parameter of piston pump filling machine:
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQLF-Z20D | 20 | height: 100-280mm diameter: Φ30-110mm | 200ml:≤7500 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 2.5Kw | 220/380V 50/60HZ | 0.6MPa |
YQLF-Z16D | 16 | 200ml:≤6500 | 2000*1100*2200 | 2.5Kw | ||||
YQLF-Z12D | 12 | 200ml:≤5000 | 2000*1100*2200 | 2.0Kw | ||||
YQLF-Z8D | 8 | 200ml:≤3500 | 1800*1100*2200 | 2.0Kw | ||||
YQLF-Z6D | 6 | 200ml:≤3000 | 1600*1100*2200 | 1.5Kw |
How to clean piston pump and hopper (Optional function)
Video 2
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
