YQW-200
YQ
Introduction:

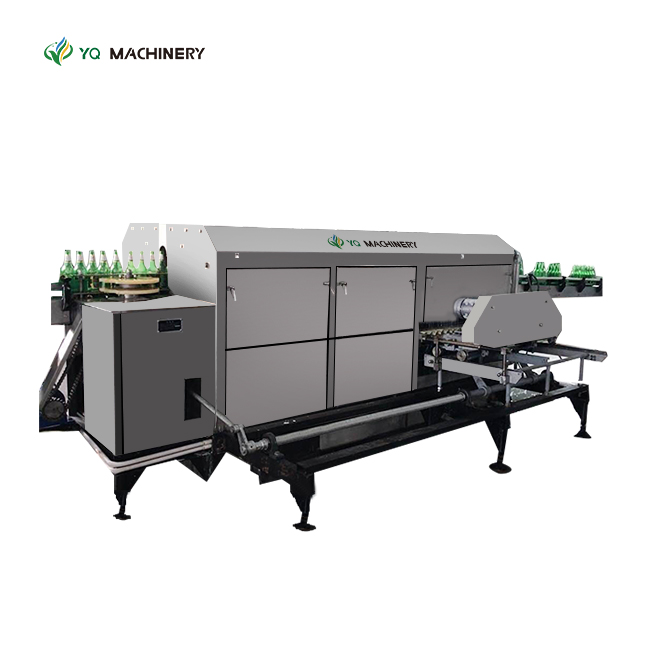

Automatic bottle brushing machine has a novel design and is suitable for various specifications of bottle washer equipment. The cleaning of recycled bottles shows its outstanding advantages.
This bottle washer machine has high degree of automation, good cleaning quality, low breakage rate,convenient operation and maintenance. At the same time, the hot alkaline water soaking process is used to solve the current clients' difficulty in cleaning the recycled bottles.
Working principle :
1.. This old bottle brush machine mainly consists of two parts: the outer brush cleaning part and the inner brush part.
2. Outer bottle washer the bottle wall at high speed, while the water spray device cleans the surface of the bottle wall. During the outer brush cleaning process, a certain amount of water is injected into the bottles at the same time, and the next inner brush process is prepared to clean the inner wall of the bottle.
3. The design of the inner brushing and draining machine is to ensure that after the bottle is soaked, the inside of the bottle can be effectively brushed at high speed.
In order to ensure the quality of brushing, the brush is arranged twice to enter at high-speed cleaning. The brushing process should keep a small amount of water in the bottle. After brushing, it will be backwashed with high-pressure water immediately, and then the bottle will be drained to enter the filling production line.
4. The main engine of the inner brush is mainly composed of the inner brush roller part and the transmission part of the inner brush trolley. The function of the transmission part is to transmit the power of the motor to each actuator through the turbine gearbox.
5. The outer brush mechanism is driven by a motor through a V-belt to drive the turbine gearbox, which is transmitted to the main gear through the chain gear, and drive the chain to move forward and play the role of conveying bottles.
6. The external gear box is equipped with five staggered nylon round brushes for forward and re
Main Function:
1. Bottle specifications: (cylindrical bottle) The equipment needs to be changed according to the bottle type.
Outer diameter: ø50-ø82mm
Height: 180-290mm
Bottle mouth inner diameter: > 15mm
2.Productivity: 5000-9000 bottles / hour
3.Remove label paper rate: > 95%
5.Broken bottle rate: < 0.9%
6.Total power: 12KW, voltage 380V
7.Total weight: 4T
Technical parameter
Production line type | 500-9000 pieces / hour glass bottle washing machine | |
Bottle cleaning method | Soaking and rinsing - high speed brushing on the inner wall and outside - rinse and drain | |
Bottle feeding method | Manually placed on the conveyor for delivery | |
Bottle type | recycling bottle | |
Power supply | 380V,50Hz,three-phase communication (can be customized) | |
Equipment composition | Soak, rinse, brush, drain, integrated machine ,conveyor and electrical control box |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
