Introduction:
carton packaging line can match with case erector and case sealer machine working together,and can finish work of carton box erecting,unpacking and sealing.
A.Case Erector And Sealer
Features
1.Advanced technology manufacturing, and advanced parts, electrical components and pneumatic components. 2.With a vertical
storage, so that you can add carton at any time, be sure the machine keeps running continuously.
3. It is suitable for one kind carton size at one time, when you need to change a different carton box. It takes about 1-2 minute.
4.Reasonable design, synchronous absorb forming, folding bottom and bottom sealing.
5.Its body and part performance precisely anddurably, operation process and no vibration, operation stability, long life span, high efficiency.
6. Equipped with blade protection device, avoid operation when he accidentally stabbed 7.It can be used separately, or contact
with the production line together
Technical Parameter:
Model | YQCE-100 |
Applicable Carton Size | L 280-500mm W 160-400mm H 180-400mm |
Transfer Speed | 20m/min |
Unpacking Speed | 5-10box/min |
Equipment Size | L2070* W2040 * H1470mm |
Applicable Power | 220/380V 50Hz |
Applicable Pressure | 6kgf/cm2 |
Maximum Power Consumption | 0.18kw |
Tape Width | 48/60/75mm |
Equipment Weight | 495kg |
Gross Weight | 550kg |
B.Case Packaging Machine
Features:
1.It clamps product into the open carton,when scratching heads up,carton discharge,sent into the sealing machine
2.PLC and touch screen control
3.It is with convenient operation,simple design,reducing quantity and intensity of labour,isanindispensable equipment for
automatic production line.
4. According to the packing requirements,it can automatically finish product arrangement
5. It is computer programmed,with a simple operation and stable performance.
Model | YQCP-10 |
Production Speed | 5-10 ctns/min |
Carton Size | L 250-450 x W 150-400 x H 100-400mm |
Power Supply | 3PH 220V/380V 50/60Hz |
Power | 4KW |
Air Pressure | 6-8kg/cm⊃2; |
Height of Work Table | Feed-in worktable 850mm; feed-out 650mm |
Dimension | L 2100 x W 2400x H 2400 mm |
Features:
1.It clamps product into the open carton,when scratching heads up,carton discharge,sent into the sealing machine
2.PLC and touch screen control
3.It is with convenient operation,simple design,reducing quantity and intensity of labour,isanindispensable equipment for
automatic production line.
4. According to the packing requirements,it can automatically finish product arrangement
5. It is computer programmed,with a simple operation and stable performance.
Technical parameter
Model | YQCP-10 |
Production Speed | 5-10 ctns/min |
Carton Size | L 250-450 x W 150-400 x H 100-400mm |
Power Supply | 3PH 220V/380V 50/60Hz |
Power | 4KW |
Air Pressure | 6-8kg/cm⊃2; |
Height of Work Table | Feed-in worktable 850mm; feed-out 650mm |
Dimension | L 2100 x W 2400x H 2400 mm |

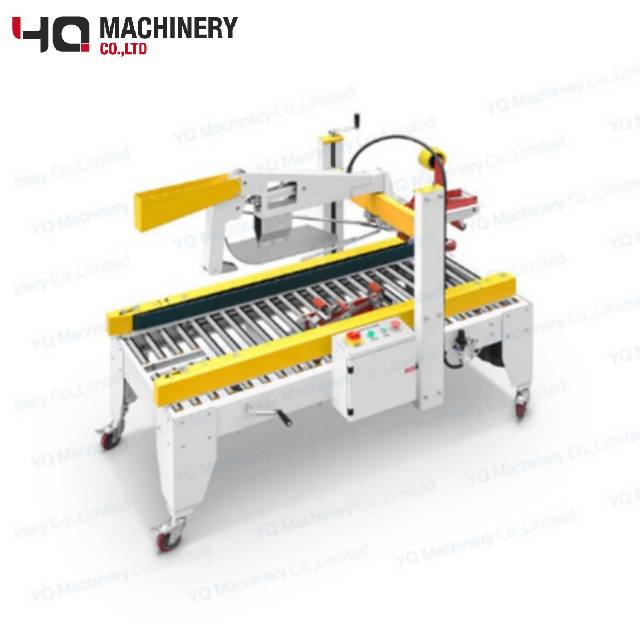

C. Case Taper Machine
Features:
1.Automatic upper flap-folding
2.Easy operation
3.New type of tape head
4.Both side compression rollers for tight sealing
5.Top mast with cushion for smooth sealing
6.Tape overlap length 60±5mm
7.Two-side belt driven with universal bearing: Precise, Low noise,Durable parts and belt
8.Caster with brake
Technical Parameter:
Model | YQCS-10 |
Applicable Carton Size | L 150-500mm W 120-500mm H 130-500mm |
Transfer Speed | 20m/min |
Equipment Size | L1800 * W980 * H1420mm |
Packing Size | L2000*W1180*H1730mm |
Applicable Power | 220/380V 50Hz |
Applicable Pressure | 6kgf/cm2 |
Maximum Power Consumption | 0.4kw |
Tape Width | 48/60/75mm |
Equipment Weight | 236kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
