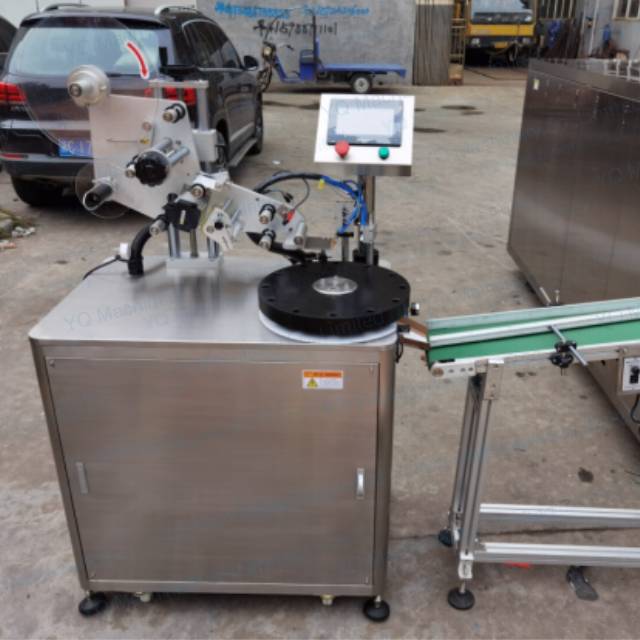

A.Top Labeling Machine
Introduction:
It is suitable for labeling various round container that cannot stand up. It can be equipped with, feeding and receiving structures according to customer needs.
Features:
•Accurate labeling by locating the container precisely by star wheel
• Brand name PLC control system with touch screen
• Stainless steel frame
• Variable speed with servo motor
• Combined with other equipment such as bottle filling machine,cartooning machine etc.
Specification:
Model | YQRL-60 |
Working direction | Rotary type-Clockwise |
Bottle diameter | 10~100 mm |
Labeling Speed | 30-60 bottles/minute |
Power source & consumption | 1 KW, 220v, 1 Ph, 50-60HZ(Optional) |
Dimensions | 1000mm×1100mm×1260 mm ( L × W × H ) |
Weight | 250kg |

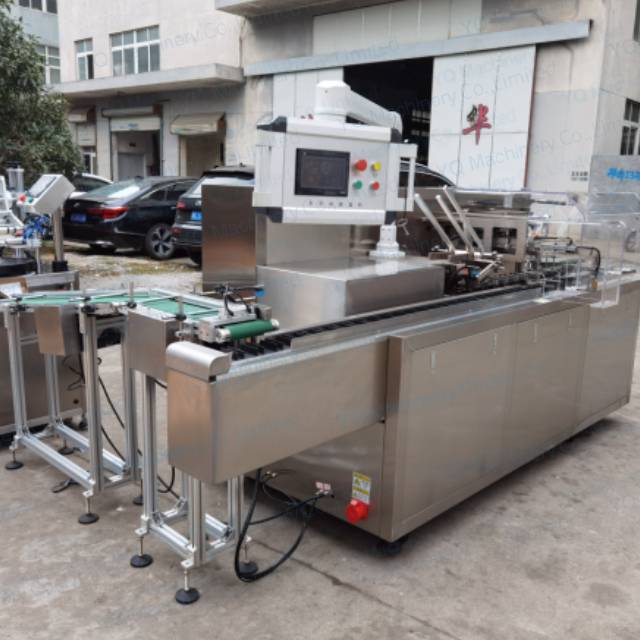

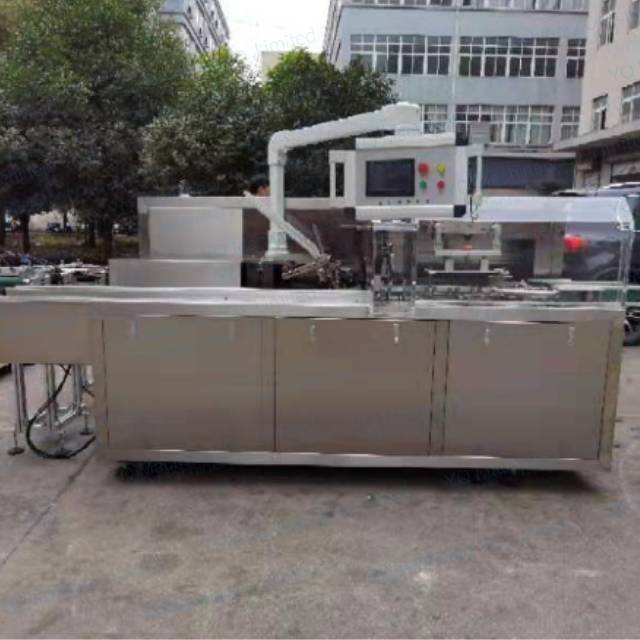

B.Cartoning Machine
Introduction:
Horizontal cartoning machine is a high-tech product integrating light, electricity, gas and machine. The working process is the conveying of products; the carton is automatically opened and conveyed, and the products are automatically
loaded into the carton; and the complicated packaging process such as paper tongues at both ends is completed. The appearance of the cartooning machines are all made of high-quality stainless steel, and innovative design is strictly in accordance with the requirements of the "GMP" standard in the different industries. The transmission part is designed with an overload protection function, and an emergency stop device is set. The operating system adopts a
man-machine interface video screen to ensure the personal safety of the operator.
Main performance and structure characteristics:
1. It adopts automatic feeding, box opening, boxing, sealing and outputting. The packaging form is compact and
reasonable, and the operation and adjustment are simple;
2. Using servo/stepping motor and touch screen, PLC programmable control system, the man-machine interface display operation is clearer and simpler, with a high degree of automation, and more humane;
3. The use of photoelectric eye automatic detection and tracking system, no product does not suck the box, saving packaging materials to the greatest extent;
4. The packaging range is large, the adjustment is convenient, and the quick conversion between various specifications and sizes can be realized;
5. There is no need to change the mold for different sizes of boxes and products, just adjustment can be realized;
6. When there is no product or the product supply is not in place, the machine will idling without pushing the
product. When the product is restored to supply, it will automatically run. The product will stop automatically when
the product is not in place. The main drive motor overload protection device is more safe and reliable;
7. Automatically display the cartooning speed and counting:
8. According to customer requirements, a flip-up safety protective cover can be used, which is easy to operate and beautiful in appearance.
9. It can realize linkage production with equipment such as aluminum-plastic packaging machine, pillow packaging machine, three-dimensional packaging machine, bottling line, filling machine, labeling machine, inkjet printer, online
weighinger, and other production lines;
10. Various automatic feeders and boxing systems can be designed according to the requirements of clients;
11. The hot melt glue spraying machine can be equipped w to seal the box according to customer’ requirements.
Technical Parameters:
Capacity | 50-80 b/min |
Packing material | the max. size 200×120×70mm |
Box quality | 250-300 g/m2 |
Operation manual | max .size 260×180mm |
paper weight | 55-65g |
Volume of consumption | 20 M3/h(pressure 0.5-0.7MPa) |
Total power | 1.5KW |
Packing material | The max. size 200×120×70mm |
Electric power | 380V 50HZ |
Overall dimension | 3700×1350×1700mm |
weight | 1200kg |
Detailed Images
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
