Features:

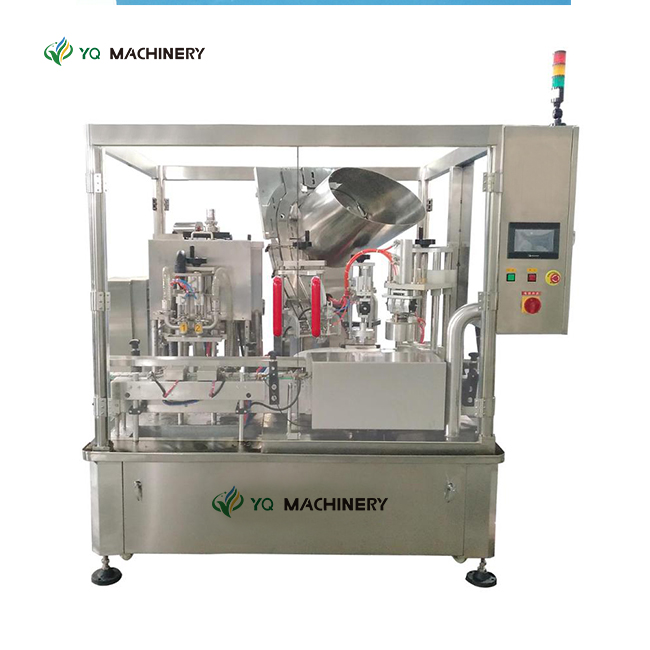

This machine integrates automatic quantitative filling and vacuum capping, and it covers a small footprint, has high degree of automation, simple to operate and easy to maintain;
For this machine PLC with man-machine interface (touching screen) control was adopted, and for the main electrical and pneumatic components we choose domestic Well-known brands to ensure stable performance.
In this machine the parts and pipes that contact the material are made of grade SUS 304 stainless steel and food grade plastics. Connected, easy to take apart and wash, in line with food hygiene requirements.
It is very intuitive and convenient as when to adjust the filling volume only needs to change parameters on the touching screen.
The encoder is used to control the movement of the piston for measurement, and the filling accuracy is high. The filling head is provided with a drip-proof device to ensure that the filling does not leak;
The use of suction lid cover, reverse rotation pre-rotation, sealing vacuum capping technology, is to ensure that the cover is accurate and the capping pass rate is high.
A closed-chamber vacuum pump is used to vacuum and then screw caps, Which ensures high vacuum levels;
Capping torque and vacuum degree can be set according to requirements.
With a small number of parts replacing, vacuum caps can be suitable for different sizes of bottles.
Technical Parameters:
Power supply: 380V/60Hz
Power consumption: 3.5KW
Air source pressure: 0.6-0.8Mpa
Product applicable: lubricant oils and so on
Filling range: 250-1000ml, adjustable
Filling precision: ≤±1 %
Filling head: 20
Capping head: 8
Production capacity: 6000bot/h(when filling 1000ml)
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
