Introduction:
The labeling machine adopts mature technology PLC control system, operation is stable and high-speed. It using touch-screen control operating system, simple, practical, efficient. Fix position Labeling machine synchronization chain mechanism ensure labeling smooth and precise calibration of labels, transparent sticker labeling without foam,adhesive sticker labeling without wrinkle.
This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc industries.
Features:
1. Adopt mature technology PLC control system, stable and high-speed operation
2. Touch-screen man-machine interface operating , simple and efficient
3. High-power import servo motor, labeling fast and accurately
4. Upgrade version of the standard station design, but also suitable for conical bottles
5. Reciprocating cylinder positioning, label the product specified location accurately
6. The whole machine use S304 stainless steel and anodized senior aluminum alloy material, with high corrosion resistance and never rust
7. No bottle not labeling, automatic alarm when leakage label
8. For the transparent label no wrinkle and bubble
Indusry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy Chemical : shampoo, shower gel, moisturizing cream, perfume, liquid detergent

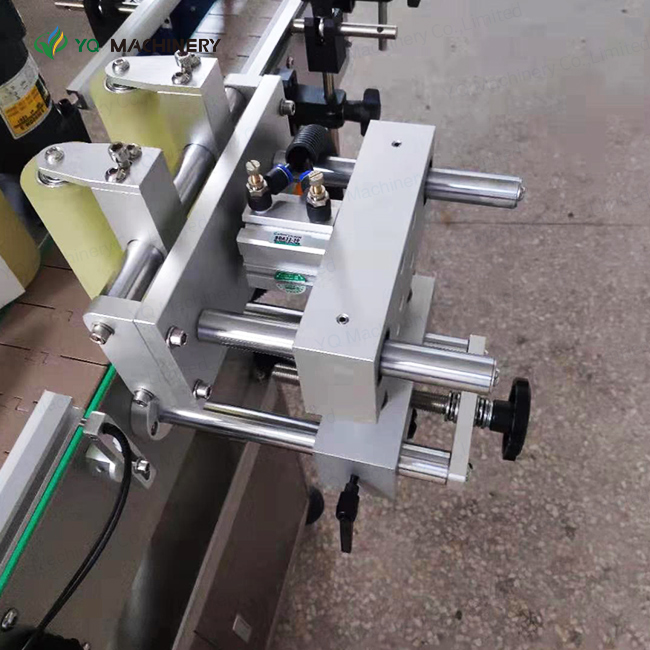

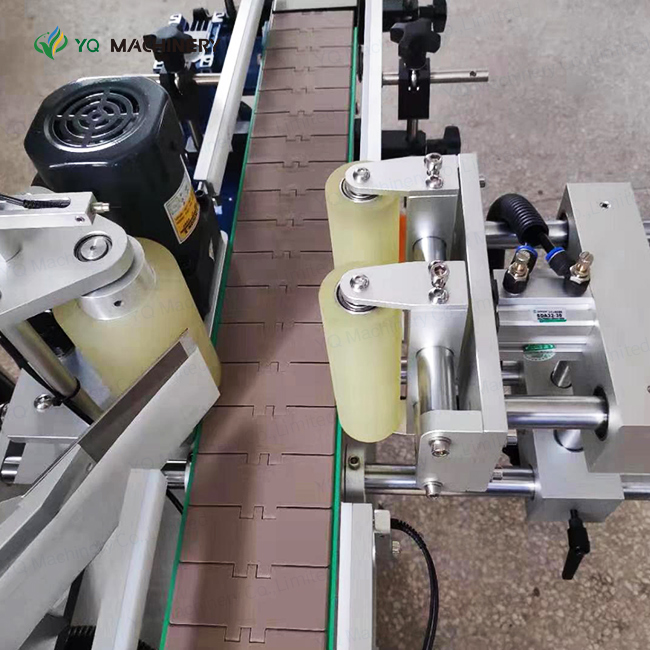

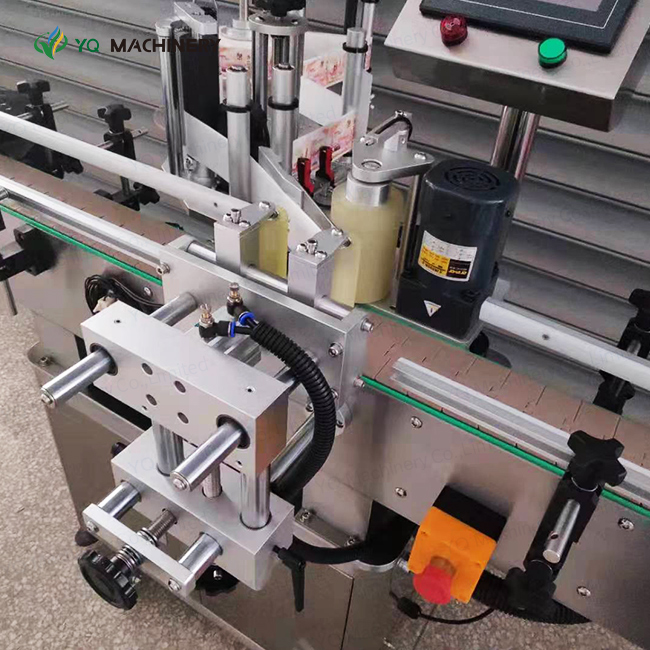

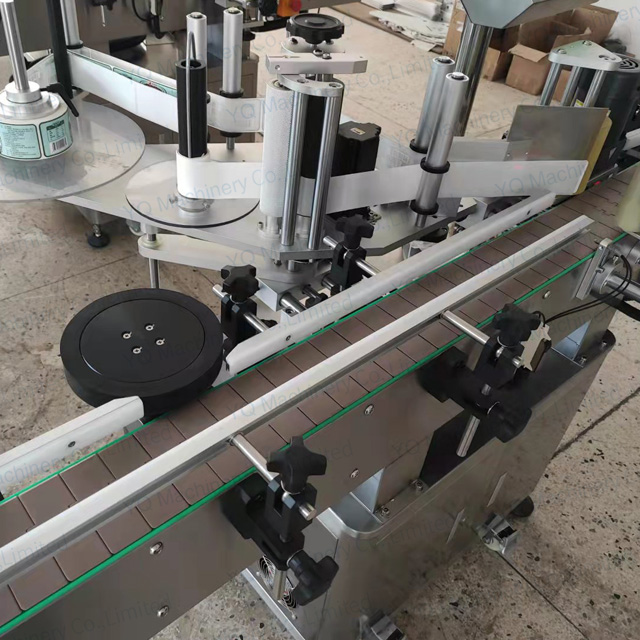

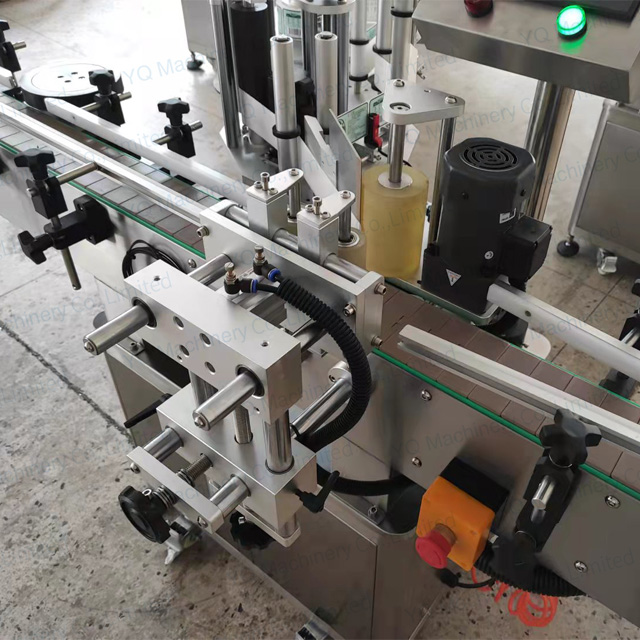

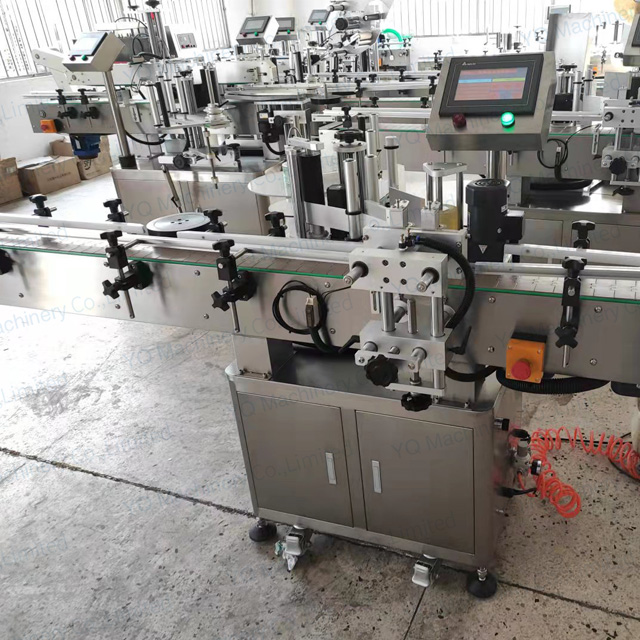

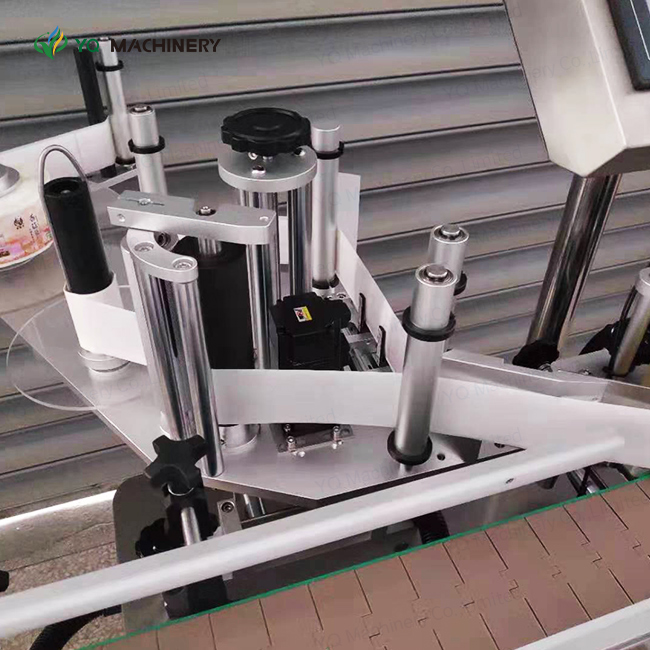

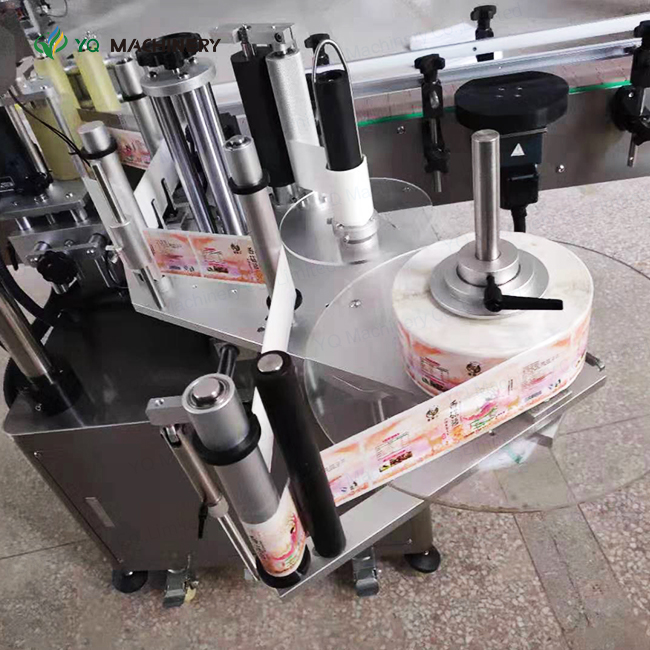

Detailed images
Technical parameters:
Labeling Accuracy | ± 1.0 mm |
Capacity (bottle/min) | 30-50 |
Labeling Speed (m/min) | ≤40 (m/min) |
Label Specifications | adhesive sticker |
The application of label | Width 15-110 mm length 15-200 mm (can be customized) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 500W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 1200(W) 1600(H)mm |
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
