YQFP-VL
YQ

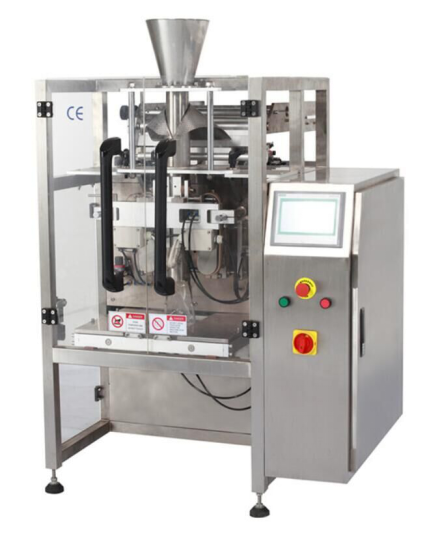

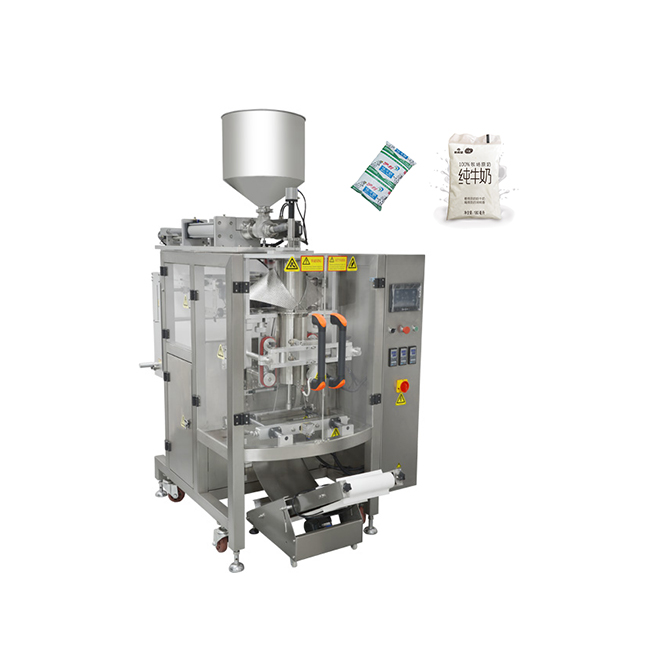

Vertical Packing Machine
The machine can combine with weighing system, such as :
1.multi-head weigher device (granule)
2.measuring cups(granule)
3.auger filler device(powder)
4.piston filling device(liquid,paste)
5.feeding conveyor device
The machine suitable to use in packing many kinds material which the shape is powder ,liquid , granule, bar, roll ,slice .such as :rice sugar, chocolate, nuts, potato chips, shrimp, dumplings, candy, flour, milk powder, fruit jam ,Shampoo ,shower gel ,skin lotion, small wares etc.
Specification:
Type | 420Model |
Bag length | 80-300mm(L) |
Bag width | 50-200mm(W) |
Max width of roll film | 420mm |
Packing speed | 5-60bags/min |
Measuring range | 150-1200ml |
Air consumption | 0.65mpa |
Gas consumption | 0.3m³/min |
Power voltage | 220V |
Power | 2.2KW |
Dimension | (L)1320mm×(W)950mm×(H)1360mm |
weight of machine | 540Kg |

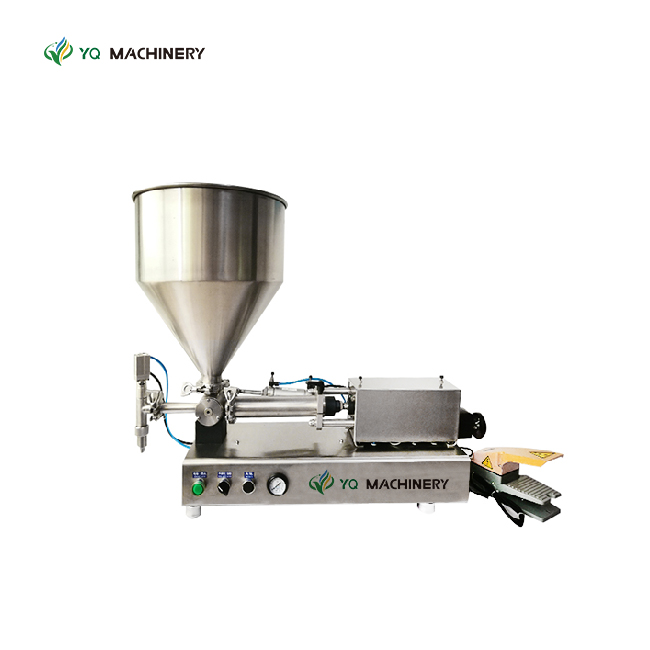

piston filling device
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .

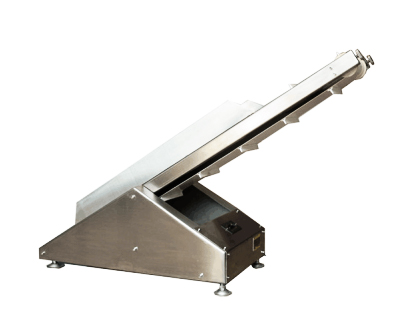

Product conveyor device
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
