Introduction:
YQ machinery has a wide range of systems and models of bottle unscrambler machines with different speeds that can be adapted to the different production needs. The bottle unscrambler system can work efficiently with packages of very different volumes, from small dimensions of 10ml to large packages of more than 1L, at a wide range of speeds.
High Speed Automatic Bottle Unscramblers effectively automate packaging production lines affording increased efficiency, savings and productivity. Savings are realized through effective use of personnel and associated costs over automatic unscrambler operations.
High Speed bottle unscramblers are designed for quick changeovers and durability resulting in less downtime. High-Speed bottle unscramblers can be upgraded with the ability to change production lines without buying new machinery or training new personnel.

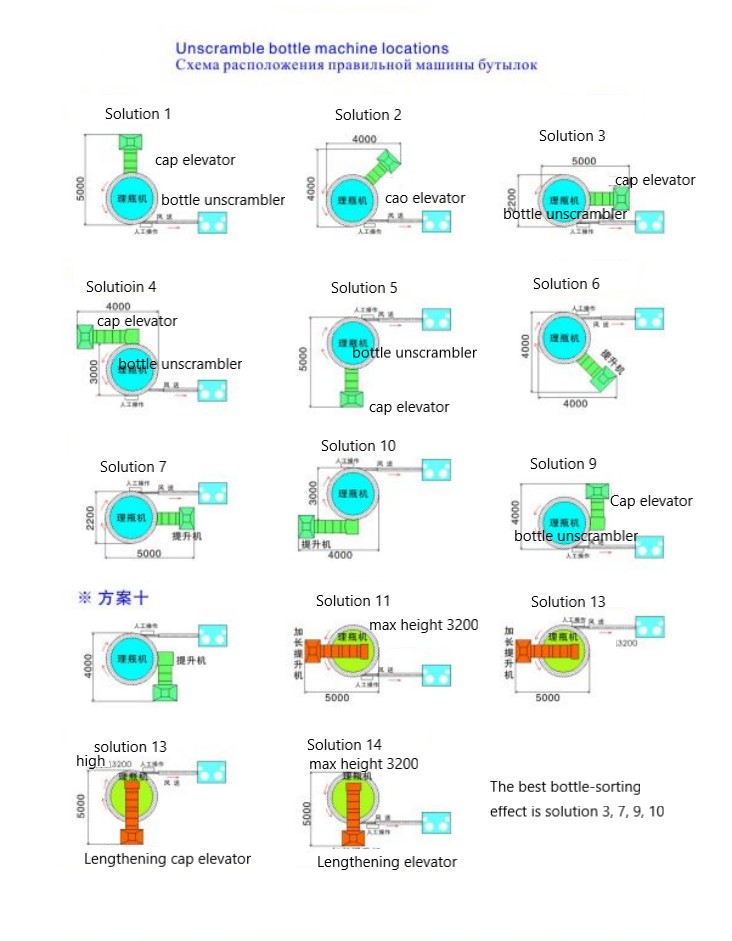

Layout:
Advantage:
a. No compressed air, the first in the same industry, energy saving and emission reduction, reducing the secondary pollution of bottles!
b. Advanced functions, simple operation and compact structure, the whole bottle unscramble machine adopts the mature PLC control system, which makes the equipment run stably and at high speed.
c. The bottle unscrambler machine can adjust for different size and shape automatically, which is convenient and fast, and has strong compatibility.
d. There are a number of equipment patents, and a position indicator is installed according to the bottle shape, which can be adjusted according to the bottle shape, which is unique in China.
e. The operating system adopts touch screen control, which is easy to operate, practical and efficient
f. The body is made of stainless steel to ensure that the bottle is clean and pollution-free
g. Imported low-voltage electrical components with stable performance and extremely low failure rate.
h. It has the functions of stopping the bottle when the bottle is stuck, and alarming when the equipment is abnormal.
i. When connected in use, it has an alarm function of air supply and bottle blocking, and it will start automatically after processing
j. Compared with the traditional bottle unscrambler, the volume is small and the speed is fast.
k. Wide range of use, multi-purpose and strong adaptability!
l. The corresponding position of the hoist changes according to the site, which greatly adapts to the production site
m. The connection and docking are convenient. After the bottle is released, it can be directly connected by air or by conveying.

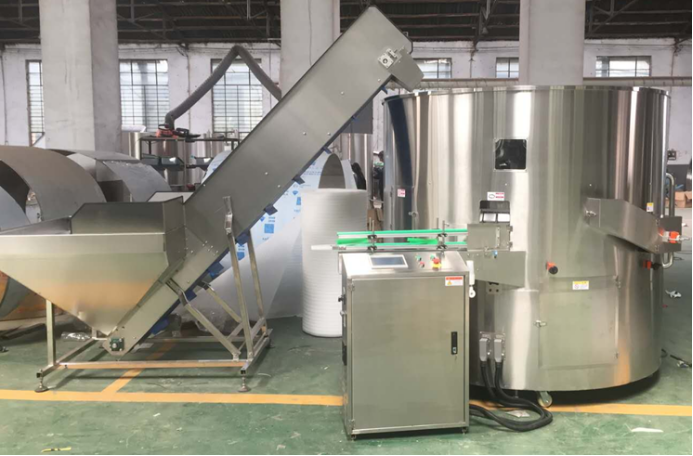

This Bottle Orienter machine is a high speed automatic bottle unscrambler.The bottle unscrambler is able to unscramble and orient a wide variety of bottles shapes and sizes. The model also features a bottle inversion stage which can be used for air rinsing the inside of each bottle. The bottle unscrambler is best suited for mid level to large companies seeking improvement in automated packaging processes.
Advantage:
A.The bottom of the bottle holder can be adjusted to adapt to a variety of bottle types

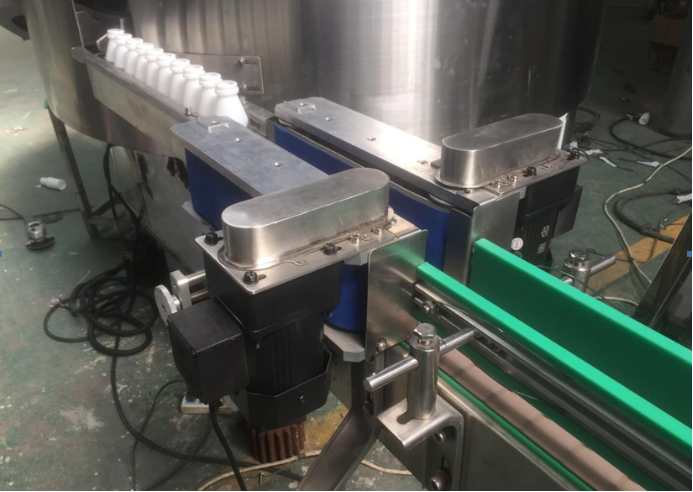

B.Flip the nylon guide on the bottle mouth to reduce bottle scratches
C.The digital display for flip bottle baffle makes it easier to change and adjust for different sizes
D. The bottle brush is made of imported materials and is durable.
Technical Parameter:
Model | YQBS-300 |
Main machine dimension | Diameter 2.2m*height2m |
Cap elevator dimension | H 2.5m*W1.2m*L3m (can be customized) |
Capacity | 18000bottle/min |
Air pressure | No need |
Air consumption | 0 |
Bottle application | It depends on clients' bottle |
Power | 2.5KW |
Net weight | 750kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
