Introduction:

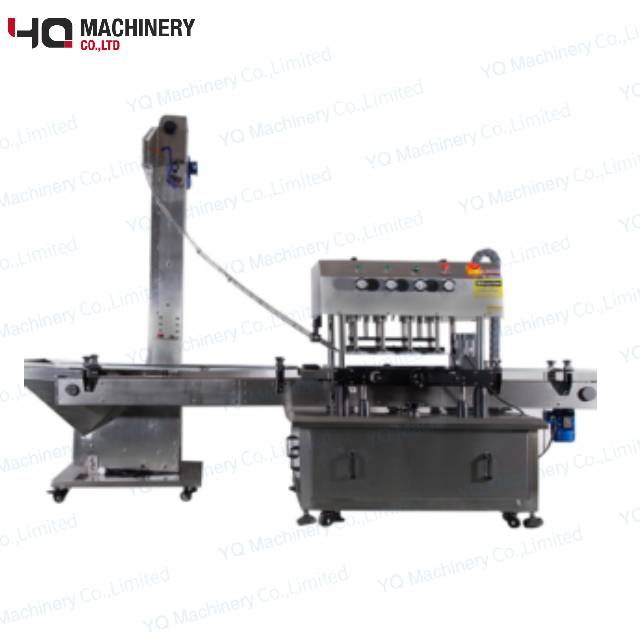

Our Inline Capper for liquid packaging production line is flexible, durable.The inline capping machine can work with most containers and caps including flat caps, sport caps, metal lids and many others. It’s built on a heavy duty, stainless steel frame to provide durability in almost any packaging environment. The modular design lets you start with just a cap closing and easily add capabilities when you need them.
Features:
· stainless steel frame construction
· Bulk Cap sorting equipment - cap elevator
· Cap chute
· Six or Eight adjustable tightening spindles (3 or 4 sets) with locking knobs
· Adjustable gripper belts
· Power height adjustment
· Stainless steel face panel and lower base for easy cleanup
· Tool free changeover
Technical Parameter
Power supply | AC220V / 50HZ,60HZ |
Power | 1.5KW |
Cap Diameter | 10-100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 650kg |

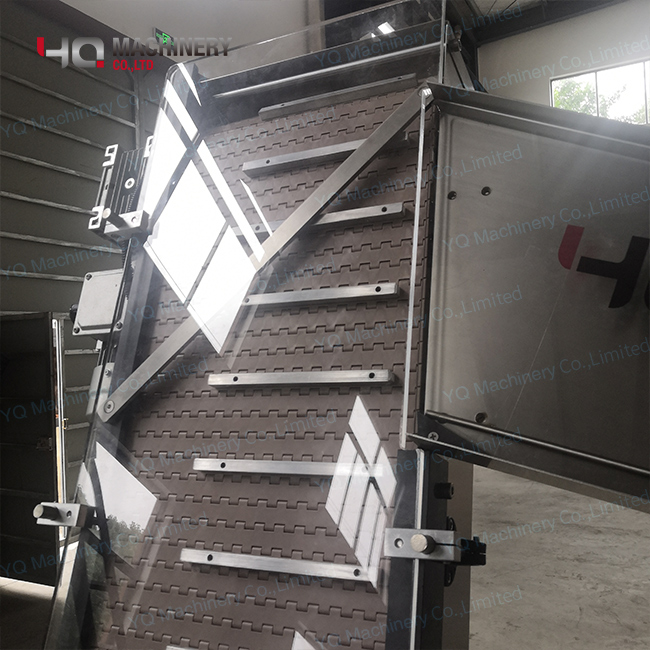

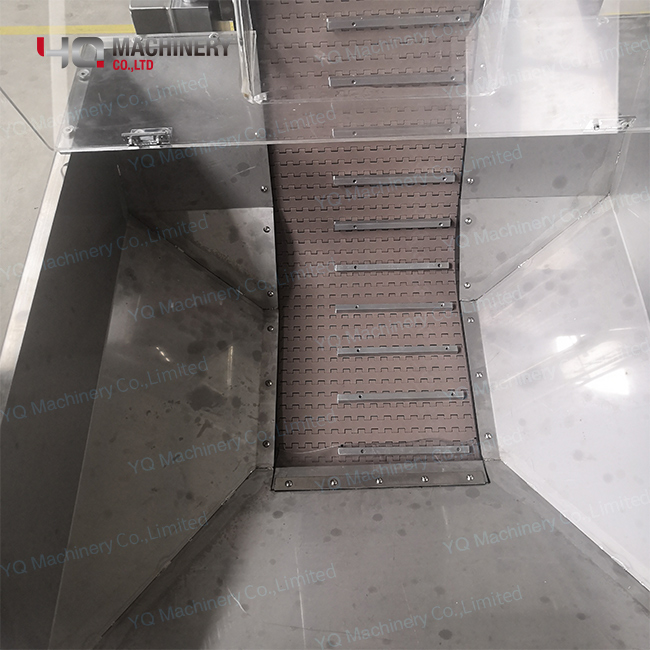

.Bulk Cap Feeding Elevator
Frame
All Stainless Steel Construction to meet the GMP Standard
Technical Parameters:
Hopper capacity | 100L |
Motor driver | 200W |
Production Capacity | 100L, 2000~4000pcs caps |
Dimensions & Weight | Machine dimension (L x W x H): 1500 x 700 x 1800mm |
Variable Speed Control for motor | |
Production Capacity Speed can be adjusted. | |
Main Machine weight | 120kg |
Power Source | AC220V, 50Hz, |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Introduction:
Our Inline Capper for liquid packaging production line is flexible, durable.The inline capping machine can work with most containers and caps including flat caps, sport caps, metal lids and many others. It’s built on a heavy duty, stainless steel frame to provide durability in almost any packaging environment. The modular design lets you start with just a cap closing and easily add capabilities when you need them.
Features:
· stainless steel frame construction
· Bulk Cap sorting equipment - cap elevator
· Cap chute
· Six or Eight adjustable tightening spindles (3 or 4 sets) with locking knobs
· Adjustable gripper belts
· Power height adjustment
· Stainless steel face panel and lower base for easy cleanup
· Tool free changeover
Technical Parameter
Power supply | AC220V / 50HZ,60HZ |
Power | 1.5KW |
Cap Diameter | 10-100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 650kg |
.Bulk Cap Feeding Elevator
Frame
All Stainless Steel Construction to meet the GMP Standard
Technical Parameters:
Hopper capacity | 100L |
Motor driver | 200W |
Production Capacity | 100L, 2000~4000pcs caps |
Dimensions & Weight | Machine dimension (L x W x H): 1500 x 700 x 1800mm |
Variable Speed Control for motor | |
Production Capacity Speed can be adjusted. | |
Main Machine weight | 120kg |
Power Source | AC220V, 50Hz, |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
