Introduction:

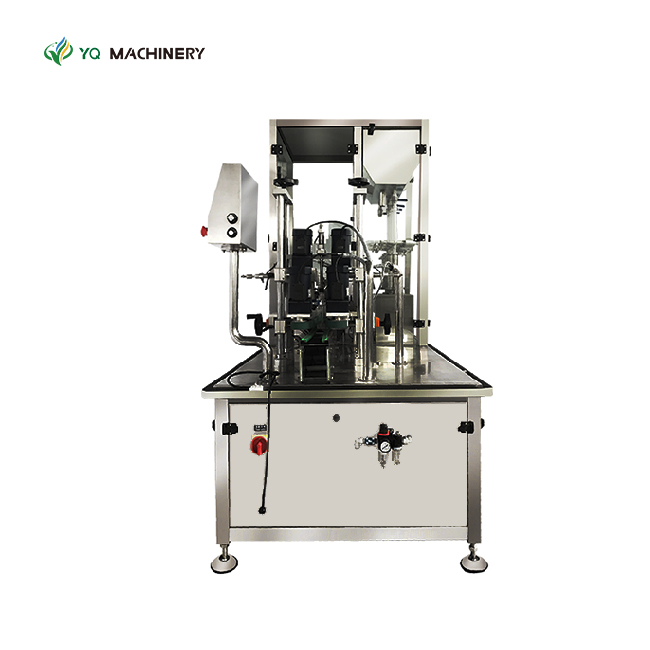

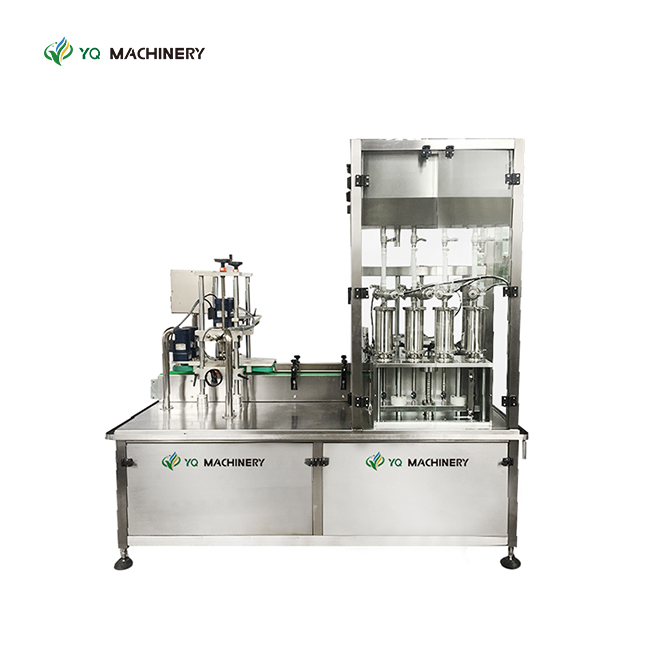

The automatic filling and capping machine is designed for a wide range of bottles, providing stable and balanced transport for various sizes and height bottles. The filling station has multiple filling nozzles for increased productivity.
Features:
1. The filling volume can be adjustable, depending on the bottle capacity and the diameter of the bottle mouth.
2. Use PLC and touch screen control system, famous brand electronics.
3. Memory function makes it easy to save and load parameter settings, simple product conversion.

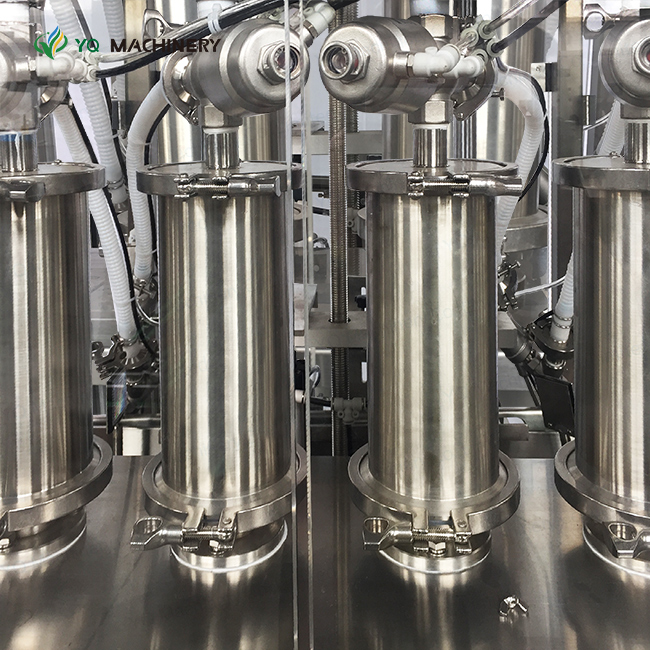

4. The filling nozzle is made of 304 or 316 stainless steel and equipped with a special ball valve to prevent liquid dripping.
5. The machine have no-cap and no-bottle reminder and we can monitor the production on time.
6. Replaceable filler head.
Indusry Applications:
Technical Parameters:
Filling volume | 50-1000ml (can be customized) |
Production capacity | 60 bottles/min ( Water as medium) |
Filling accuracy | ≤±1% |
Capping rate | ≥99% |
Air supply | 1.5m3/h 0.4-0.7 MPA |
Voltage | 1Ph. 220V, 50Hz |
Power supply | 1.8KW |
Machine net weight | 750kg |
Machine dimension | 2200x1500x1900mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
