Introduction:

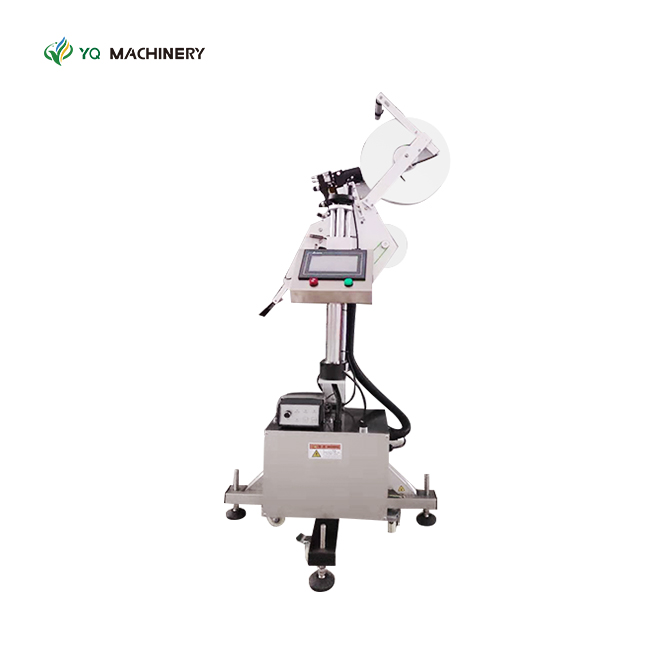

On line labeling applicator ,Can be related to the production line, the flow of products, on the plane, curved labeling,implementing online marking, realize supporting to spurt the code conveyor belt, the flow through the object labeling.
Feature:
1. Applicable to the food, cosmetic, medicine, stationery, and other industries of all kinds of things on the plane labeling or adhesive sticker.
2. Wide application range, can meet the product width 30mm ~ 200mm products plane labeling and adhesive sticker, replacing the cladding standard mechanism can satisfy the uneven surface labeling;
3. Strong and durable, with three lever adjustment mechanism, make full use of the stability of the triangle, the machine solid and durable; simple adjustment, conversion between the different products become simple, time-saving;
4. Intelligent control, automatic photoelectric tracking, have nothing without labeling, without label automatic detection of no standard automatic calibration and label, prevent leakage stickers and label waste;
Main technical parameters:
Labeling Accuracy | ±1mm |
Labeling Speed | 40-150pcs/min |
Applicable Dimensions | Depends on the pipeline delivery parameter |
Applicable Labe Size | Length:6mm-250mm |
Width:6mm-160mm | |
Power Supply | 220V/50HZ |
Weight | 70KG |
Machine Size(LxWxH) | About 1100mm*700mm*1450mm |
Delivery Time | 25 Days |
Type | Manufacture, Factory,Suppier |
Packaging | Wooden box |
Shipping Method | Sea.Air and Express |
Payment Term | L/C,T/T,Money Graml etc |
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
