YQL-150
YQ

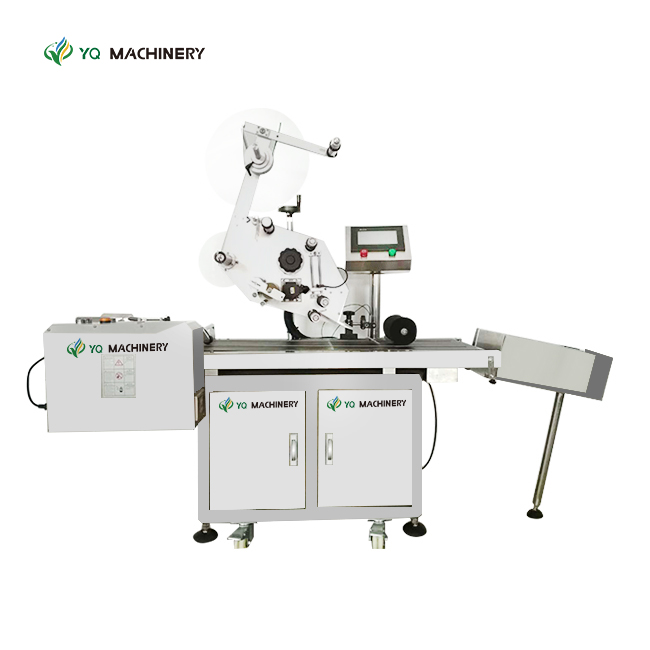

Introduction:
Flat bag labeling machine are suitable for bags of almost any size and shape, including bags from small to large, very high and wide.It effectively prevents the bag from tilting and wrinkled, ensuring that each bag can be precisely labeled.
Features:
1. Adopt imported electromagnetic clutch with best accuracy.
2. Auto Label Calibration with Fixed Product Sensors
3. The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
4. Adopt famous factory electric motor to ensure high load and long period operation.
5. All parts and standard components are carefully made of stainless steel.
6. With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
7. Imported label inspection optical coupler can ensure high precision.
Industry Applications:
Bag: paper bag, plastic bag, vacuum bag, edge bags (such as zipper bags), standing bags,
Bottle: vial, flat bottle, boxes or other flat items
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
Main technical parameters:
Production(bottle/min) | 30-150 |
Driving Mode | Servo motor |
Conveyor speed | ≤40 (m/min) |
Label Specification | adhesive sticker,transparent or opaque label(can be customized) |
The application of label | Height 20-70mm Length 25-120mm (can be customized) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 500W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2200(L) 900(W) 1600(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
