YQSF-4
YQ
Video 2
Introduction:
YQ machinery can offer the syringe filling and assembly machines which are designed to improve the efficiency of syringe filling production. Automatic syringe filling machines allow for minimal operator involvement along with high rates of production syringe filling machines can accommodate both high and low viscosity liquids, as well as other difficult to handle materials.
Syringe Filler can be preprogrammed for various syringe formats and the programmable PLC allows you to easily select your specific fill pattern.

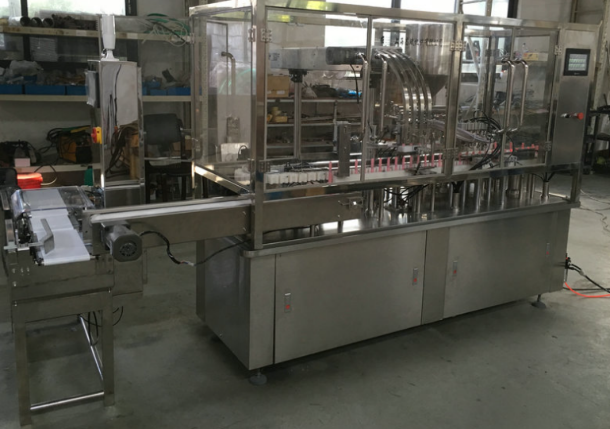

The syringe filling line is fully automatic to do delivery of syringes to the filling station, syringe rectification, filling, capping and release. It is an innovative way to increase shelf life for otherwise insufficiently stable dosage forms.

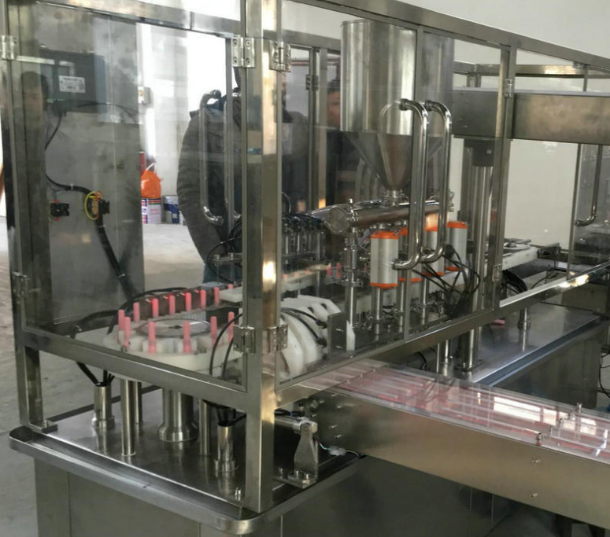

Syringe Filler is a compact rotary machine used for filling of syringes from5-100ml. with an output up to 80 upm. The syringe filling and closing equipment is used for automatic and individual processing of syringes.
The parameters are:
A.Dosing volume
B.Kinematics of the filling system
C.Closing torque in screwing plunger rods
D.Adjustment of the automatic feeders
E.Output Production Speed: up to 4800units per hour
F.Dosing volumes from 0.1 up to 100 ml
G.Insertion depth of the plungers
Feature:
syringe filling machine provides significantly higher performance than conventional transportation and factory automation systems.
It is most flexible system for filling and assembly. It is extremely clean and a favorite in the Pharma industry.
1.All direct contact parts with Filling & Stoppering processes made of SS316L material.(option)
2.All non-contact of SS304.
3.Suitable for pre fill syringes & bagged plungers.
4.Filling with high precision with complete Servo driven systems
5.Heavy Duty structured frame to avoid any vibrations.
6.SS Cabinet with Toughened Glass Doors fitted with high precision enclosure.
7.Security interlocks for all opening doors for machine stop system.
Technical parameters:
Applied syringes range: | Plastic syringes 1-100ml |
Filling nozzles | 4 nozzle |
Production capacity | 60-80syringes/minute |
Power supply | 220V/380V;1/3P; 50/60HZ; 3.5KW(can be customized) |
Filling accuracy | + / - 1% piston pump; ceramic pump(up to filling range and product) |
Machine dimension | 2000x1500x2000 (mm) |
Machine weight | 650Kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
