YQC-80
YQ
Features:

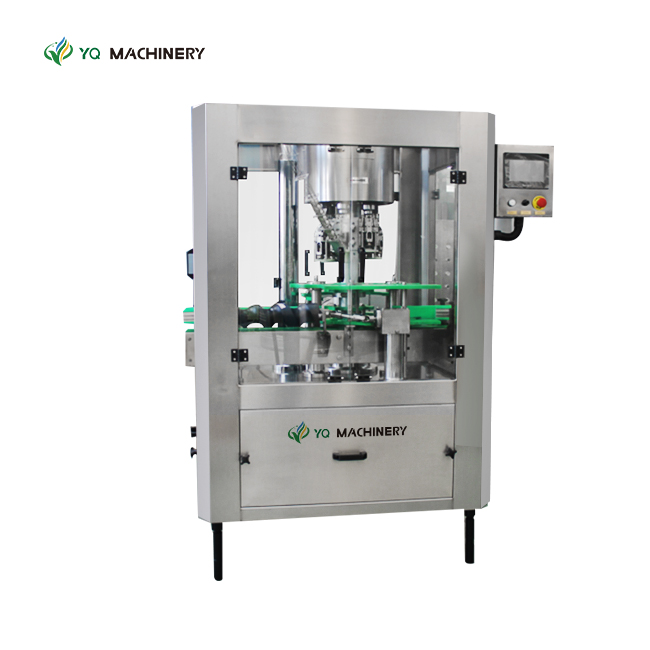

1.This is rotary capping machine and can support inner stopper pressing after restructure;
2.Advanced HMI operating system,PLC control;
3.The machine has 8 capping heads for automatic cap unscrambling,placing,clinching and pressing;
4.It features easy operation,stable performance,fast production speed,high rate of conformance and good sealing between cap and bottle;
5.It is of the 304 stainless steel appearance structure.
Indusry Applications:
It is used for sealing and capping of non-threaded plastic caps for food industry such as soy sauce,vinegar,cooling wine and edible oil as well as daily use chemicals.
Technical Parameters:
Suitable bottle diameter | 60~90mm(can be customized) |
Bottle high | 150~300 mm customized) |
Capping speed | 60-100PM(it depends on product size) |
Suitable bottle | Round bottle |
Power specifications | 380v/220V 50/60hz 2.5kw |
Machine weight | 700kg |
Host Dimension | 2200*986*1925mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
