Specifications:
1.Easy operation, Easy printing.
2.High accuracy,high quality and high speed
3.Low price
Application:
Suitable for round objects.
Features:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
2. Equipment composition
Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ;
3. Equipment function characteristics
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |
How to adjust machine
Step 1
Step 2
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
Specifications:
1.Easy operation, Easy printing.
2.High accuracy,high quality and high speed
3.Low price
Application:
Suitable for round objects.
Features:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
2. Equipment composition
Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ;
3. Equipment function characteristics
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |

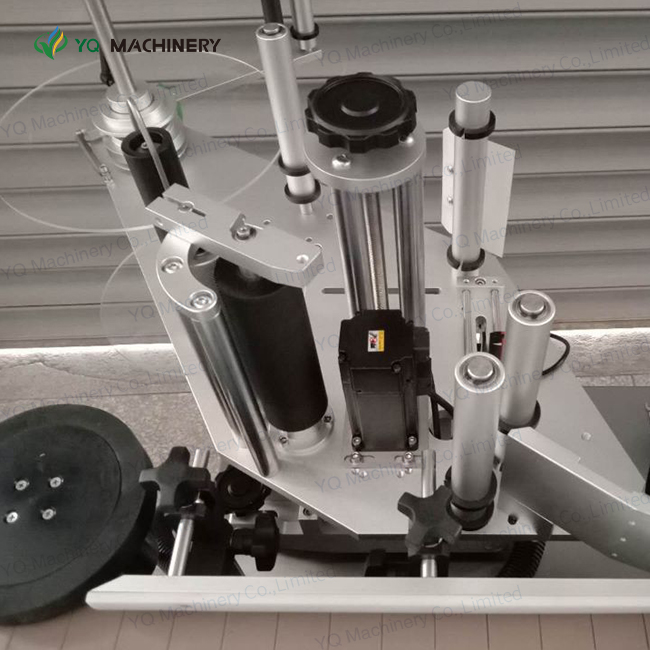

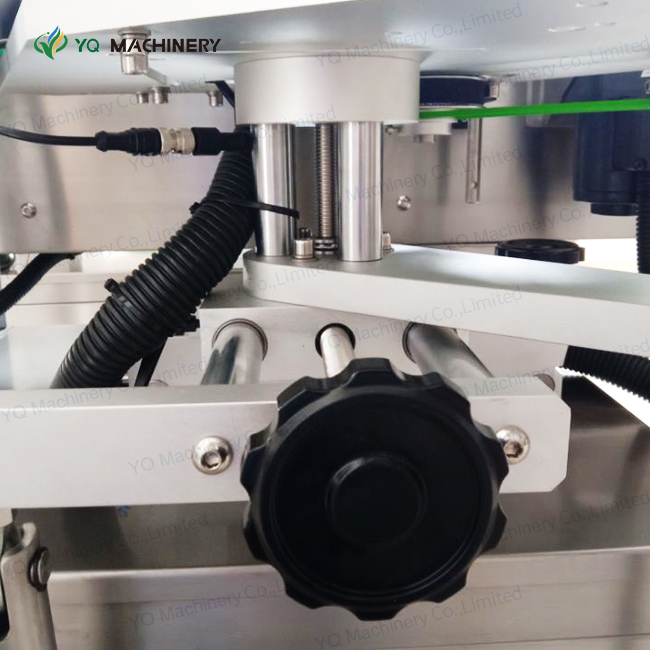

How to adjust machine
