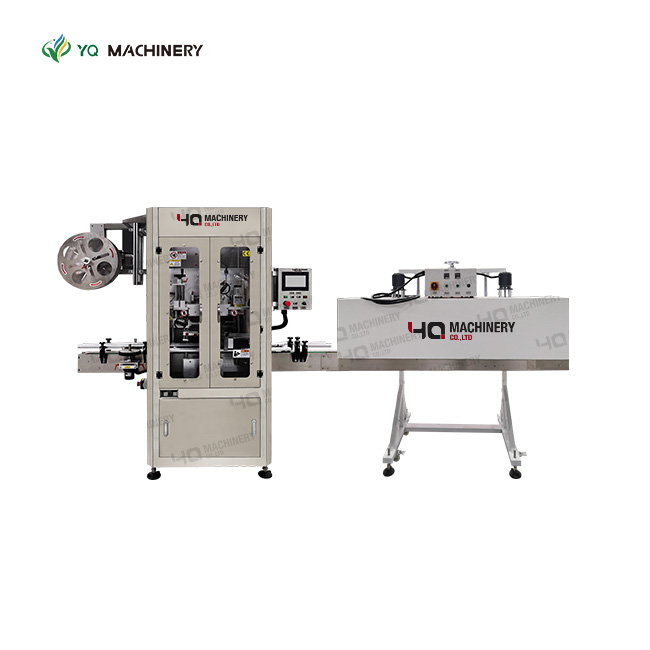

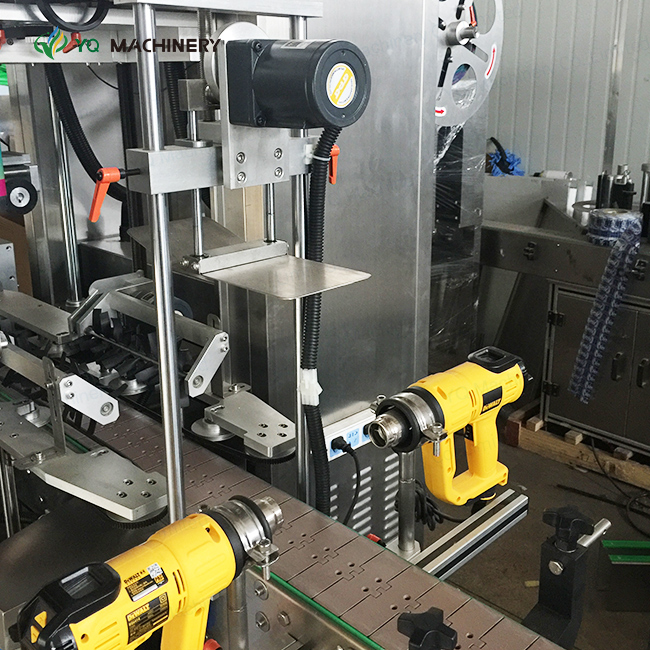

Description:
Synchronized transmission,any change of transmission belt will be finished quickly.Compared to the type of traditional multilayer whose change and maintain need more than six hours ,it’s maintenance is easy and maintain is simple ,so it doesn’t influence production.
Unit cutter head plane design in China which apply to the container of ∮40mm—∮70mm.you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
Single shrinking label feed plane ,rensonal height which is convenient to fix the label;micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenient,besides,the cutting place is absolutely exact .
Label feeding equipment:driving synchronized tensility control the supply of label ,the supply ability is 90meters per min,volume label supply plane is ∮500mm,the internal diameter of paper tube will be 4’ ,8’,10’ .the configuration of label feeding is stable tensility which enable the exact length of label and the stable ,quick supply of label.The center pillar apply step by step shoot label structure and the speed is 250B per min for 100mm label.

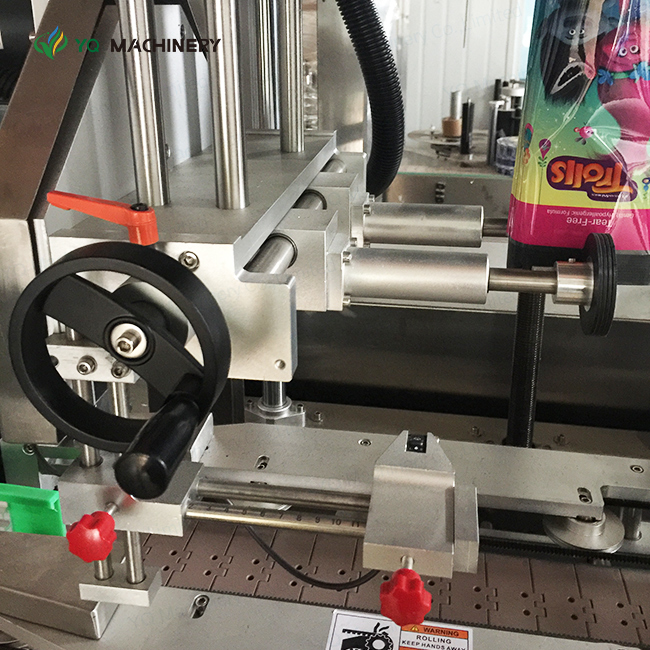

The newly designed cutter head use step by servo motor driving which speed is high ,action is exact,the cut is in order and the shrinking is beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.
Main technical parameters :
Material | SS304 |
Voltage | 220VAC, 50/60HZ, 1Phase(Can be customized) |
Power | Main Power 1KW |
Speed | 250bpm (Base on 40mm film length) |
Bottle Diameter | Ψ20mm~100mm(Can be customized) |
Bottle Shape | Round, Square, Oval, Curves, etc. |
Bottle Material | Glass, Metal, Plastic |
Film Material | PVC, PET, OPS |
Film Thickness | 0.045mm |
Film Roll Inner Core | 76cm(3inch) |
Film Length | 22mm~200mm(can be customized) |
Bottle Height | 35~200mm |
Dimensions | 2000 mm(H) x 1150 mm(W) x 1850 mm(D) |
Net Weight | Approx 400kgs |
How to adjust the sleeve labeling machine
Video 1
Video 2

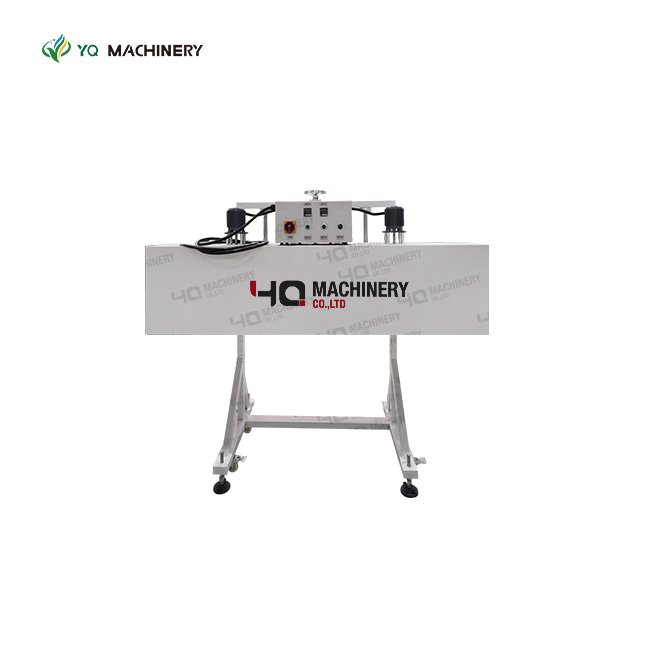

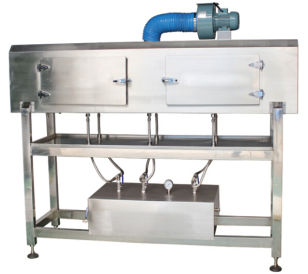

Steam Shrink Tunnel
1.In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style both steam and electricity shrinking oven is easy to adjust and maintain. It has an even shrinking .
2. The distribution of low-pressure steam drum and sqouting way of steam are uniform and designed with seamless tube.
3. The nozzle is divided to be adjustable three segments and the height , position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.
4 .The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also comply with the international safety standard.
5 .The stainless steel defrosting tray collects condense water.
6. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
Technical Parameters:
Input Power Supply of Blower | 3 380VAC 18KW |
Input Power Supply of Steam Generator | 380V/50HZ |
Working Pressure | 0.1Mpa |
Weight | 500kg |
Steam Consumption | 10-20Kg/h |
Size of Oven Body | L1800mm×W600mm×H450mm |
Transporting Speed | 0-35m/min |
Stream Generator
The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.
Technical Parameters:
Input Power Supply | 3 380V |
Input Power | 18KW |
Steam Pressure | 0.25-0.4Mpa |
Vapor Generation | 24kg/h; |
External Dimension | L600mm x W550mm x H1200mm |
Weight | 96Kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
