Availability: | |
---|---|
Quantity: | |
YQP-S
YQ
Description:

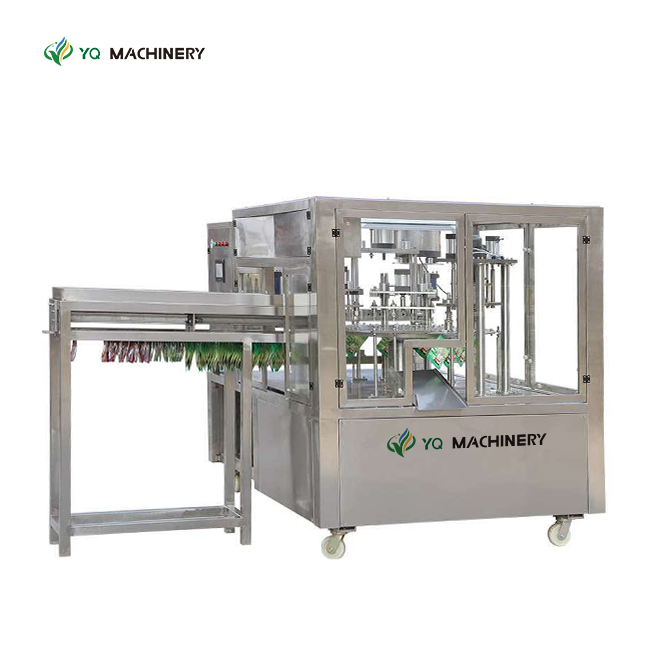

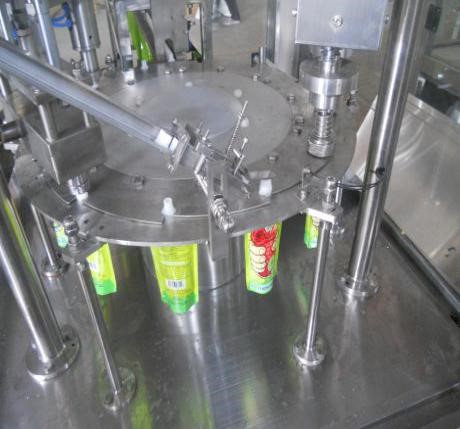

This pouch filling and sealing machine is designed especially for filling and capping spout pouch for juice, jelly, ketchup and so on. Rotary plate design makes it occupy a small area for installation.
Feature:

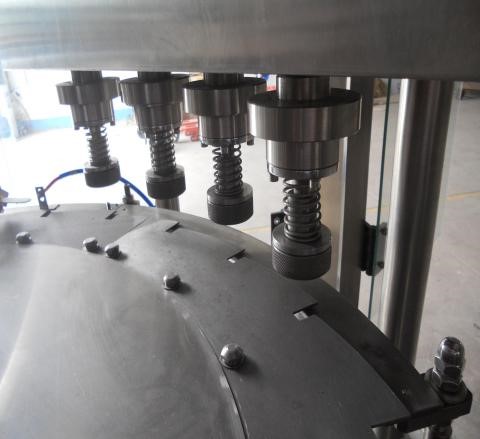

1. Process: Bag Feeding--Filling--Cap Feeding--Capping--Output
2. Easy to operate,adopt advanced PLC control system
3. It will stop automatically when there is no bag on the station
4. High filling precision
Technical Parameter:
Dimension | full auto stand up pouch filling capping machine |
Packaging speed | 2000 pcs/hour(200ML) |
Filling content | 100-500ml |
Power | 3-phase 4-line socket(380V 50HZ) can be customized. |
Electric Machinery Power | 1.0KW |
Heat up power | 1.5KW |
Air pressure | 0.5Mpa-0.7Mpa |
Max air consumption | 0.6m3/min |
Timing mode | Frequency inverter |
Machine dimension(L*W*H) | 2000x1300x2100mm |
Weight | 950KG |

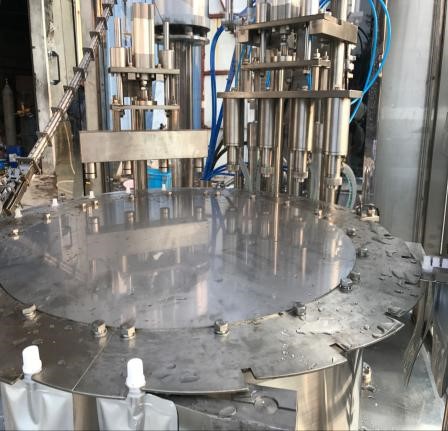

Piston Filler
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
Description:
This pouch filling and sealing machine is designed especially for filling and capping spout pouch for juice, jelly, ketchup and so on. Rotary plate design makes it occupy a small area for installation.
Feature:
1. Process: Bag Feeding--Filling--Cap Feeding--Capping--Output
2. Easy to operate,adopt advanced PLC control system
3. It will stop automatically when there is no bag on the station
4. High filling precision
Technical Parameter:
Dimension | full auto stand up pouch filling capping machine |
Packaging speed | 2000 pcs/hour(200ML) |
Filling content | 100-500ml |
Power | 3-phase 4-line socket(380V 50HZ) can be customized. |
Electric Machinery Power | 1.0KW |
Heat up power | 1.5KW |
Air pressure | 0.5Mpa-0.7Mpa |
Max air consumption | 0.6m3/min |
Timing mode | Frequency inverter |
Machine dimension(L*W*H) | 2000x1300x2100mm |
Weight | 950KG |
Piston Filler
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
