Application:
It can realize full cycle/half cycle labeling, circumferential positive back labeling, and the distance between positive and negative labels can be adjusted arbitrarily.
Circumferential location detection device can be optional to realize circumferential location labeling.
It can be equipped with color tape printer and ink-jet printer, which can print production batch number and other information at the same time to reduce packaging process and improve production efficiency.Widely used in food, cosmetics, chemical, pharmaceutical and other industries.
Main technical parameters:
labeling speed | ±0.5mm |
applicable product diameter (for round bottle) | 25-50 pcs/min |
applicable product and hight | Φ15mm~φ160mm |
applicable label size | length: 15mm~380mm bottom paper width:10mm~180mm |
label's drum inner radius | Φ76mm |
label's largest outer radius | Φ280mm |
Packing size | 1010*630*710mm |
whole machine size | 920mm*420mm*500mm |
applicable power supply | 220V/50HZ |
whole machine weght | 64Kg |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |

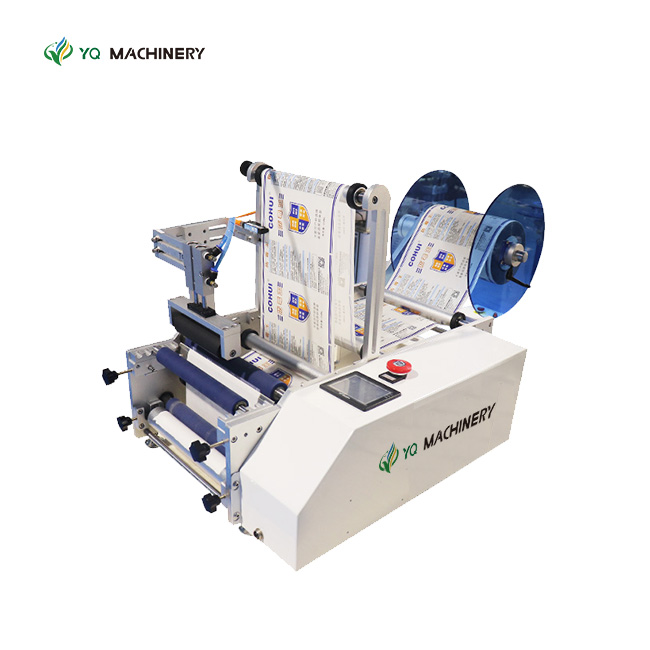

Labeling machine for round container with code printer
How to use machine
How to set transparent sensor
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
