Introduction:
It is a continuous motion cartoning machine, suitable for the packaging of blisters, bottles, vials, pillow packs, etc. The cartoning machine runs stable and provides easy changeover for different sizes of cartons. It can fold leaflets, open cartons, insert the products and leaflets into cartons(option), emboss, tuck-in, or hot-melt closures and automatically discharge cartons. The cartoning machine is equipped with a series of sensors and automatic protective devices to assure the cartoner machine runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.
Main units of this Cartoning Machine:
Gear Device: The gear drives the carton conveyor chain and conveyor chain running in continuous motion.
Carton Conveyor Chain: The carton conveyor chain is used to transfer opened cartons to every station, which can automatically complete the actions of inserting of products into cartons, embossing, closing of cartons, discharging of cartons.
Carton pick-up device: The carton pick-up with four sets of suction cups can suck the cartons from the carton magazine, open the carton, place it on the carton conveyor.
Leaflet Folding Device(OPTION): The leaflet folding device can make the leaflet fold one to four folds according to the customer’s demand. Inserter device:

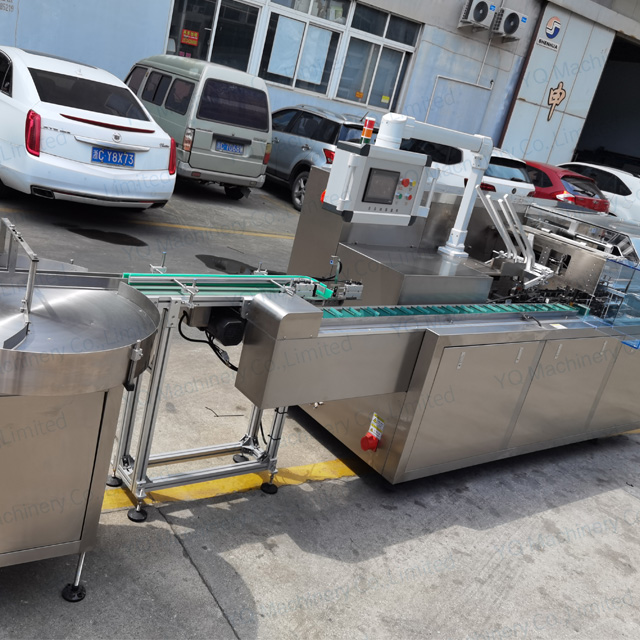

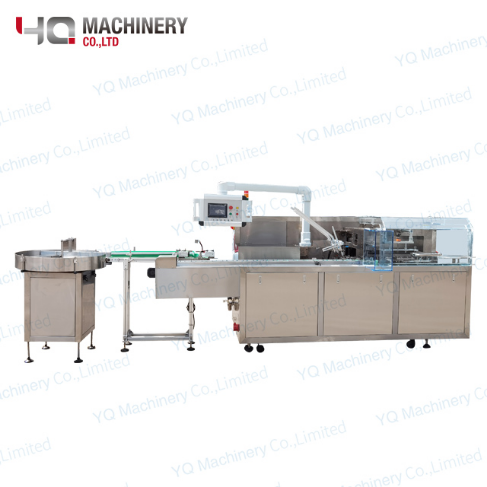

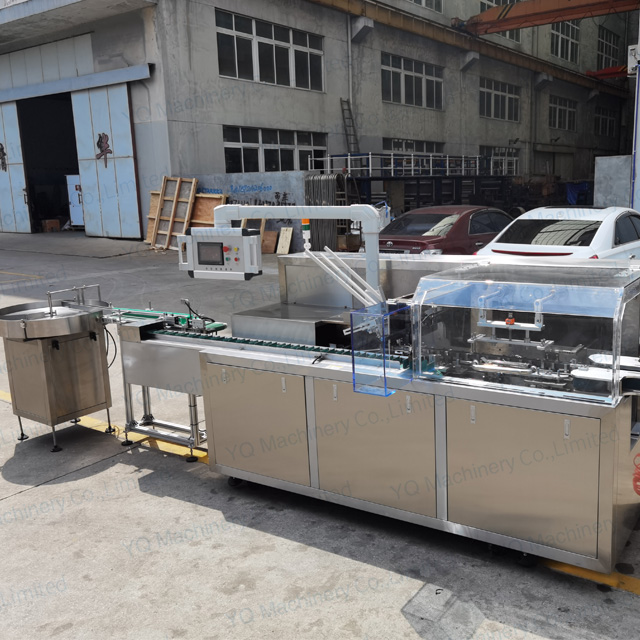

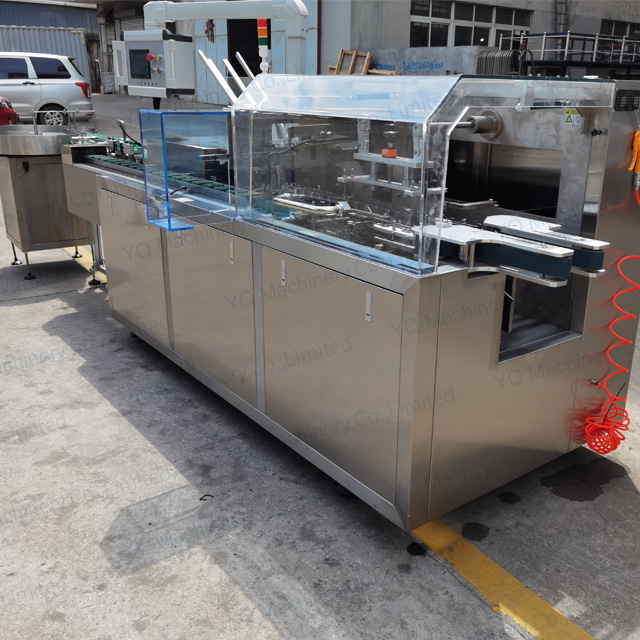

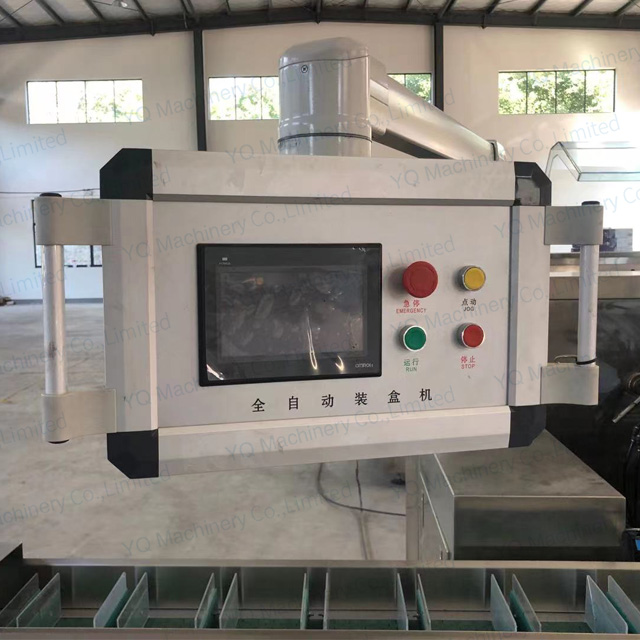

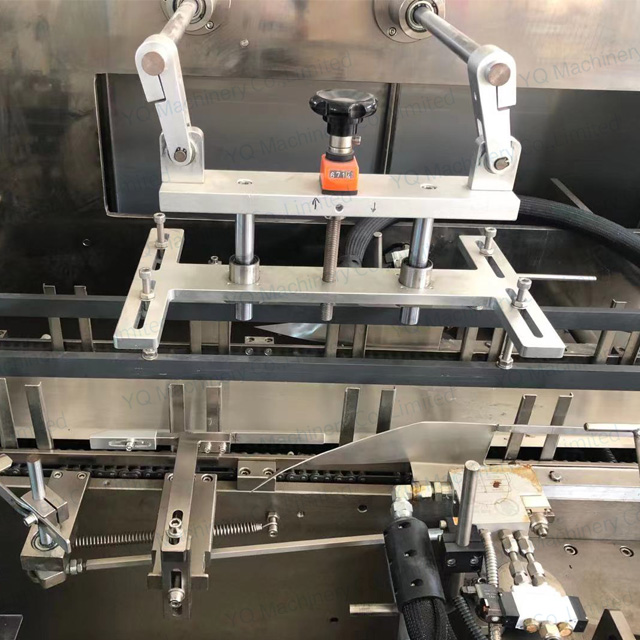

Detailed images:
Technical parameter
Capacity | 50-80 b/min |
Packing material | the max. size 200×120×70mm |
Box quality | 250-300 g/m2 |
Operation manual | max .size 260×180mm |
paper weight | 55-65g |
Volume of consumption | 20 M3/h(pressure 0.5-0.7MPa) |
Total power | 1.5KW |
Packing material | The max. size 200×120×70mm |
Electric power | 380V 50HZ |
Overall dimension | 3700×1350×1700mm |
Weight | 1200kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price
